1. Overview

In this article, we’ll discuss two common concepts in graph theory: Hamiltonian and Euler paths. We’ll start by presenting the general definition of both concepts and by showing some examples. We’ll also list some important properties of each concept.

Finally, we’ll present a high-level difference between the two concepts.

2. Definitions

Both Hamiltonian and Euler paths are used in graph theory for finding a path between two vertices. Let’s see how they differ.

2.1. Hamiltonian Path

A Hamiltonian path is a path that visits each vertex of the graph exactly once. A Hamiltonian path can exist both in a directed and undirected graph.

It’s important to discuss the definition of a path in this scope: It’s a sequence of edges and vertices in which all the vertices are distinct. The sequence of edges in a path can be finite as well as infinite.

So, if a path covers all the vertices of a given graph without repeating any vertex, then it’s a Hamiltonian path.

2.2. Euler Path

An Euler path is a walk where we must visit each edge only once, but we can revisit vertices. An Euler path can be found in a directed as well as in an undirected graph.

Let’s discuss the definition of a walk to complete the definition of the Euler path. A walk simply consists of a sequence of vertices and edges. Each vertex and edge can appear more than once in a walk. An Euler path restricts the walk by limiting each edge to appearing once.

So in short, if a walk covers all the edges of the graph exactly once, it is an Euler path.

3. Examples

3.1. Hamiltonian Path Example

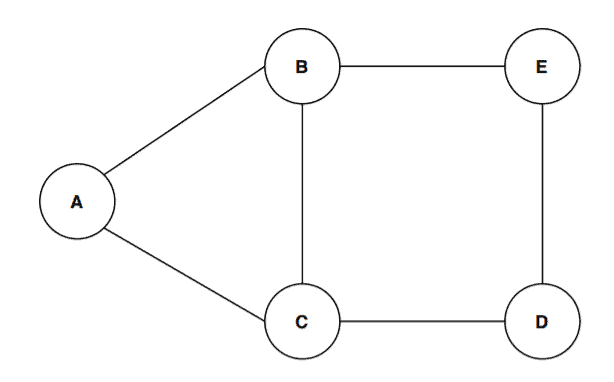

Let’s take some graphs and try to find out if they’ve got any Hamiltonian paths.

First, we’ll try empirically by taking a random path in G_1 above, say ABCDE . But, is it Hamiltonian?

Following the definition of a Hamiltonian path, our path ABCDE covers all the vertices of our graph without visiting any vertex more than once. Hence we can say that the path $\textbf{ABCDE}$ is a Hamiltonian path. Another example of a Hamiltonian path in this graph is ACBED .

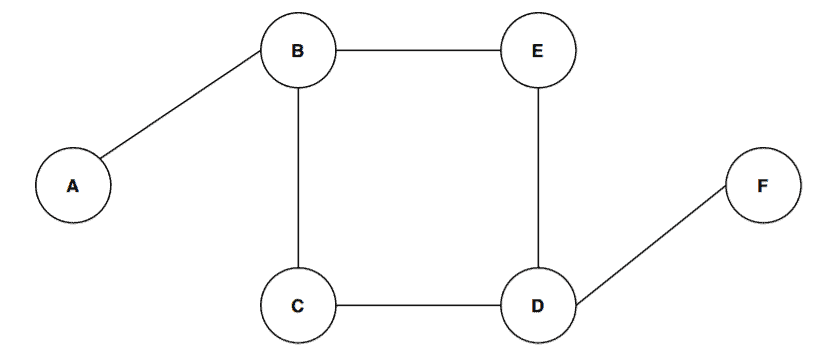

Let’s take another graph and call it G_2 :

Let’s try our method again and take the random path ABCDEDF . Is it Hamiltonian?

According to the definition, a path shouldn’t contain a vertex more than once. Here we can see the vertex is repeated twice. So the path $\textbf{ABCDEDF}$ is not a Hamiltonian path. In fact, there can’t be any Hamiltonian path for this graph.

3.2. Euler Path Example

Now, let’s try and do the same for Euler paths.

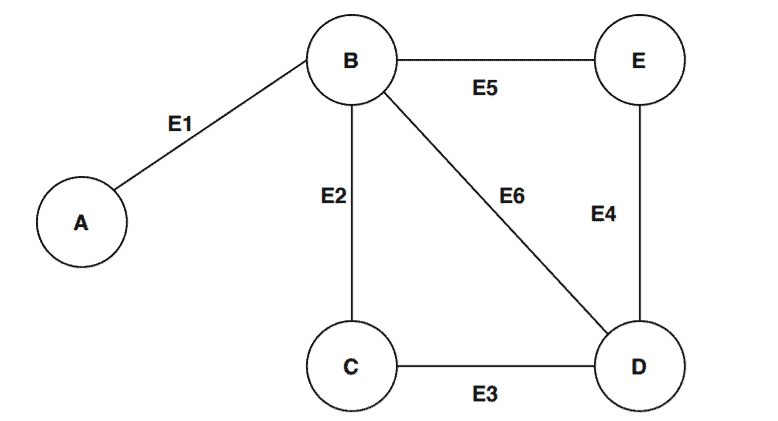

Let’s define a walk in the graph G_3 . Our randomly picked sample walk in G_3 is ABCDBED . Is it follows the Eluer path definition? Let’s find out.

The walk ABCDBED covers the edges $E1 \rightarrow E2 \rightarrow E3 \rightarrow E6 \rightarrow E5 \rightarrow E4$ . Now let’s see if our work satisfies the definition of an Euler path or not. As per the definition of an Euler path, a walk should cover all the edges without repeating any edge more than once. We can see our sample walk covers all the edges of the graph G_3 without repeating any edges.

Therefore we can conclude that the walk ABCDBED is an Euler path. Another example of an Euler path in G_3 is ABEDBCD .

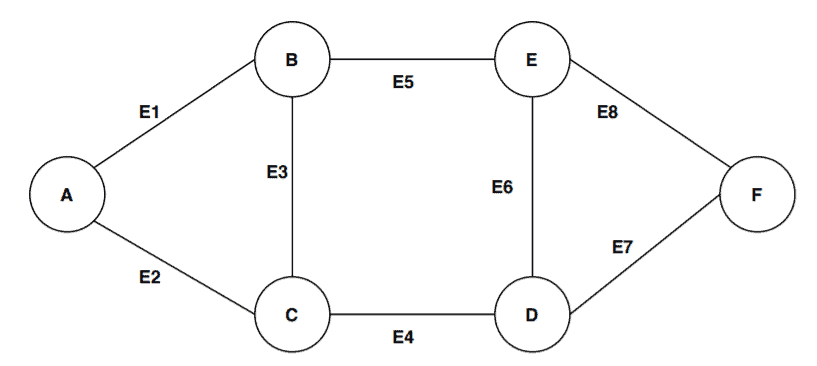

It’s time to consider a different graph:

Again, we’ll follow the same procedure. We’re picking a random walk ABCDEFDCABE of the graph G_4 . Let’s investigate whether our picked walk satisfies the Euker path definition.

The edges it covers are $E1 \rightarrow E3 \rightarrow E4 \rightarrow E6 \rightarrow E8 \rightarrow E7 \rightarrow E4 \rightarrow E2 \rightarrow E1 \rightarrow E5$ . The walk covers all the edges of the graph G_4 but there is repetition of the edges and which is against the definition of an Euler path.

Therefore, we can conclude that the walk $\textbf{ABCDEFDCABE}$ is not an Euler path. If we analyze the graph G_4 in detail, we’ll observe the graph G_4 can’t contain any Euler path. It is not possible to cover all the edges without repeating vertices in G_4 .

4. Properties

There are some interesting properties associated with Hamiltonian and Euler paths. Let’s explore them.

4.1. Hamiltonian Path Properties

A simple graph with $\textbf{N}$ vertices contains a Hamiltonian path if

The graph contains a pair of distinct non-adjacent vertices
For each such pair, (degrees of vertex pair) $\pmb{+}$ (length of the shortest path for that pair) ≥ $\textbf{N + 1}$

For a connected graph G(V, E) , a random pair of a distinct vertex is $(M, P) \in V$ . Now according to the property : $d(M) + d(P) + \delta (M, P) \geq N + 1$ .

Here, d(M) , d(P) denotes the degree of the vertex , and denotes the number of the vertex in . The other notation $\delta (M, P)$ is used to denote the shortest path between and in .

Let’s verify this property with the graph G_1 . by picking two distinct non-adjacent vertices A and D:

$d(A) + d(D) + \delta (A, D) = 2 + 2 +2 = 6$ .

This is greater than the total number of vertex here in G_1 . Thus this property holds for G_1 .

In the case of a Hamiltonian path, it always starts and ends in different vertices. This property can be derived from the definition. In graph G_1 , we showed that the path ACBED is a Hamiltonian path. It starts from the vertex and ends in . Hence, it follows the property.

4.2. Properties of Euler Path

If a graph has an Euler path, then the graph should have most two vertices with odd degrees.

In graph G_3 , the odd degree vertices are and with degree and . All other vertices are of even degree. Therefore, graph G_3 has an Euler path.

On the other hand, the graph G_4 has four odd degree vertices: B, C, D, E . Therefore, the graph G_4 can’t have an Euler path.

All the non-zero vertices in a graph that has an Euler must belong to a single connected component.

5. A High-Level Comparison

In this section, we’re going to summarise all the theory that we discussed regarding Hamiltonian and Euler path and let’s present in an organized table format:

Hamiltonian Path

Euler Path

Definition

Covers all the vertices of a graph exactly once. It can contain same edge multiple times.

Covers all the edges of a graph exactly once. It can contain same vertex multiple times.

Definition

A Hamiltonian path always starts and ends in different vertex.

An Euler path can start and end in the same vertex.

Property

Every pair of distinct non-adjacent vertex the addition of the sum of their degrees and the length of the shortest path for that pair is greater than or equals to the number of vertices.

The graph should have at most two odd degree vertices.

Application

Stripiﬁcation of triangle meshes in computer graphics. It can help to reduce the cost of communication. It can also help in organizing data.

It can be used to find optimal logic gate ordering in CMOS circuit, DNA sequence reconstructing etc.

6. Conclusion

In this article, we discussed Hamiltonian and Euler path in depth. We’ve presented a general definition followed by some examples to ensure the reader gets the fundamentals. Finally, we’ve gathered all the points we discussed and presented a high-level comparison between the two concepts.
