1. Overview

In this tutorial, we’ll discuss low-level and high-level design types in software engineering.

2. What Is High-Level Design?

An aerial view of a building shows its overall structure, residential floors, commercial spaces, and amenities and how they connect seamlessly. Similarly, a high-level design (HLD) is like the aerial view of a software system. It defines the overall architecture, major components, and how they interact. We can think of it as the blueprint that lays the foundation for our software architecture.

So, HLD is the outcome of an initial phase of the design process where architects, system designers, or project managers discuss the structure and components of a system at a high level. HLD shows the overall architecture and functionality of the system without delving into implementation details. To learn more about system architecture, check out our article on layered architectures.

Let’s dive into some key characteristics of HLD:

  • It specifies database design, systems, services, platforms, and relationships among modules
  • It contains a description of hardware, software interfaces, and also user interfaces
  • A solution architect creates it
  • It details the user’s typical process workflow, along with performance specifications
  • It describes significant limitations and trade-offs of the system

Just like architects focus on the budgets and timeline for their building along with a high-level design, in this phase, we weigh the costs and benefits of architectural design choices for our software. Though focusing on functionality and scalability is important, neglecting the financial and resource implications can result in inefficiencies and budget overruns later in the development cycle. For teams to make informed decisions that align with project goals and constraints, they must also consider these factors. This involves development time, maintenance complexity, infrastructure requirements, and potential scalability issues.

3. What Is Low-Level Design?

Moving inside the building, we dive into the exact layouts, materials, plumbing, electrical wiring, and more. Similarly, a low-level design (LLD) fleshes out the implementation details of every component specified in an HLD, such as class diagrams, algorithms, database schemas, and error-handling mechanisms.

In simple words, LLD is the next stage in the design process, where designers and developers translate the high-level design into detailed technical specifications.

Some key characteristics of LLD are:

  • It is created by the developer manager and designers
  • It involves the actual logic of all the system components
  • It includes a step-by-step plan for the system’s implementation
  • It works as a guide for developers during coding, ensuring that system functionalities are accurate and efficient

We can say that LLD delves into the technical specifics, translating the high-level design into detailed implementation plans:

4. HLD vs. LLD

So, we have two design types:

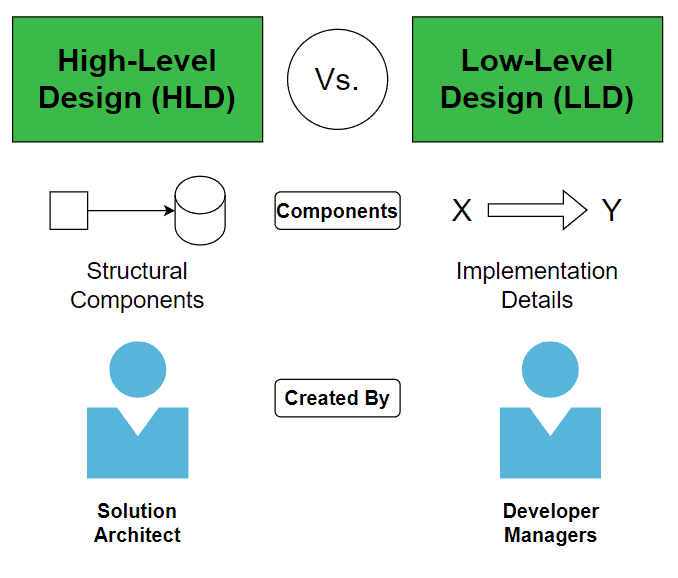

HLD-LLD

Let’s summarize their differences:

Aspect

Low-Level Design

High-Level Design

Focus

Detailed implementation specifics

Overall system architecture and design

Components covered

Individual components/modules

Major system components and their interactions

Design Artifacts

Class diagrams, data structures, algorithms, database schemas, error handling

Architecture diagrams, component diagrams, interface definitions, data flow diagrams

Input

High-Level Design (HLD)

Business requirements, constraints, and goals

Output

Code-level implementation

High-Level Design (HLD) plan

Time of implementation

After HLD, during the coding phase

Early in the software development lifecycle

Example decisions

Data structure choices, algorithm design, database normalization

Architectural style (e.g., microservices, monolith), technology stack, integration points

Also known as

Macro-level design

Micro-level design

Outcome

Review record, function design, and database design

Program specification and unit test plan

HLD sets the software system’s overarching architecture and functionality, providing a roadmap for development to fulfill the requirements, while LLD deals with the implementation aspects. Our article on requirements contains details on how to differentiate between functional and non-functional ones.

5. Conclusion

In this article, we explained low-level and high-level software designs. HLD provides the vision, and LLD gives the detailed blueprint for execution. Knowing how to create both plans is essential for successful software development.
