1. Introduction

Linear and iterative process flows represent two core approaches in software development, each with its own set of principles and applications.

In this tutorial, we’ll explore the fundamental differences between linear and iterative process flows, two pivotal methodologies in software development. We’ll also examine their unique characteristics and advantages and consider when to use each approach to best manage our software projects.

2. Overview

Linear process flows, traditionally known as the waterfall model, represent a straightforward approach to project management and software development. This methodology is characterized by a sequential progression through distinct phases such as planning, design, implementation, testing, and maintenance.

In the linear process flow, each stage must be completed before moving on to the next, with little to no overlap. This rigid structure suits projects with clear objectives and stable requirements.

On the other hand, iterative process flows adopt a cyclical approach, allowing projects to evolve through repeated cycles of planning, execution, and evaluation. This model emphasizes flexibility, continuous feedback, and incremental improvements, making it ideal for projects with evolving requirements or those seeking to innovate and adapt over time.

Let’s look at each of these processes in more detail.

3. Linear Process Flow

The linear process flow is a project management methodology that adheres to a strict sequential order. This approach divides the project into distinct stages, each dependent on the completion of the previous one:

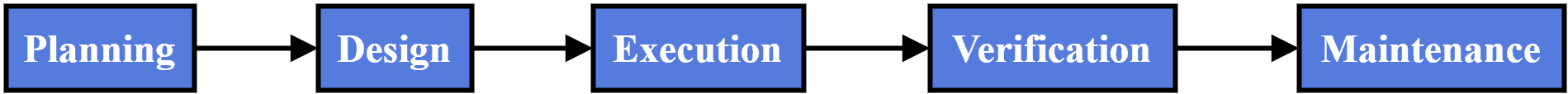

Linear-process-flow

The key phases of the linear process flow are:

  1. Planning:  We start the project with detailed planning and define goals, timelines, and resources
  2.  Design: In this phase, we develop detailed specifications for the project, outlining how objectives will be achieved
  3.  Execution: In this stage, we perform the actual development of the project based on the design specifications
  4.  Verification: Following execution, we test the project output against the initial requirements to ensure it meets all criteria
  5.  Maintenance: Finally, the project enters a maintenance phase, where we support and update the project

3.1. Advantages and Disadvantages of Linear Process Flow

While offering a structured and straightforward approach, the linear process flow has advantages and challenges. Its clarity and well-defined stages simplify understanding and management, ensuring everyone involved has a roadmap for the project’s progression.

This approach also facilitates the creation of extensive documentation at each phase, which provides clear and effective communication among stakeholders. Additionally, its predictability allows for more accurate planning in terms of timelines and budgeting, reducing uncertainties and helping manage expectations.

However, its sequential nature makes it difficult to accommodate changes once the project is underway. We typically receive feedback late in the process and, therefore, need significant rework if bugs are discovered at this stage. Furthermore,  we can’t overlook the potential risk of the project’s objectives or technology becoming outdated before completion, especially in industries that experience rapid evolution.

4. Iterative Process Flow

Unlike its linear process flow, the iterative process flow is known for its adaptability and dynamic nature. This makes it an ideal choice for projects where requirements are anticipated to evolve.

This approach breaks down the project into smaller, manageable iterations, each going through a mini-cycle of planning, execution, and evaluation. This cyclical process allows for continuous refinement and adjustment based on feedback received at the end of each iteration:

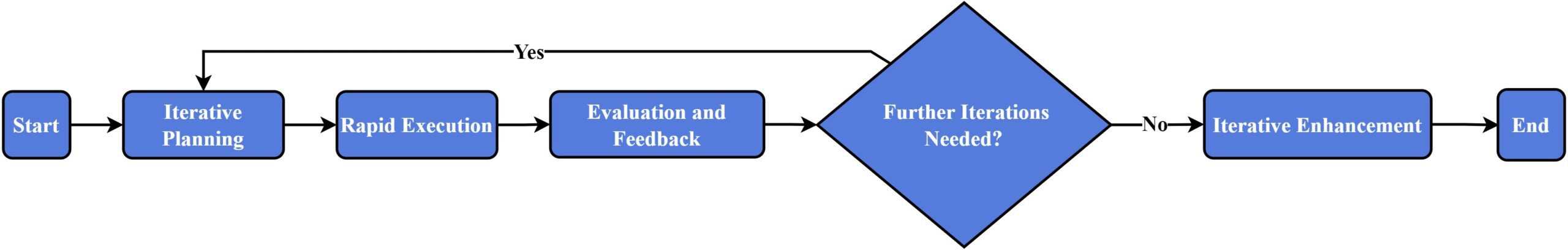

iterative process flow in software development

Let’s take a look at each of these subprocess.

  • Iterative Planning: At the outset of each iteration, we define specific goals and tasks, focusing on small, achievable segments of the project. This allows us to give attention to each component within a shorter timeframe
  • Rapid Execution: The development phase in each iteration is concise and aimed at producing a workable version of the product that reflects the iteration’s objectives
  • Evaluation and Feedback: Upon completion of execution, we evaluate the outcome of the iteration against the set objectives. We then actively sought feedback and utilized it to inform the next cycle, ensuring continuous improvement
  • Iterative Enhancement: With each cycle, the project incrementally approaches its final form, integrating lessons learned and adjustments from previous iterations. This phase emphasizes refinement and optimization

4.1. Advantages and Disadvantages of Iterative Process Flow

The iterative process flow boasts several distinct advantages. Primarily, its flexibility allows for adjustments and refinements at any project stage, making it highly responsive to changing requirements or unforeseen challenges. This adaptability ensures the project remains aligned with user needs and market trends. Additionally, the iterative model promotes early and continuous delivery of functional components, enabling stakeholders to see tangible progress and provide feedback earlier in the project lifecycle.

However, the iterative approach is not without its challenges. It requires a high degree of collaboration and communication among team members, as frequent feedback and revision cycles can be resource-intensive. Additionally, without careful management, the project scope can expand beyond the original parameters (a phenomenon known as “scope creep“), potentially leading to delays and increased costs. Furthermore, the iterative nature of this model demands a more flexible and potentially higher budget, as the project’s direction and scope may adjust over time.

5. Comparative Analysis

Now that we know both processes, let’s compare them using various aspects:

Aspect

Linear Process Flow

Iterative Process Flow

Project Structure

Sequential phases with upfront planning and milestones

Iterative cycles with flexible goal-setting

Flexibility

Rigid changes post-initiation are challenging

Highly adaptable; welcomes change and feedback

Communication

Comprehensive documentation; late feedback possible

Ongoing stakeholder involvement; early feedback

Predictability

Predictable timelines and budgets; obsolescence risk

Some uncertainty in timelines and budgets; risk mitigation

Resource Management

Upfront resource allocation; cost control

Flexible resource management; adaptable to evolving needs

As we can see, the choice between the linear process plow and the iterative process flow depends on project-specific factors. Linear processes provide structure and predictability but may struggle with changes. Iterative approaches offer adaptability and early feedback but require ongoing communication and flexible resource management. Therefore, we must consider our project’s stability, industry dynamics, and stakeholder engagement preferences to make an informed decision.

6. Conclusion

In this tutorial, we’ve learned about linear and iterative process flow as two distinct project management methodologies.

The linear process flow, characterized by its structured and sequential nature, offers predictability and clear milestones. However, it can be less adaptable to changes that may arise during a project’s lifecycle. On the other hand, the iterative process flow provides flexibility and adaptability, allowing projects to evolve in response to feedback and shifting requirements. This approach promotes early stakeholder engagement but demands ongoing communication and resource management.

Ultimately, the choice between these two methodologies depends on the specific characteristics of our project. We need to choose our approach based on the needs of our project to ensure successful project outcomes.
