1. Introduction

Ping (Packet Internet or Inter-Network Groper) is a networking utility for checking if a remote computer or node is reachable by a host on a network. A variety of protocols can be used with Ping such as AppleTalk, Connectionless Network Service (CLNS), IP,  Internetwork Packet Exchange (IPX), Apollo, VIP (VINES Internetwork Protocol), and  Xerox Network Systems (XNS). In this tutorial, we’ll try to explain the protocols used by ping and explore various aspects of them.

2. Internet Protocols for Ping

The default protocol used for a network is Internet Protocol (IP). Several layers in an IP stack such as Internet Control Message Protocol (ICMP), Address Resolution Protocol (ARP) are involved in the ping process. Ping comes with an operating system with network support to check if an IP address can be reached.   Depending on the purpose of use, the ping uses ICMP and ARP protocols and is different from TCP and UDP. Often ping is used as a generic term to test connections for TCP and UDP ports using different tools like Telnet and  Nmap. Let’s consider tcping, another console application that works over a TCP port to ping.

2.1. ARP

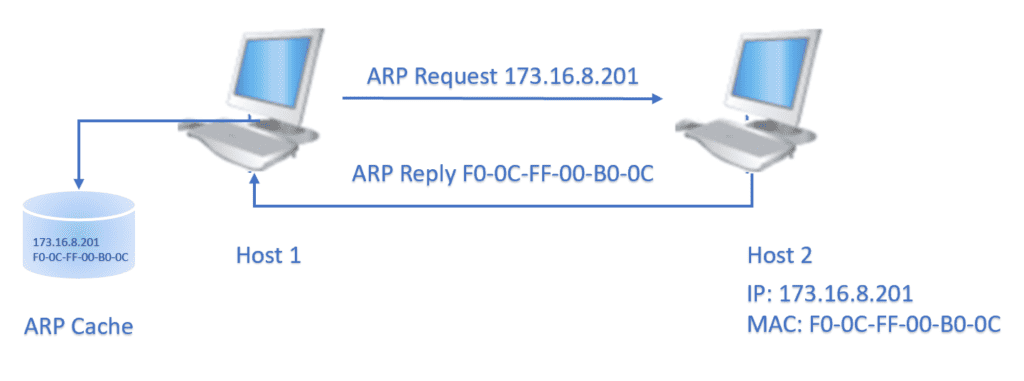

Address resolution refers to the process of finding an address of a computer in a network. Ping uses ARP protocol to identify the MAC address of the remote computer. Let’s assume that the ARP request with the IP address of the source computer (say Host 1) is sent to the target computer (say Host 2). In reply to the ARP request, Host  2 sends a reply with its IP and MAC address. To avoid the repetitive address resolution requests, Host 1 will cache the resolved addresses (IP and MAC) for a (short) duration:   cs1-1

2.2. ICMP

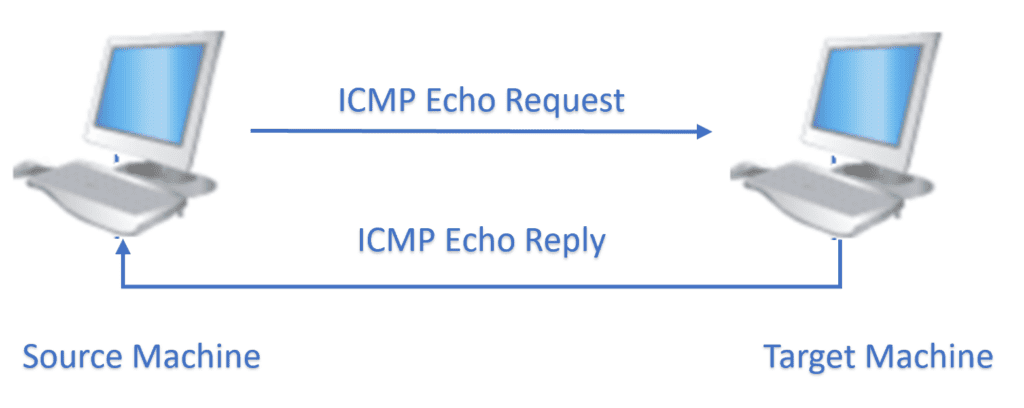

The ICMP protocol provides the code and types with no specific port number for the ping command: The ping utility contains a client interface to ICMP protocol and uses the echo request (Type 8), and echo reply (Type 0) messages. When a ping command is issued from a source machine, an echo-request packet is sent to the IP address of the target machine:   cs2-1 This ICMP echo request is generated to confirm whether the target machine is reachable. The target machine responds to the echo-request using an ICMP echo reply.  In this reply, the ping program receives the target machine IP, and the latency information, a timestamp value indicating the transmission time. Two ICMP variants are available to support IPv4 and IPv6.

2.3. AppleTalk

Ping sends AEP (AppleTalk Echo Protocol) packets to the target AppleTalk node and waits for replies. We can see the reply text format below:

Reply Text

Description

!

Reply received

Time-out

Target machine is taking too long to reply to a request made from the source device.

B

Bad echo reply received

C

Echo with bad DDP checksum received

E

Error encountered during sending of the echo

R

No route available to send the echo packet

2.4. CLNS

To check the status of a remote CLNS node, Ping is using a “ping clns”command  and we can see the reply text format and description below:

Reply Text

Description

!

Reply received

.

Target machine is taking too long to reply to a request made from the source device.

x

Reply was received with an error code

3. How Does Ping Work?

Working of ping is simple, let’s type in the command prompt “ping”:

C:\>ping

Usage: ping [-t] [-a] [-n count] [-l size] [-f] [-i TTL] [-v TOS]
            [-r count] [-s count] [[-j host-list] | [-k host-list]]
            [-w timeout] [-R] [-S srcaddr] [-c compartment] [-p]
            [-4] [-6] target_name

Options:
    -t             Ping the specified host until stopped.
                   To see statistics and continue - type Control-Break;
                   To stop - type Control-C.
    -a             Resolve addresses to hostnames.
    -n count       Number of echo requests to send.
    -l size        Send buffer size.
    -f             Set Don't Fragment flag in packet (IPv4-only).
    -i TTL         Time To Live.
    -v TOS         Type Of Service (IPv4-only. This setting has been deprecated
                   and has no effect on the type of service field in the IP
                   Header).
    -r count       Record route for count hops (IPv4-only).
    -s count       Timestamp for count hops (IPv4-only).
    -j host-list   Loose source route along host-list (IPv4-only).
    -k host-list   Strict source route along host-list (IPv4-only).
    -w timeout     Timeout in milliseconds to wait for each reply.
    -R             Use routing header to test reverse route also (IPv6-only).
                   Per RFC 5095 the use of this routing header has been
                   deprecated. Some systems may drop echo requests if
                   this header is used.
    -S srcaddr     Source address to use.
    -c compartment Routing compartment identifier.
    -p             Ping a Hyper-V Network Virtualization provider address.
    -4             Force using IPv4.
    -6             Force using IPv6.

Ping does the following checks:

  • Whether there’s a connection between the source IP and destination IP on the network.
  • The speed of the connection (latency).

Most often using the ping command without any option is sufficient to verify if a machine in a network is reachable. However,  for advanced troubleshooting of any connection issues, “options” are used. The options -f, -v, -r, -s, -j, -k supports IPv4, and the -R and -S  only IPv6. The ping command sends several echo requests to the destination address and the result is displayed. We can see that the reply provides information such as the request status, how many bytes were received in reply, latency, packet loss, and round trip times as shown below:

C:\>ping www.baeldung.com

Pinging www.baeldung.com [2606:4700:20::681a:c4a] with 32 bytes of data:
Request timed out.
Reply from 2606:4700:20::681a:c4a: time=110ms
Reply from 2606:4700:20::681a:c4a: time=114ms
Reply from 2606:4700:20::681a:c4a: time=107ms

Ping statistics for 2606:4700:20::681a:c4a:
    Packets: Sent = 4, Received = 3, Lost = 1 (25% loss),
Approximate round trip times in milli-seconds:
    Minimum = 107ms, Maximum = 114ms, Average = 110ms

4. How to Use Ping?

Windows

Linux

Command uses a 32 bytes long message

Command uses a 64 bytes long message

Sends only four messages as per default setting

Sends continuous messages until ask to stop

Adds an 8-byte timestamp to echo request

Assigns a sequence number to echo request

Timestamp is used to calculate round-trip delays

Replies are asynchronous, that is echo replies are not in same order as echo requests

For IPv4 or IPv6 addresses use ping -4/ping -6

Use ping /ping -6

5. Security Issue

Ping replies may yield information about the operating system, machine IP, and MAC and may cause security concerns.  Sophisticated cyber attackers may utilize this information for malicious attacks on the target machines. In an identified network, attackers may use ping to get a list of the systems that are reachable and responding. To avoid a security breach, many firewalls block ping requests from untrusted networks.

6. Conclusion

In this article, we’ve gone over the concept and protocols behind the ping command. Ping is used to assessing the connections status and associated network parameters of the target machine. We can use it for the purpose of troubleshooting connection issues such as slowdown, packet loss, and network monitoring. In addition to IP protocol, ping can use several other protocols for debugging different network problems.
