1. Overview
Without necessary synchronizations, the compiler, runtime, or processors may apply all sorts of optimizations. Even though these optimizations are usually beneficial, sometimes they can cause subtle issues.
Caching and reordering are optimizations that may surprise us in concurrent contexts. Java and the JVM provide many ways to control memory order, and the volatile keyword is one of them.
This tutorial focuses on Java’s foundational but often misunderstood concept, the volatile keyword. First, we’ll start with some background about how the underlying computer architecture works, and then we’ll get familiar with memory order in Java. Further, we’ll understand the challenges of concurrency in multiprocessor shared architecture and how volatile help fix them.
2. Shared Multiprocessor Architecture
Processors are responsible for executing program instructions. Therefore, they must retrieve the program instructions and required data from RAM.
As CPUs can carry many instructions per second, fetching from RAM isn’t ideal for them. To improve this situation, processors use tricks like Out of Order Execution, Branch Prediction, Speculative Execution, and Caching.

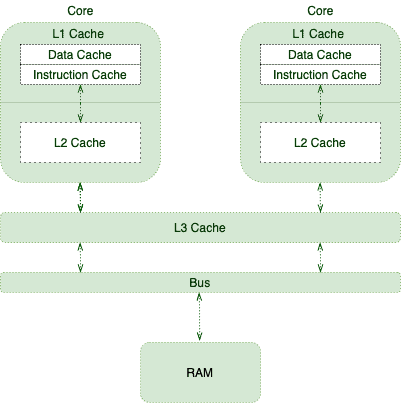

This is where the following memory hierarchy comes into play:
As different cores execute more instructions and manipulate more data, they fill their caches with more relevant data and instructions. This will improve the overall performance at the expense of introducing cache coherence challenges.
We should think twice about what happens when one thread updates a cached value.
3. Cache Coherence Challenges
To expand more on cache coherence, we’ll borrow an example from the book Java Concurrency in Practice:
public class TaskRunner {
private static int number;
private static boolean ready;
private static class Reader extends Thread {
@Override
public void run() {
while (!ready) {
Thread.yield();
}
System.out.println(number);
}
}
public static void main(String[] args) {
new Reader().start();
number = 42;
ready = true;
}
}
The TaskRunner class maintains two simple variables. Its main method creates another thread that spins on the ready variable as long as it’s false. When the variable becomes true, the thread prints the number variable.
Many may expect this program to print 42 after a short delay; however, the delay may be much longer. It may even hang forever or print zero.
The cause of these anomalies is the lack of proper memory visibility and reordering. Let’s evaluate them in more detail.
3.1. Memory Visibility
This simple example has two application threads: the main and the reader threads. Let’s imagine a scenario in which the OS schedules those threads on two different CPU cores, where:
- The main thread has its copy of ready and number variables in its core cache.
- The reader thread ends up with its copies, too.
- The main thread updates the cached values.
Most modern processors write requests that won’t be applied right after they’re issued. Processors tend to queue those writes in a special write buffer. After a while, they’ll apply those writes to the main memory all at once.
With all that being said, when the main thread updates the number and ready variables, there’s no guarantee about what the reader thread may see. In other words, the reader thread may immediately see the updated value, with some delay, or never at all.
This memory visibility may cause liveness issues in programs relying on visibility.
3.2. Reordering
To make matters even worse, the reader thread may see those writes in an order other than the actual program order. For instance, since we first update the number variable:
public static void main(String[] args) {
new Reader().start();
number = 42;
ready = true;
}
We may expect the reader thread to print 42. But it’s actually possible to see zero as the printed value.
Reordering is an optimization technique for performance improvements. Interestingly, different components may apply this optimization:
- The processor may flush its write buffer in an order other than the program order.
- The processor may apply an out-of-order execution technique.
- The JIT compiler may optimize via reordering.
4. volatile Memory Order
We can use volatile to tackle the issues with Cache Coherence.
To ensure that updates to variables propagate predictably to other threads, we should apply the volatile modifier to those variables.
This way, we can communicate with runtime and processor to not reorder any instruction involving the volatile variable. Also, processors understand that they should immediately flush any updates to these variables.
public class TaskRunner {
private volatile static int number;
private volatile static boolean ready;
// same as before
}
This way, we communicate with runtime and processor to not reorder any instruction involving the volatile variable. Also, processors understand that they should immediately flush any updates to these variables.
5. volatile and Thread Synchronization
For multithreaded applications, we need to ensure a couple of rules for consistent behaviour:
- Mutual Exclusion – only one thread executes a critical section at a time
- Visibility – changes made by one thread to the shared data are visible to other threads to maintain data consistency
synchronized methods and blocks provide both of the above properties at the cost of application performance.
volatile is quite a useful keyword because it can help ensure the visibility aspect of the data change without providing mutual exclusion. Thus, it’s useful where we’re ok with multiple threads executing a block of code in parallel, but we need to ensure the visibility property.
6. Happens-Before Ordering
The memory visibility effects of volatile variables extend beyond the volatile variables themselves.

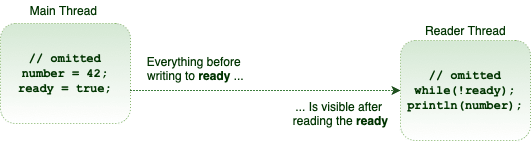

To make matters more concrete, suppose thread A writes to a volatile variable, and then thread B reads the same volatile variable. In such cases, the values that were visible to A before writing the volatile variable will be visible to B after reading the volatile variable:
Technically, any write to a volatile field happens-before every subsequent read of the same field. This is the volatile variable rule of the Java Memory Model (JMM).
6.1. Piggybacking
Because of the strength of the happens-before memory ordering, sometimes we can piggyback on the visibility properties of another volatile variable. For instance, in our particular example, we just need to mark the ready variable as volatile:
public class TaskRunner {
private static int number; // not volatile
private volatile static boolean ready;
// same as before
}
Anything prior to writing true to the ready variable is visible to anything after reading the ready variable. Therefore, the number variable piggybacks on the memory visibility enforced by the ready variable. Simply put***,*** even though it’s not a volatile variable, it’s exhibiting a volatile behaviour.
Using these semantics, we can define only a few variables in our class as volatile and optimize the visibility guarantee.
7. Conclusion
In this article, we explored the volatile keyword, its capabilities, and the improvements made to it, starting with Java 5.
As always, the code examples can be found on GitHub.
