1. Introduction
The kernel is the central component of an operating system. It’s a core that manages system resources, provides essential services, and acts as an intermediary between software applications and hardware, allowing them to communicate effectively. The kernel manages various tasks, such as memory allocation, process scheduling, and input/output (I/O) management.
Depending on the architecture, kernels can be classified as monolithic, microkernel, or hybrid, each with its pros and cons. The choice of kernel design can significantly impact an operating system’s performance, security, and maintainability.
In this article, we’ll explore the different types of kernel architectures, specifically focusing on monolithic, microkernel, and hybrid kernels. Furthermore, we’ll also discuss their characteristics, advantages, and disadvantages. Finally, we’ll find out why Linux is a monolithic kernel operating system.
2. Kernel Space vs. User Space
Before comparing kernel architectures, we need to understand the key difference: whether components are in kernel space or user space, as this affects system organization and functionality.
In an operating system, there are two primary spaces where code can execute: user space and kernel space**. User space is where user applications execute, while kernel space is where the operating system itself and other privileged components execute**. In kernel space, code has direct access to system resources like memory and hardware, enabling privileged operations not available in user space.
By design, kernel space is separate from user space, which houses user applications and processes. This separation aims to prevent unauthorized access and maintain system stability by isolating the essential operations of the kernel from potential interference or damage caused by user applications.
System calls play a crucial role in the interaction between kernel space and user space. They serve as a bridge, allowing user applications to request specific services from the kernel. When an application makes a system call, it triggers a controlled switch from user space to kernel space, enabling the kernel to execute the requested service on behalf of the user application.
Some common examples of system calls include opening and closing files, reading from or writing to a file, and creating processes. Since the kernel handles these tasks within the protected kernel space, it safeguards the system’s integrity and stability while still allowing user applications to access necessary resources and services.
3. Monolithic Kernels
A monolithic kernel is an operating system architecture where the entire system runs in kernel mode. In this design, the kernel consists of a single, large executable that includes various services such as memory management, device drivers, file system management, and process management, among others. Consequently, all these services can directly interact with each other, bypassing the need for IPC (Inter-Process Communication) mechanisms, which simplifies communication and reduces overhead.
Monolithic kernels offer high performance due to the absence of IPC overhead, allowing for quicker system call execution. Their design is simpler to understand and implement, as all components are in a single executable. They’re generally easier to maintain and debug due to fewer components and interactions.
However, monolithic kernels have some drawbacks. Their security can be compromised by a bug or vulnerability in any service since all services run in kernel mode. They may be less stable than microkernels, as a failure in one service can crash the entire system. Additionally, they lack modularity, making it difficult to update or replace individual services without rebuilding the entire kernel. And there are several examples of Monolithic Kernels OSes.
Linux, an open-source operating system featuring a monolithic kernel design, appears in various distributions like Ubuntu, Fedora, and Debian.
The UNIX family of multitasking, multi-user operating systems encompasses systems such as BSD and Solaris.
Microsoft developed MS-DOS, an early monolithic kernel-based operating system, for personal computers during the 1980s and 1990s.
4. Microkernels
A microkernel architecture has only core functionality like process and memory management in kernel mode, while other services like device drivers, file systems, and networking are separate user-mode processes. This design leads to a more modular, fault-tolerant, and secure system, as individual components can be updated or replaced without affecting the entire system.
Microkernels offer a more modular and maintainable design, allowing for independent updates, replacements, or removals of components. They provide better fault tolerance since components run in isolation, and the kernel is smaller and less complex. Additionally, they offer improved security due to component separation, which reduces the attack surface.
On the other hand, microkernels typically have higher IPC overhead, which can negatively impact performance. The overall system complexity may increase because of the need for additional IPC mechanisms and user-mode process management. Developing a microkernel-based system can be more time-consuming and challenging due to the need for a well-defined IPC mechanism and separate user-mode processes for each service.
QNX, a real-time operating system featuring a microkernel architecture, sees frequent use in embedded systems and critical applications like automotive and industrial control systems.
Developers initially created Minix, an open-source POSIX-compliant operating system, for educational purposes, and it is based on a microkernel design.
The L4 family of second-generation microkernels targets high-performance and security-critical systems and can be found in projects such as seL4, Fiasco.OC, and OKL4.
5. Hybrid Kernels
Hybrid kernels combine aspects of both monolithic and microkernel architectures. They run some core services in kernel mode and others in user mode, offering a balance between performance and modularity. Hybrid kernels can adapt their design according to specific requirements, incorporating the best aspects of both architectures
Hybrid kernels offer flexibility in design, allowing for adaptation based on specific requirements and use cases. They can achieve a balance between performance and modularity by combining the best aspects of monolithic and microkernel architectures. Developers can also customize which components run in kernel mode and user mode, providing more control over system design.
However, hybrid kernels can be more complex to develop and maintain, possibly increasing development time and effort. They may involve trade-offs between performance, modularity, and security, depending on the implementation. The flexibility of hybrid kernels can blur the lines between kernel and user mode components, potentially complicating system design and making it difficult to achieve an optimal balance. Now, let’s explore some examples of OSes that follow this approach.
Microsoft developed Windows NT, a family of operating systems that use a hybrid kernel architecture. This includes Windows 2000, Windows XP, and later versions. The hybrid kernel blends monolithic and microkernel designs, resulting in better performance and modularity compared to earlier Windows versions.
Apple employs the XNU kernel in macOS and iOS as another example of a hybrid kernel. It fuses monolithic and microkernel architectures, integrating components from the Mach microkernel, BSD Unix, and the I/O Kit framework. This combination creates a flexible, high-performance foundation for Apple’s operating systems.
6. Monolithic Kernel vs. Microkernel vs. Hybrid Kernel

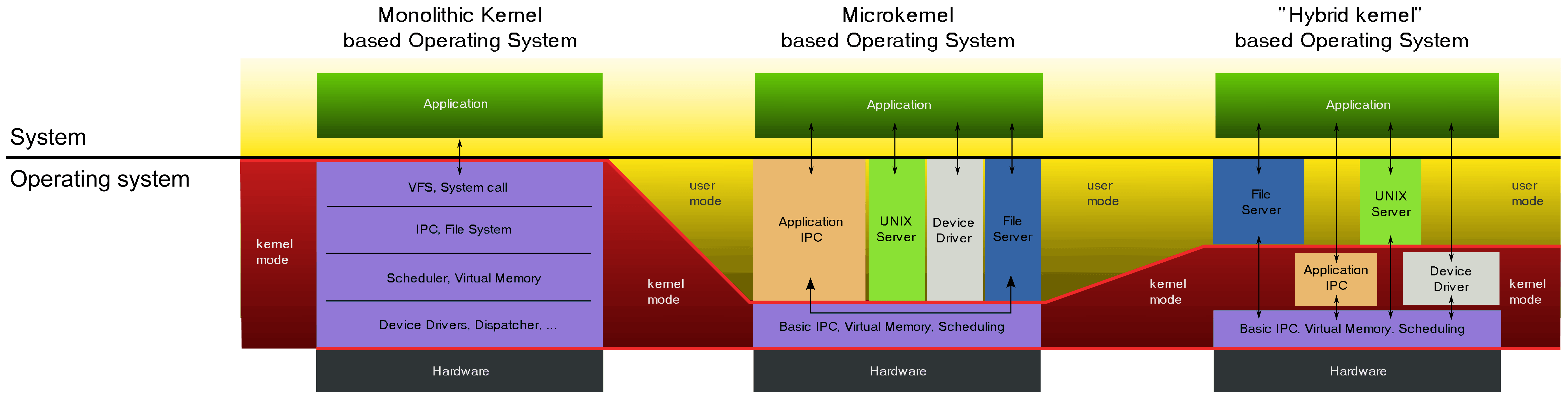

Let’s illustrate the kernel and user space organization in monolithic, microkernel, and hybrid kernel architectures:
This image highlights the differences between these architectures in terms of how they manage operating system components within kernel space and user space.
In monolithic kernels, all operating system components reside within the kernel space, leading to direct interaction between components without IPC overhead. This design results in high performance and simplicity but may compromise security and stability since all components share the same privileged memory space.
Microkernels, on the other hand, restrict kernel space to core functionalities such as process and memory management, while other services like device drivers, file systems, and networking operate within user space as separate processes. This separation promotes modularity, fault tolerance, and security, as components are isolated from each other. However, the reliance on IPC for communication between components can introduce complexity and performance overhead.
Hybrid kernels combine the principles of both monolithic and microkernel architectures, running some core services in kernel space and others in user space. This approach aims to balance performance and modularity by selectively placing components in kernel or user space based on their specific requirements. While hybrid kernels offer flexibility and adaptability, they may present challenges in terms of complexity and trade-offs between performance, modularity, and security.
In summary, the main difference between monolithic, microkernel, and hybrid kernel architectures lies in how they organize components within kernel and user spaces. Monolithic kernels house all components in kernel space. Microkernels separate core functionalities in kernel space from other services in user space. And hybrid kernels blend the two approaches to achieve a balance between performance and modularity. The choice of kernel architecture depends on the specific requirements of the operating system and its target applications.
7. Conclusion
In conclusion let’s answer the question: “*Why is Linux a monolithic kernel?*“. This architectural choice was made intentionally by Linus Torvalds, the creator of Linux, to prioritize performance, simplicity, and ease of development.
The high performance of monolithic kernels stems from their direct interaction between kernel components, eliminating the need for IPC mechanisms. This advantage was crucial in delivering an efficient and responsive operating system.
A monolithic kernel’s simplicity, with all components contained within a single executable, makes it more accessible to a broader range of users and developers. This design also facilitates easier maintenance and debugging, enabling a diverse community to contribute to its development.
Linux’s monolithic kernel design also ensures compatibility with various devices and systems, as it can run efficiently on a wide range of hardware configurations. Over time, the monolithic kernel has become an established part of Linux’s identity, with the community continuing to build upon and optimize the architecture.
One notable feature of Linux’s monolithic kernel is its support for loadable kernel modules. These modules can be dynamically integrated into the kernel at runtime, extending its functionality without requiring a full rebuild or reboot. This modular approach allows for greater flexibility and adaptability while maintaining the core advantages of a monolithic kernel.
