1. Overview
Swap space is a memory virtualization concept. It’s a strategy to mitigate memory starvation when a system is running out of memory. To employ it, Linux moves or swaps out blocks of non-critical memory to disk and swaps them back in on demand. Notably, Linux can use either a swap partition or a swap file for this type of memory when real memory is full.
In this tutorial, we’ll compare swap partitions to swap files for performance.
2. Swap Usage
Again, swap space is a piece of our disk that handles Random-Access Memory (RAM) overflow conditions.
Let’s see the typical reasons for RAM overflow conditions:
- running many programs at the same time with a total RAM demand exceeding the supply
- running programs that attempt to allocate more data than available
In such cases, to improve performance, Linux swaps pages that aren’t in constant use. Thus, the kernel frees more available memory for other processes. In fact, we can see the swap activity using the free command:
$ free -h
total used free shared buff/cache available
Mem: 7.8Gi 5.4Gi 804Mi 122Mi 383Mi 1.1Gi
Swap: 4Gi 2.1Gi 1.9Gi
Moreover, using swap space doesn’t only serve to enhance memory. I****t also stores data from RAM when hibernating.
So, the system improves performance by swapping out inactive memory pages, thus keeping often-used data in the cache. In addition, swap space prevents failure to allocate memory, especially on systems with low memory.
However, there are drawbacks as well:
- the swap space should increase proportionally to the RAM
- a large swap space may result in performance issues like outages and reduced response time
Still, when we increase the memory size, it allows the system to run more programs. As such, we’ll need to adjust the swap space to carry more data when the system hibernates.
Next, let’s see how to find out the kind of swap space in use on our system.
3. Swap Partition vs File
The free command shows the size of the swap space. However, it doesn’t specify whether the swap is a partition or a file.
To check the kind of swap space that’s in use, we can run the swapon command:
$ sudo swapon --show
NAME TYPE SIZE USED PRIO
/swapfile file 4096M 2150.4M -1
Notably, the swapon tool doesn’t show any output if the system has no swap space.
Now, we can compare swap partitions to swap files in terms of performance.
4. Swap Location
A benefit of using swap partitions on Hard Disk Drives (HDDs) is the ability to place them on contiguous HDD areas. This improves performance by increasing data throughput or decreasing seek time.
4.1. Data Sectors

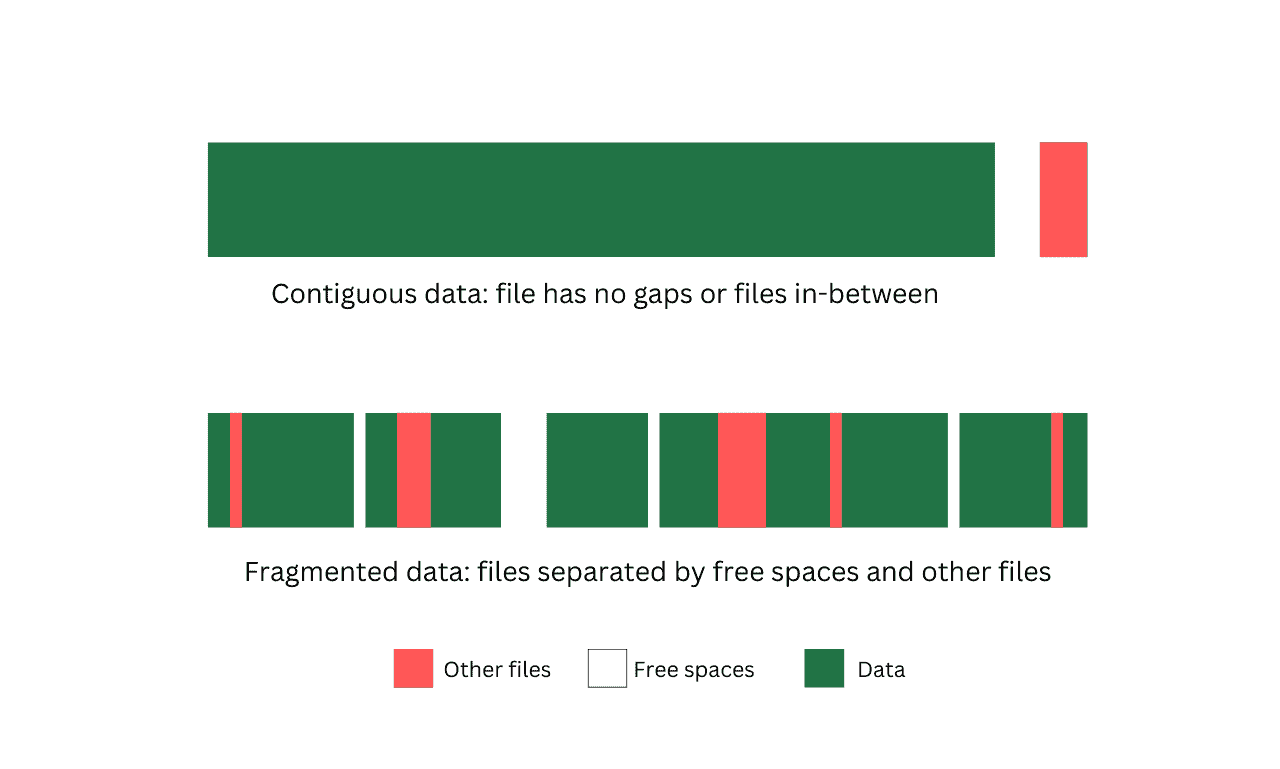

When talking about contiguous memory, we refer to sectors next to one other on a computer hard drive. Further, writes are usually contiguous, provided there’s enough space.
However, if there aren’t enough sectors, the data is written to multiple locations on the disk, resulting in fragmented data. This fragmentation would reduce performance on a traditional hard drive, but would have less of an impact on a Solid State Drive (SSD):
Notably, throughput and seeking are often faster toward the edge of the disk. The performance difference results from the fact that this part has more sectors per cylinder yet spins at the same speed.
Also, creating the swap file when the filesystem is fresh and empty usually keeps it contiguous and improves performance. In fact, the kernel doesn’t allow using a sparse file as a swap file.
4.2. Ease of Data Access
From the end-user perspective, swap files in higher Linux kernel versions are virtually as fast as swap partitions. Of course, the swap file should be contiguous to provide the same speed as a partition.
Also, there are a few things that the kernel does to increase the performance of swap files:
- keeps a map of the location of swap files on underlying devices
- accesses the swap file directly
- bypasses the cache
- avoids filesystem overhead
Further, in older Linux kernel versions like 2.4, swap files can lead to system slowdowns. Basically, the kernel allocates memory from the main page allocator when performing a swap out. When doing many swap-outs, this causes extra reads and writes on the system drive.
Importantly, when the system starts using the swap file on the drive, performance may suffer because both SSDs and HDDs are much slower than RAM.
Further, let’s compare the flexibility of a swap file versus a swap partition.
5. Swap Flexibility
The administrative flexibility of swap files can exceed certain advantages of swap partitions. For example, we can do these with a swap file:
- place a swap file on any mounted file system
- set swap file to any desired size
- add or change the swap file as needed
In contrast, swap partitions are not as flexible, since we can’t enlarge a swap partition without disk management tools. These processes introduce various complexities and potential downtimes, along with time wastage and reboots.
Unlike a swap partition, a swap file is just a file. It’s flexible to handle. The system can stop using the file, resize it, and start using it again. Also, there are other advantages:
- there’s no need to alter tables
- the setup or management process doesn’t require a reboot
- it doesn’t require heavy drive management
The handling of swap files is more flexible when compared to swap partitions for memory management on a system.
Finally, we’ll discuss the user preferences on swap.
6. User Preferences
In general, users and distributions prefer swap partitions to swap files.
For example, btrfs on Linux kernels before version 5.0 doesn’t support swap files at all. In fact, using a swap file for such a system may result in file system corruption.
Although we may use a swap file on btrfs for Linux kernel version 5.0 and higher, there are limitations:
- we can’t create snapshots if there’s a working swap file on the subvolume
- certain filesystem operations, like device addition and deletion, will skip swapfile extents or may fail
Notably, the use of swap files is less common. Hence, they’re less tested when we compare them to swap partitions. This inadequate testing can lead to filesystem corruption bugs, like the one that appeared briefly in version 5.12-rc1.
According to Linus Torvalds, “all the normal distributions set things up with swap partitions, not files”.
In addition, “swapfiles tend to be slower and have various other complexity issues.”
7. Conclusion
In this article, we compared the swap file and swap partition for performance. Also, we saw the constraints that come with using a swap file or partition on a system.
