1. Introduction

The tmux tool is terminal multiplexer software that enhances the usual text-based interaction of the terminal by introducing terminal user interface (TUI) elements. In particular, windows, panes, and similar visual aids bring the experience of a graphical user interface (GUI) to the terminal. One feature that tmux also has control over is the mouse and, more specifically, copying and pasting with it.

In this tutorial, we explore ways to copy and paste text with and without the mouse in tmux along with ways to enhance this functionality. First, we briefly refresh our knowledge about elements and interdependencies within a tmux environment. After that, we overview simple copy-and-paste operations through the terminal emulator. Next, we look at the copy mode of tmux. Then, we turn to general mouse support within a text-based terminal. Finally, we apply this idea to tmux by exploring the feature that it offers natively.

We tested the code in this tutorial on Debian 12 (Bookworm) with GNU Bash 5.2.15 and tmux 3.3a. Unless otherwise specified, it should work in most POSIX-compliant environments.

2. tmux Elements and Interdependency

On its first start, tmux creates a server instance, which acts like the orchestrator for future instances. Of course, it also creates a client that we can interact with the server through. Any next tmux run checks whether a server is already running. If it is, it becomes a client to that existing instance unless otherwise requested.

In any case, every time we execute tmux without subcommands, with new-session, or similar, we immediately get three elements in order:

  1. session
  2. window
  3. pane

Sessions represent instances of a running client and can be referenced via their identifiers:

$ tmux list-sessions
0: 1 windows (created Sun Apr  7 07:04:00 2024)

Here, we only have a single client-server session with the identifier 0. By default, tmux names sessions with consecutive numbers. Still, we can also use new-session subcommand in combination with the [-s]ession flag to give a session a specific name.

Regardless, a session contains at least one window, which contains at least one pane:

[Ctrl+B, w]
[...]
(0) - 0: 1 windows (attached)
(1) └─> + 0: [tmux]*Z
(2) - named: 1 windows
(3) └─> 0: bash*: "baeldung@xost: ~"
[...]

Thus, if we kill the only pane of the last window of a session, we effectively kill the session.

On the other hand, if we split a window into more than one pane, only tmux is aware of this virtual split. To the terminal emulator itself, these borders are just regular characters, the same as any other part of the terminal.

3. External tmux Copy and Paste via the Terminal Emulator

Many terminal emulators are actually a window within a GUI. The GUI usually supports mouse actions. Thus, we can often operate on the terminal emulator and its contents via the mouse cursor even in remote sessions:

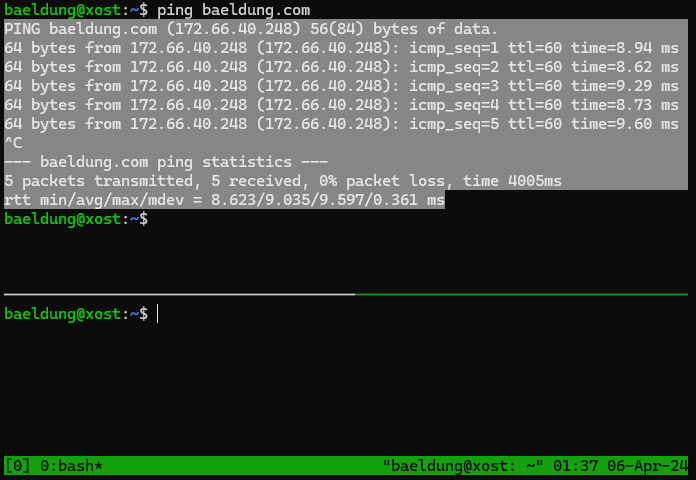

<em>tmux</em> vertical pane with <em>ping</em>

Here, we see the selected output from ping within one of two panes. Once we perform the selection, a Right Click or a combination like Ctrl+C usually results in the contents being saved to the clipboard.

Yet, this way, we can only select by line from left to right.

So, if we attempt to leverage this method to only get the contents from one of two left-and-right instead of top-and-bottom panes, we won’t be successful:

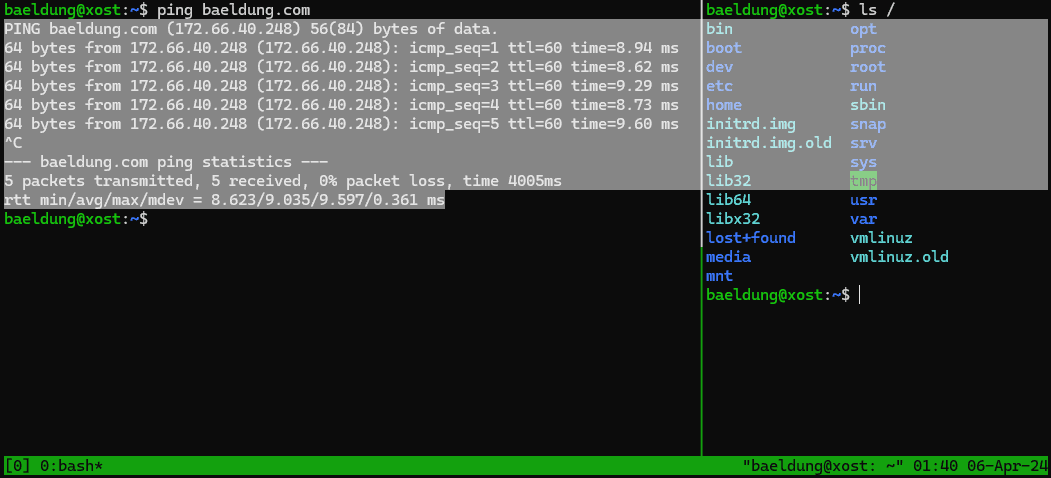

<em>tmux</em> horizontal pane selection

As we can see, the selection now includes a lot of content that isn’t related to the original target: the ping output. Pruning the resulting text can be very tedious:

PING baeldung.com (172.66.40.248) 56(84) bytes of data.                      │bin             opt
64 bytes from 172.66.40.248 (172.66.40.248): icmp_seq=1 ttl=60 time=8.94 ms  │boot            proc
64 bytes from 172.66.40.248 (172.66.40.248): icmp_seq=2 ttl=60 time=8.62 ms  │dev             root
64 bytes from 172.66.40.248 (172.66.40.248): icmp_seq=3 ttl=60 time=9.29 ms  │etc             run
64 bytes from 172.66.40.248 (172.66.40.248): icmp_seq=4 ttl=60 time=8.73 ms  │home            sbin
64 bytes from 172.66.40.248 (172.66.40.248): icmp_seq=5 ttl=60 time=9.60 ms  │initrd.img      snap
^C                                                                           │initrd.img.old  srv
--- baeldung.com ping statistics ---                                         │lib             sys
5 packets transmitted, 5 received, 0% packet loss, time 4005ms               │lib32           tmp
rtt min/avg/max/mdev = 8.623/9.035/9.597/0.361 ms

In addition, tmux often doesn’t break lines with regular newline characters. Because of this, pasting the clipboard might result in a single line.

In general, the method is very convenient due to the use of the mouse and GUI without extra configuration. Still, such shortcomings can prevent us from being able to use a terminal emulator as an effective tool for copying and pasting.

4. tmux Copy Mode

In tmux, the way to scroll around a pane buffer or select data from it is the so-called copy mode.

4.1. Enter Copy Mode

**To enter copy mode, we employ the current bind combination (usually Ctrl+B), followed by the *[* closed square bracket key, i.e., *Ctrl+B [***:

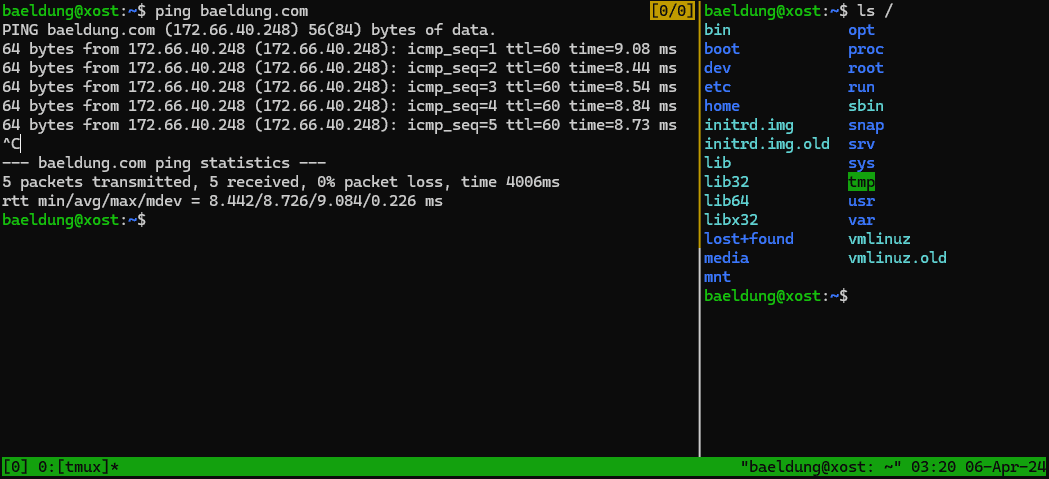

<em>tmux</em> copy mode

Consequently, we see several indicators that we’re in copy mode:

  • the current program in the status pane becomes [tmux]
  • the relevant pane border becomes yellow
  • an indicator like [#/#] appears at the top right of the pane

The indicator shows how many lines are currently hidden from view at the bottom of the screen and how many lines in total were in the upper buffer before entering copy mode.

4.2. Key Schema

Once in copy mode, the navigation and action keys we can use depend on the current key schema.

There are two possible options:

  • emacs
  • vi

These are based on the way keys are assigned within the respective text editor.

*To get the current schema, we can run tmux with the show-options subcommand and the [-g]lobal flag*:

$ tmux show-options -g | grep status-keys
status-keys emacs

In particular, we use grep to filter according to the status-keys string. The output shows that our current schema is emacs.

Notably, emacs keys don’t always work well in all terminal emulators, especially those that employ the special keys for other actions in the GUI. This has to do with the priority of key processing.

Because of this, *we can [-g]lobally switch to the less-involved vi key schema* via setw:

setw -g mode-keys vi

This command sets vi as the default schema for the tmux session. To ensure it remains configured, we can also add it to the respective .tmux.conf file.

4.3. Main Copy Mode Keys

Let’s see some of the main shortcut keys and combinations in copy mode:

+-------------------+--------------------+---------------+
| Action            | emacs              | vi            |
+-------------------+--------------------+---------------+
| move character    | Up Down Left Right | j k h l       |
| move line         | Ctrl-Up Ctrl-Down  | Ctrl+Y Ctrl+E |
| move whole screen | PageUp PageDown    | Ctrl+B Ctrl+F |
| search            | Ctrl+S             | /             |
| start selection   | Ctrl+Space         | Space         |
| copy selection    | Ctrl+W             | Enter         |
| clear selection   | Ctrl+G             | Escape        |
| exit copy mode    | Escape             | q             |
+-------------------+--------------------+---------------+

Once we have a selection copied, we exit copy mode and paste with Ctrl+B, followed by an [ open square bracket, i.e., Ctrl+B [.

4.4. Example

So, let’s see an example of copying in copy mode.

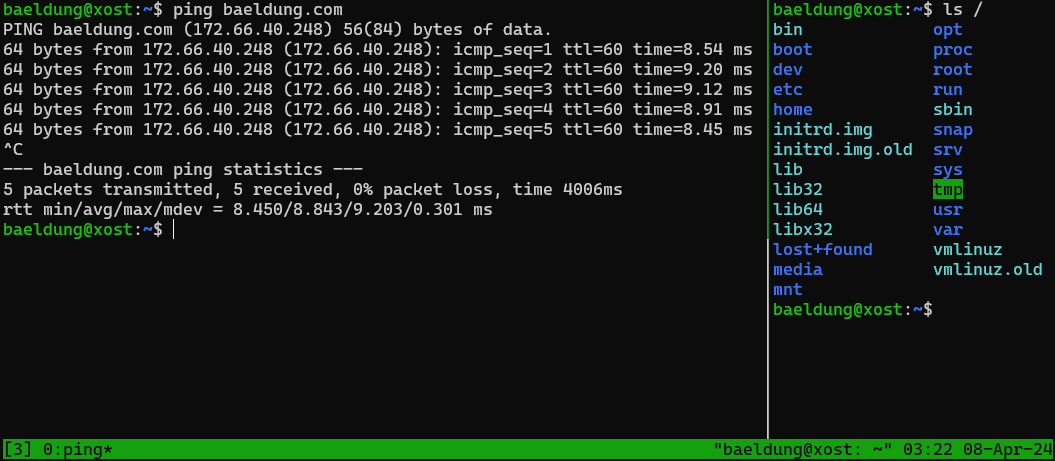

First, we open a tmux session with two side-by-side panes:
<em>tmux</em> horizontal panes

After that, we go to the left pane via Ctrl+B and the Left Arrow. Next, we press Ctrl+B and *[* to enter copy mode:

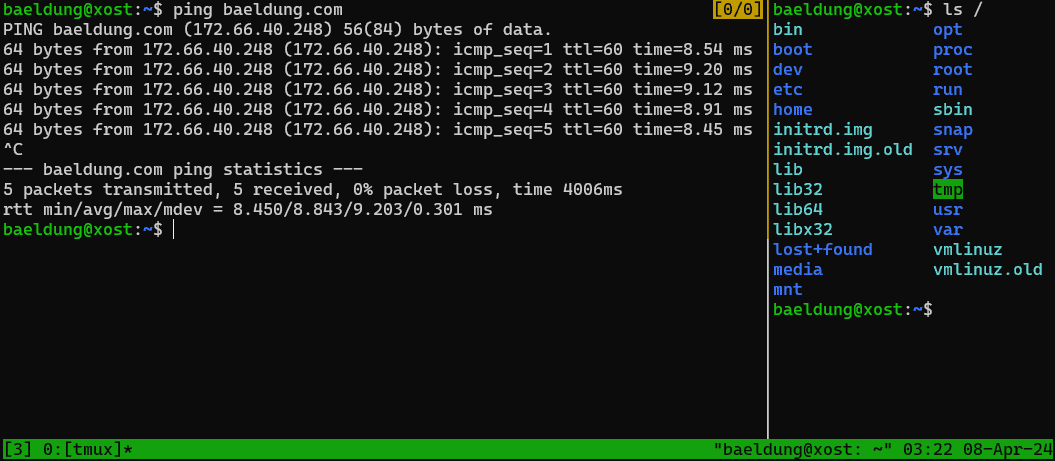

<em>tmux</em> horizontal panes copy mode

Once in copy mode, we can press the Up Arrow and $ to move the caret from the prompt to the far right of the last ping output line:
<em>tmux</em> horizontal panes copy mode moved

Then, we press Space to start copying and move the selecting cursor to the beginning of the second line:

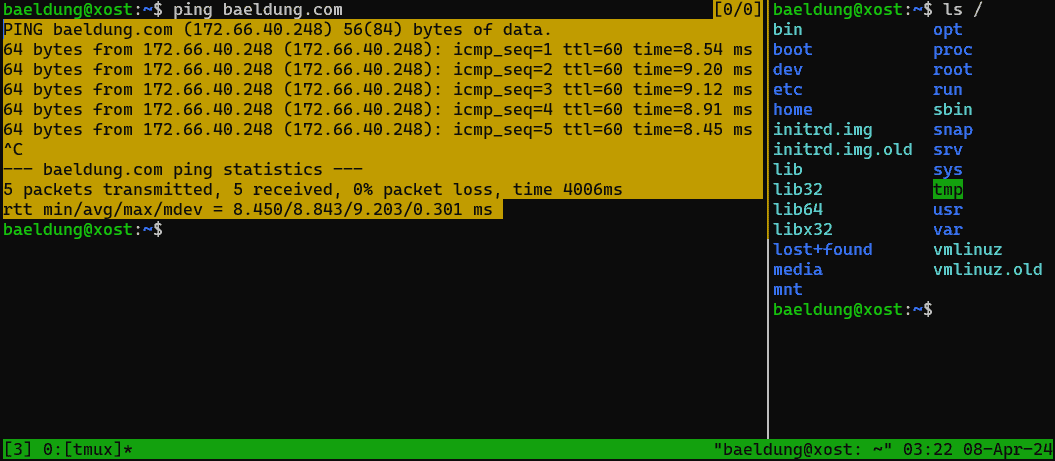

<em>tmux</em> horizontal panes copy mode selected

Critically, the selection doesn’t go beyond the pane borders. Now, upon pressing Return, we copy the selection to the clipboard and exit copy mode.

Finally, we can store the clipboard in a Bash variable by entering the respective command and pressing Ctrl+B and ] while the cursor is between the single quotes:

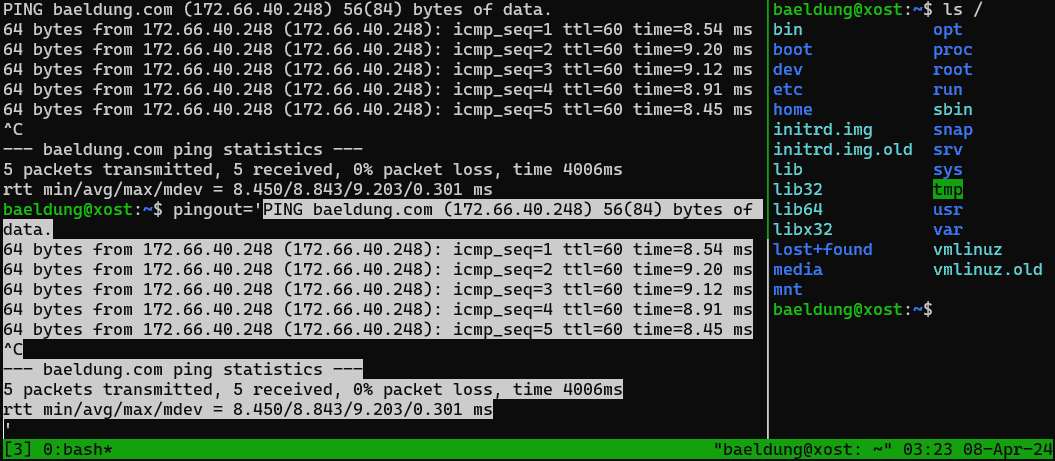

<em>tmux</em> horizontal panes paste

Thus, we can copy and store the data from any part of the pane, including the hidden buffer. Since this mechanism is native to tmux, borders are considered while selecting. Yet, the data is often stored in the clipboard accessible both within the terminal emulator and the GUI that runs it.

5. Mouse in the Terminal

Since it has been a standard part of desktop and portable computer equipment, terminals often support the mouse despite their text-based heritage.

5.1. The Pointer

In practice, both GUI and command line interface (CLI) environments have a cursor. One is often a pointer in the form of a slanted arrow, while the other is a caret:

$ the cursor is at the end of this line █

Although modern shells have basic and advanced line editing features that may enable us to move around, going up the screen isn’t always possible using conventional methods.

Because of this, the mouse can be invaluable as a way to move the caret around the screen. In particular, mouse movements map to a respective caret position change.

5.2. Drivers

To achieve mouse support for text-only terminal control, systems first have to know how to read the input from the mouse. This is usually done via the fairly basic usbhid or psmouse drivers:

$ lsmod
[...]
hid_generic   60010  0
usbhid        66601  0
hid          160667  2 hid_generic,usbhid
[...]
psmouse       14301  0
[...]

In fact, for many systems, the driver loads automatically when we insert a mouse or keyboard via USB or PS/2 respectively.

5.3. ANSI Codes

Once the system intercepts the mouse movements, it can react with the respective ANSI codes for caret relocation.

By doing so, a terminal can map these changes according to the current sensitivity. So, for instance, if we move the physical mouse to the left, the caret moves to the left as well.

5.4. General Purpose Mouse (gpm)

The General Purpose Mouse (gpm) package extends basic mouse drivers for terminal interoperability via a daemon.

This daemon is usually the way most terminals make the link between mouse and caret movement:

$ gpm

Notably, gpm supports both USB and PS/2 mouse devices. To get a list of types, we specify a device with -m and use the -t option with help.

6. tmux Mouse Support

Having many of the features that a regular GUI provides, tmux naturally includes mouse support.

6.1. Toggle Mouse Support

*To enable mouse support, we set the mouse [-g]lobal option to on*:

set -g mouse on

Of course, we can do this both within a session, outside of it, and via the .tmux.conf configuration file.

6.2. Features

In tmux running within a non-GUI environment and not within a terminal emulator, this spawns an inverse block caret indicator. Otherwise, we can just use the GUI cursor.

Further, tmux mouse support mainly provides selection hooks:

  • drag borders to resize panes
  • select the content of a single pane
  • avoid bad line endings when copying
  • right-click context menu

Let’s see a couple of these features in action.

6.3. Right-Click Context Menu

One of the most convenient uses of a mouse is the context menu. In fact, some GUI environments such as Openbox have a minimal interface in favor of cascadable right-click menus.

Considering this, tmux also implements a menu that we can activate with the mouse:

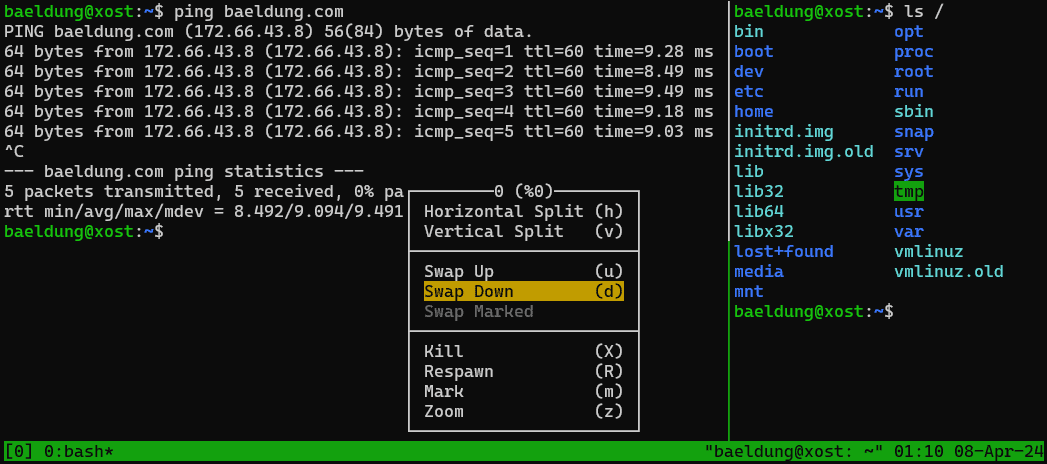

<em>tmux</em> mouse context menu

In this case, we see that right-clicking on a blank part of the terminal provides several options:

  • Horizontal Split (h): spawn a new pane to the right of the current one
  • Vertical Split (h): spawn a new pane to the bottom of the current one
  • Swap Up (u): swap the current pane with the previous one
  • Swap Down (d): swap the current pane with the next one
  • Swap Marked: swap marked panes
  • Kill (X): kill the current pane
  • Respawn (R): respawn the current pane
  • Mark (m): mark the current pane (for swapping and more)
  • Zoom (z): zoom within the current pane

Further, the number, type, and availability of these options depend on the context of the right click:

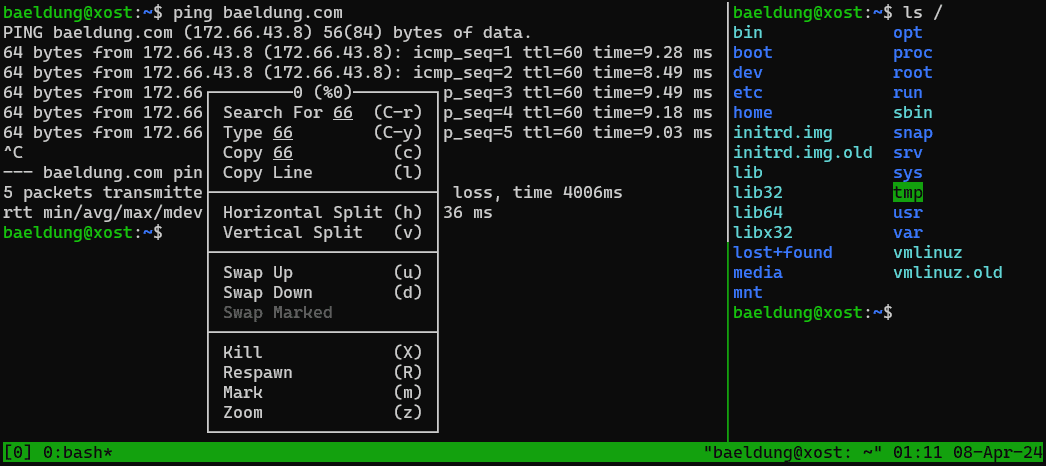

<em>tmux</em> mouse context menu operations

This way, we can get only relevant functions.

6.4. Pane Border Restrictions

As we saw earlier, a selection normally doesn’t respect pane borders, since the terminal doesn’t see them as a special area.

However, when mouse support is on, the selection is confined to the pane that we started the selection in. Thus, although it’s still line by line, we can freely move around the window via the mouse pointer without the selection expanding beyond the desired pane.

Effectively, this is achieved by performing several mappings:

  • switch to copy mode when starting the mouse drag operation
  • perform selection via the mouse drag operation
  • copy selection and turn off copy mode at the end of the mouse drag operation

This way, a minimal amount of specialized code handles the mouse.

6.5. Customization

Notably, earlier versions of tmux have very limited mouse support and might require custom code to get it working as expected:

set -g mouse on
bind -n WheelUpPane if-shell -F -t = "#{mouse_any_flag}" "send-keys -M" "if -Ft= '#{pane_in_mode}' 'send-keys -M' 'select-pane -t=; copy-mode -e; send-keys -M'"
bind -n WheelDownPane select-pane -t= \; send-keys -M
bind -n C-WheelUpPane select-pane -t= \; copy-mode -e \; send-keys -M
bind -T copy-mode-vi    C-WheelUpPane   send-keys -X halfpage-up
bind -T copy-mode-vi    C-WheelDownPane send-keys -X halfpage-down
bind -T copy-mode-emacs C-WheelUpPane   send-keys -X halfpage-up
bind -T copy-mode-emacs C-WheelDownPane send-keys -X halfpage-down

setw -g mode-keys vi
unbind -T copy-mode-vi Enter
bind-key -T copy-mode-vi Enter send-keys -X copy-pipe-and-cancel "xclip -selection c"
bind-key -T copy-mode-vi MouseDragEnd1Pane send-keys -X copy-pipe-and-cancel "xclip -in -selection clipboard"

Effectively, this configuration script provides a similar behavior to the now-default tmux mouse copy support:

  1. set the [-g]lobal mouse option to on
  2. bind certain keys to the pane, over which we press or release a mouse button
  3. relate binding with copy mode shortcuts
  4. use the vi schema for keys
  5. copy via xclip

Most of this functionality is already implemented in recent versions of tmux.

7. Summary

In this article, we talked about tmux and ways to copy and paste session contents with the keyboard and mouse.

In conclusion, although tmux works predominantly within text-based environments, there are ways to employ the mouse for selection and copy operations even through remote sessions.
