1. Overview

In this tutorial, we’ll explore how we can improve client retries with two different strategies: exponential backoff and jitter.

2. Retry

In a distributed system, network communication among the numerous components can fail anytime. Client applications deal with these failures by implementing retries.

Let’s assume that we have a client application that invokes a remote service – the PingPongService.

interface PingPongService {
    String call(String ping) throws PingPongServiceException;
}

The client application must retry if the PingPongService returns a PingPongServiceException. In the following sections, we’ll look at ways to implement client retries.

3. Resilience4j Retry

For our example, we’ll be using the Resilience4j library, particularly its retry module. We’ll need to add the resilience4j-retry module to our pom.xml:

<dependency>
    <groupId>io.github.resilience4j</groupId>
    <artifactId>resilience4j-retry</artifactId>
</dependency>

For a refresher on using retries, don’t forget to check out our Guide to Resilience4j.

4. Exponential Backoff

Client applications must implement retries responsibly. When clients retry failed calls without waiting, they may overwhelm the system, and contribute to further degradation of the service that is already under distress.

Exponential backoff is a common strategy for handling retries of failed network calls. In simple terms, the clients wait progressively longer intervals between consecutive retries:

wait_interval = base * multiplier^n

where,

  • base is the initial interval, ie, wait for the first retry
  • n is the number of failures that have occurred
  • multiplier is an arbitrary multiplier that can be replaced with any suitable value

With this approach, we provide a breathing space to the system to recover from intermittent failures, or even more severe problems.

We can use the exponential backoff algorithm in Resilience4j retry by configuring its IntervalFunction that accepts an initialInterval and a multiplier.

The IntervalFunction is used by the retry mechanism as a sleep function:

IntervalFunction intervalFn =
  IntervalFunction.ofExponentialBackoff(INITIAL_INTERVAL, MULTIPLIER);

RetryConfig retryConfig = RetryConfig.custom()
  .maxAttempts(MAX_RETRIES)
  .intervalFunction(intervalFn)
  .build();
Retry retry = Retry.of("pingpong", retryConfig);

Function<String, String> pingPongFn = Retry
    .decorateFunction(retry, ping -> service.call(ping));
pingPongFn.apply("Hello");

Let’s simulate a real-world scenario, and assume that we have several clients invoking the PingPongService concurrently:

ExecutorService executors = newFixedThreadPool(NUM_CONCURRENT_CLIENTS);
List<Callable> tasks = nCopies(NUM_CONCURRENT_CLIENTS, () -> pingPongFn.apply("Hello"));
executors.invokeAll(tasks);

Let’s look at the remote invocation logs for NUM_CONCURRENT_CLIENTS equal to 4:

[thread-1] At 00:37:42.756
[thread-2] At 00:37:42.756
[thread-3] At 00:37:42.756
[thread-4] At 00:37:42.756

[thread-2] At 00:37:43.802
[thread-4] At 00:37:43.802
[thread-1] At 00:37:43.802
[thread-3] At 00:37:43.802

[thread-2] At 00:37:45.803
[thread-1] At 00:37:45.803
[thread-4] At 00:37:45.803
[thread-3] At 00:37:45.803

[thread-2] At 00:37:49.808
[thread-3] At 00:37:49.808
[thread-4] At 00:37:49.808
[thread-1] At 00:37:49.808

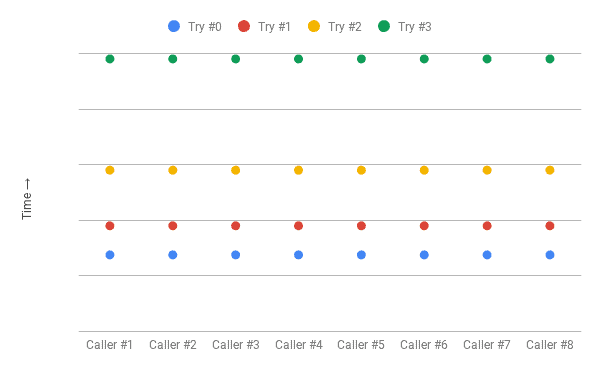

We can see a clear pattern here –  the clients wait for exponentially growing intervals, but all of them call the remote service at precisely the same time on each retry (collisions).
chart

We have addressed only a part of the problem – we do not hammer the remote service with retries anymore, but instead of spreading the workload over time, we have interspersed periods of work with more idle time. This behavior is akin to the Thundering Herd Problem.

5. Introducing Jitter

In our previous approach, the client waits are progressively longer but still synchronized. Adding jitter provides a way to break the synchronization across the clients thereby avoiding collisions. In this approach, we add randomness to the wait intervals.

wait_interval = (base * 2^n) +/- (random_interval)

where, random_interval is added (or subtracted) to break the synchronization across clients.

We’ll not go into the mechanics of computing the random interval, but randomization must space out the spikes to a much smoother distribution of client calls.

We can use the exponential backoff with jitter in Resilience4j retry by configuring an exponential random backoff IntervalFunction that also accepts a randomizationFactor:

IntervalFunction intervalFn =
  IntervalFunction.ofExponentialRandomBackoff(INITIAL_INTERVAL, MULTIPLIER, RANDOMIZATION_FACTOR);

Let’s return to our real-world scenario, and look at the remote invocation logs with jitter:

[thread-2] At 39:21.297
[thread-4] At 39:21.297
[thread-3] At 39:21.297
[thread-1] At 39:21.297

[thread-2] At 39:21.918
[thread-3] At 39:21.868
[thread-4] At 39:22.011
[thread-1] At 39:22.184

[thread-1] At 39:23.086
[thread-5] At 39:23.939
[thread-3] At 39:24.152
[thread-4] At 39:24.977

[thread-3] At 39:26.861
[thread-1] At 39:28.617
[thread-4] At 39:28.942
[thread-2] At 39:31.039

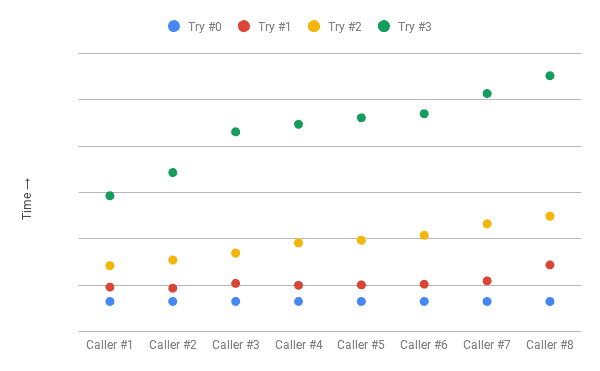

Now we have a much better spread. We have eliminated both collisions and idle time, and end up with an almost constant rate of client calls, barring the initial surge.

chart 1.png

Note: We’ve overstated the interval for illustration, and in real-world scenarios, we would have smaller gaps.

6. Conclusion

In this tutorial, we’ve explored how we can improve how client applications retry failed calls by augmenting exponential backoff with jitter.

The source code for the samples used in the tutorial is available over on GitHub.
