1. Overview

Simply put, Activiti is a workflow and Business Process Management platform.

We can get started quickly by creating a ProcessEngineConfiguration (typically based on a configuration file). From this, we can obtain a ProcessEngine – and through the ProcessEngine, we can execute workflow & BPM operations.

The API provides various services that can be used to access and manage processes. These services can provide us information about the history of processes, what’s currently running and the processes that are deployed but not running yet.

The services can also be used to define the process structure and manipulate the state of the process, i.e. run, suspend, cancel, etc.

If you are new to the API, check out our Introduction to Activiti API with Java. In this article, we’ll discuss how we can set up Activiti API within a Spring Boot application.

2. Setup With Spring Boot

Let’s see how we can setup Activiti as a Spring Boot Maven application and start using it.

2.1. Initial Setup

As usual, we need to add the maven dependency:

<dependency>
    <groupId>org.activiti</groupId>
    <artifactId>activiti-spring-boot-starter</artifactId>
</dependency>

The latest stable version of the API can be found here.

We can also generate a Spring Boot project using https://start.spring.io and select Activiti as a dependency.

Just by adding this dependency and the @EnableAutoConfiguration annotation to the Spring Boot Application, it’ll do the initial setup:

  • Create Datasource (The API requires a database to create the ProcessEngine)
  • Create and Expose the ProcessEngine bean
  • Create and Expose the Activiti services beans
  • Create the Spring Job Executor

2.2. Creating and Running a Process

Let’s construct an example of creating and running a business process. To define a process we will need to create a BPMN file.

Then, just download the BPMN file. We will need to put this file in the src/main/resources/processes folder. By default, Spring Boot will look in this folder to deploy the process definition.

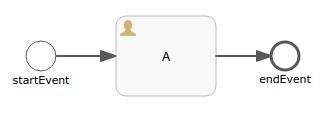

We’ll create a demo process containing one user tasks:

startEvent endEvent

The assignee of the user task is set as the Initiator of the process. The BPMN file for this process definition looks like:

 <process id="my-process" name="say-hello-process" isExecutable="true">
     <startEvent id="startEvent" name="startEvent">
     </startEvent>
     <sequenceFlow id="sequence-flow-1" sourceRef="startEvent" targetRef="A">
     </sequenceFlow>
     <userTask id="A" name="A" activiti:assignee="$INITIATOR">
     </userTask>
     <sequenceFlow id="sequence-flow-2" sourceRef="A" targetRef="endEvent">
     </sequenceFlow>
     <endEvent id="endEvent" name="endEvent">
     </endEvent>
</process>

Now, we’ll create a REST controller to handle requests to start this process:

@Autowired
private RuntimeService runtimeService;

@GetMapping("/start-process")
public String startProcess() {

    runtimeService.startProcessInstanceByKey("my-process");
    return "Process started. Number of currently running"
      + "process instances = "
      + runtimeService.createProcessInstanceQuery().count();
}

Here, runtimeService.startProcessInstanceByKey(“my-process”) starts the execution of the process whose key is “my-process”. runtimeService.createProcessInstanceQuery().count() will get us the number of process instances.

Every time we hit the path “/start-process”, a new ProcessInstance will be created and we’ll see an increment in the count of the currently running processes.

A JUnit test case shows us this behavior:

@Test
public void givenProcess_whenStartProcess_thenIncreaseInProcessInstanceCount()
  throws Exception {

    String responseBody = this.mockMvc
      .perform(MockMvcRequestBuilders.get("/start-process"))
      .andReturn().getResponse().getContentAsString();

    assertEquals("Process started. Number of currently running"
      + " process instances = 1", responseBody);

    responseBody = this.mockMvc
      .perform(MockMvcRequestBuilders.get("/start-process"))
      .andReturn().getResponse().getContentAsString();

    assertEquals("Process started. Number of currently running"
      + " process instances = 2", responseBody);

    responseBody = this.mockMvc
      .perform(MockMvcRequestBuilders.get("/start-process"))
      .andReturn().getResponse().getContentAsString();

    assertEquals("Process started. Number of currently running"
      + " process instances = 3", responseBody);
}

3. Playing With Processes

Now that we have a running process in Activiti using Spring Boot let’s extend the above example to demonstrate how we can access and manipulate the process.

3.1. Get the List of Tasks for a Given ProcessInstance

We have two user tasks A and B. When we start a process, it’ll wait for the first task A to be completed and then will execute task B. Let’s create a handler method that accepts requests to view the tasks related to a given processInstance.

The objects, like Task, cannot be sent as a response directly and hence we need to create a custom object and convert the Task to our custom object. We’ll call this class TaskRepresentation:

class TaskRepresentation {
    private String id;
    private String name;
    private String processInstanceId;

    // standard constructors
}

The handler method will look like:

@GetMapping("/get-tasks/{processInstanceId}")
public List<TaskRepresentation> getTasks(
  @PathVariable String processInstanceId) {

    List<Task> usertasks = taskService.createTaskQuery()
      .processInstanceId(processInstanceId)
      .list();

    return usertasks.stream()
      .map(task -> new TaskRepresentation(
        task.getId(), task.getName(), task.getProcessInstanceId()))
      .collect(Collectors.toList());
}

Here, taskService.createTaskQuery().processInstanceId(processInstanceId).list() uses TaskService and gets us the list of tasks related to the given processInstanceId. We can see that when we start running the process we created, we will get the task A by making a request to the method we just defined:

@Test
public void givenProcess_whenProcessInstance_thenReceivedRunningTask()
  throws Exception {

    this.mockMvc.perform(MockMvcRequestBuilders.get("/start-process"))
      .andReturn()
      .getResponse();
    ProcessInstance pi = runtimeService.createProcessInstanceQuery()
      .orderByProcessInstanceId()
      .desc()
      .list()
      .get(0);
    String responseBody = this.mockMvc
      .perform(MockMvcRequestBuilders.get("/get-tasks/" + pi.getId()))
      .andReturn()
      .getResponse()
      .getContentAsString();

    ObjectMapper mapper = new ObjectMapper();
    List<TaskRepresentation> tasks = Arrays.asList(mapper
      .readValue(responseBody, TaskRepresentation[].class));

    assertEquals(1, tasks.size());
    assertEquals("A", tasks.get(0).getName());
}

3.2. Completing a Task

Now, we will see what happens when we complete task A. We create a handler method that will handle requests to complete the task A for the given processInstance:

@GetMapping("/complete-task-A/{processInstanceId}")
public void completeTaskA(@PathVariable String processInstanceId) {
    Task task = taskService.createTaskQuery()
      .processInstanceId(processInstanceId)
      .singleResult();
    taskService.complete(task.getId());
}

taskService.createTaskQuery().processInstanceId(processInstanceId).singleResult() creates a query on the task service and gives us the task of the given processInstance. This is the UserTask A. The next line taskService.complete(task.getId) completes this task.
Hence, now the process has reached the end and the RuntimeService doesn’t contain any ProcessInstances. We can see this using the JUnit test case:

@Test
public void givenProcess_whenCompleteTaskA_thenNoProcessInstance()
  throws Exception {

    this.mockMvc.perform(MockMvcRequestBuilders.get("/start-process"))
      .andReturn()
      .getResponse();
    ProcessInstance pi = runtimeService.createProcessInstanceQuery()
      .orderByProcessInstanceId()
      .desc()
      .list()
      .get(0);
    this.mockMvc.perform(MockMvcRequestBuilders.get("/complete-task-A/" + pi.getId()))
      .andReturn()
      .getResponse()
      .getContentAsString();
    List<ProcessInstance> list = runtimeService.createProcessInstanceQuery().list();
    assertEquals(0, list.size());
}

This is how we can use Activiti services work with processes.

4. Conclusion

In this article, we went through the overview of using the Activiti API with Spring Boot*.* More information about the API can be found in the user guide. We also saw how to create a process and execute various operations on it using Activiti services.

Spring Boot makes it easy to use as we don’t need to worry about creating the database, deploying the processes or creating the ProcessEngine.

As always, implementation of all the examples we saw can be found over on GitHub.
