1. Overview
In this tutorial, we’ll learn how to write custom Spring Cloud Gateway filters.
We introduced this framework in our previous post, Exploring the New Spring Cloud Gateway, where we had a look at many built-in filters.
On this occasion we’ll go deeper, we’ll write custom filters to get the most out of our API Gateway.
First, we’ll see how we can create global filters that will affect every single request handled by the gateway. Then, we’ll write gateway filter factories, that can be applied granularly to particular routes and requests.
Finally, we’ll work on more advanced scenarios, learning how to modify the request or the response, and even how to chain the request with calls to other services, in a reactive fashion.
2. Project Setup
We’ll start by setting up a basic application that we’ll be using as our API Gateway.
2.1. Maven Configuration
When working with Spring Cloud libraries, it’s always a good choice to set up a dependency management configuration to handle the dependencies for us:
<dependencyManagement>
<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-dependencies</artifactId>
<version>Hoxton.SR4</version>
<type>pom</type>
<scope>import</scope>
</dependency>
</dependencies>
</dependencyManagement>
Now we can add our Spring Cloud libraries without specifying the actual version we’re using:
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-gateway</artifactId>
</dependency>
The latest Spring Cloud Release Train version can be found using the Maven Central search engine. Of course, we should always check that the version is compatible with the Spring Boot version we’re using in the Spring Cloud documentation.
2.2. API Gateway Configuration
We’ll assume there is a second application running locally in port 8081, that exposes a resource (for simplicity’s sake, just a simple String) when hitting /resource.
With this in mind, we’ll configure our gateway to proxy requests to this service. In a nutshell, when we send a request to the gateway with a /service prefix in the URI path, we’ll be forwarding the call to this service.
So, when we call /service/resource in our gateway, we should receive the String response.
To achieve this, we’ll configure this route using application properties:
spring:
cloud:
gateway:
routes:
- id: service_route
uri: http://localhost:8081
predicates:
- Path=/service/**
filters:
- RewritePath=/service(?<segment>/?.*), $\{segment}
And additionally, to be able to trace the gateway process properly, we’ll enable some logs as well:
logging:
level:
org.springframework.cloud.gateway: DEBUG
reactor.netty.http.client: DEBUG
3. Creating Global Filters
Once the gateway handler determines that a request matches a route, the framework passes the request through a filter chain. These filters may execute logic before the request is sent, or afterward.
In this section, we’ll start by writing simple global filters. That means, that it’ll affect every single request.
First, we’ll see how we can execute the logic before the proxy request is sent (also known as a “pre” filter)
3.1. Writing Global “Pre” Filter Logic
As we said, we’ll create simple filters at this point, since the main objective here is only to see that the filter is actually getting executed at the correct moment; just logging a simple message will do the trick.
All we have to do to create a custom global filter is to implement the Spring Cloud Gateway GlobalFilter interface, and add it to the context as a bean:
@Component
public class LoggingGlobalPreFilter implements GlobalFilter {
final Logger logger =
LoggerFactory.getLogger(LoggingGlobalPreFilter.class);
@Override
public Mono<Void> filter(
ServerWebExchange exchange,
GatewayFilterChain chain) {
logger.info("Global Pre Filter executed");
return chain.filter(exchange);
}
}
We can easily see what’s going on here; once this filter is invoked, we’ll log a message, and continue with the execution of the filter chain.
Let’s now define a “post” filter, which can be a little bit trickier if we’re not familiarized with the Reactive programming model and the Spring Webflux API.
3.2. Writing Global “Post” Filter Logic
One other thing to notice about the global filter we just defined is that the GlobalFilter interface defines only one method. Thus, it can be expressed as a lambda expression, allowing us to define filters conveniently.
For example, we can define our “post” filter in a configuration class:
@Configuration
public class LoggingGlobalFiltersConfigurations {
final Logger logger =
LoggerFactory.getLogger(
LoggingGlobalFiltersConfigurations.class);
@Bean
public GlobalFilter postGlobalFilter() {
return (exchange, chain) -> {
return chain.filter(exchange)
.then(Mono.fromRunnable(() -> {
logger.info("Global Post Filter executed");
}));
};
}
}
Simply put, here we’re running a new Mono instance after the chain completed its execution.
Let’s try it out now by calling the /service/resource URL in our gateway service, and checking out the log console:
DEBUG --- o.s.c.g.h.RoutePredicateHandlerMapping:
Route matched: service_route
DEBUG --- o.s.c.g.h.RoutePredicateHandlerMapping:
Mapping [Exchange: GET http://localhost/service/resource]
to Route{id='service_route', uri=http://localhost:8081, order=0, predicate=Paths: [/service/**],
match trailing slash: true, gatewayFilters=[[[RewritePath /service(?<segment>/?.*) = '${segment}'], order = 1]]}
INFO --- c.b.s.c.f.global.LoggingGlobalPreFilter:
Global Pre Filter executed
DEBUG --- r.netty.http.client.HttpClientConnect:
[id: 0x58f7e075, L:/127.0.0.1:57215 - R:localhost/127.0.0.1:8081]
Handler is being applied: {uri=http://localhost:8081/resource, method=GET}
DEBUG --- r.n.http.client.HttpClientOperations:
[id: 0x58f7e075, L:/127.0.0.1:57215 - R:localhost/127.0.0.1:8081]
Received response (auto-read:false) : [Content-Type=text/html;charset=UTF-8, Content-Length=16]
INFO --- c.f.g.LoggingGlobalFiltersConfigurations:
Global Post Filter executed
DEBUG --- r.n.http.client.HttpClientOperations:
[id: 0x58f7e075, L:/127.0.0.1:57215 - R:localhost/127.0.0.1:8081] Received last HTTP packet
As we can see, the filters are effectively executed before and after the gateway forwards the request to the service.
Naturally, we can combine “pre” and “post” logic in a single filter:
@Component
public class FirstPreLastPostGlobalFilter
implements GlobalFilter, Ordered {
final Logger logger =
LoggerFactory.getLogger(FirstPreLastPostGlobalFilter.class);
@Override
public Mono<Void> filter(ServerWebExchange exchange,
GatewayFilterChain chain) {
logger.info("First Pre Global Filter");
return chain.filter(exchange)
.then(Mono.fromRunnable(() -> {
logger.info("Last Post Global Filter");
}));
}
@Override
public int getOrder() {
return -1;
}
}

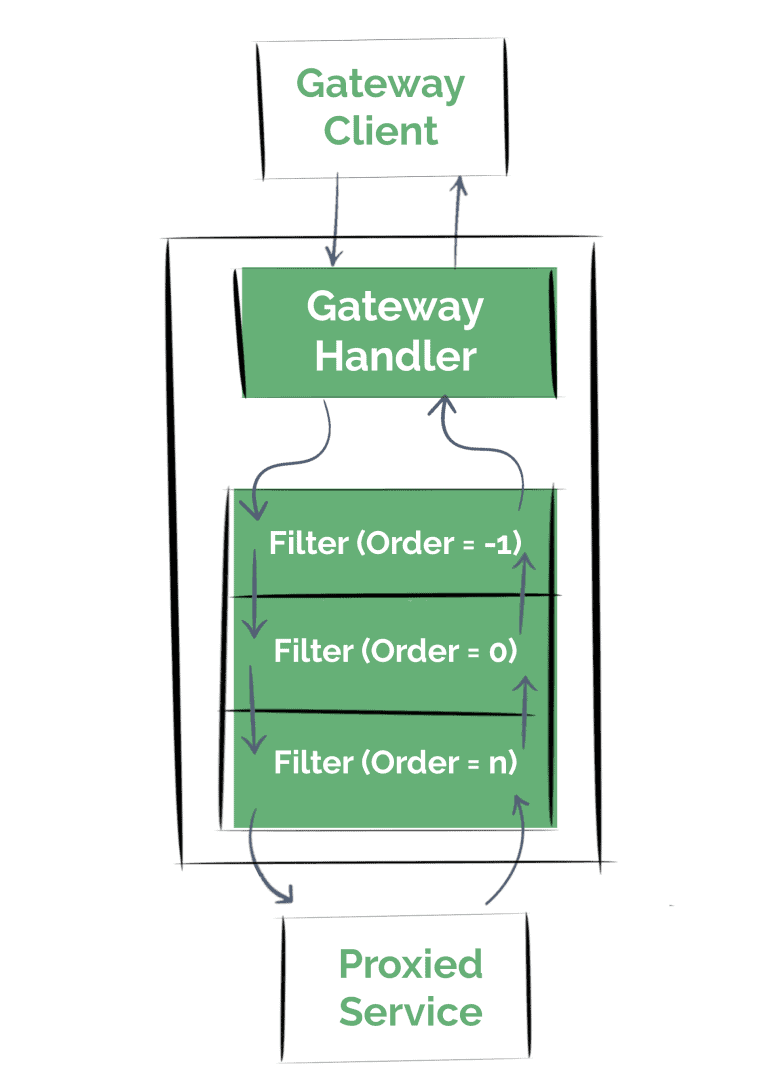

Note we can also implement the Ordered interface if we care about the placement of the filter in the chain.
Due to the nature of the filter chain, a filter with lower precedence (a lower order in the chain) will execute its “pre” logic in an earlier stage, but it’s “post” implementation will get invoked later:
*4. Creating GatewayFilters*
Global filters are quite useful, but we often need to execute fine-grained custom Gateway filter operations that apply to only some routes.
4.1. Defining the GatewayFilterFactory
In order to implement a GatewayFilter, we’ll have to implement the GatewayFilterFactory interface. Spring Cloud Gateway also provides an abstract class to simplify the process, the AbstractGatewayFilterFactory class:
@Component
public class LoggingGatewayFilterFactory extends
AbstractGatewayFilterFactory<LoggingGatewayFilterFactory.Config> {
final Logger logger =
LoggerFactory.getLogger(LoggingGatewayFilterFactory.class);
public LoggingGatewayFilterFactory() {
super(Config.class);
}
@Override
public GatewayFilter apply(Config config) {
// ...
}
public static class Config {
// ...
}
}
Here we’ve defined the basic structure of our GatewayFilterFactory. We’ll use a Config class to customize our filter when we initialize it.
In this case, for example, we can define three basic fields in our configuration:
public static class Config {
private String baseMessage;
private boolean preLogger;
private boolean postLogger;
// contructors, getters and setters...
}
Simply put, these fields are:
- a custom message that will be included in the log entry
- a flag indicating if the filter should log before forwarding the request
- a flag indicating if the filter should log after receiving the response from the proxied service
And now we can use these configurations to retrieve a GatewayFilter instance, which again, can be represented with a lambda function:
@Override
public GatewayFilter apply(Config config) {
return (exchange, chain) -> {
// Pre-processing
if (config.isPreLogger()) {
logger.info("Pre GatewayFilter logging: "
+ config.getBaseMessage());
}
return chain.filter(exchange)
.then(Mono.fromRunnable(() -> {
// Post-processing
if (config.isPostLogger()) {
logger.info("Post GatewayFilter logging: "
+ config.getBaseMessage());
}
}));
};
}
4.2. Registering the GatewayFilter with Properties
We can now easily register our filter to the route we defined previously in the application properties:
...
filters:
- RewritePath=/service(?<segment>/?.*), $\{segment}
- name: Logging
args:
baseMessage: My Custom Message
preLogger: true
postLogger: true
We simply have to indicate the configuration arguments. An important point here is that we need a no-argument constructor and setters configured in our LoggingGatewayFilterFactory.Config class for this approach to work properly.
If we want to configure the filter using the compact notation instead, then we can do:
filters:
- RewritePath=/service(?<segment>/?.*), $\{segment}
- Logging=My Custom Message, true, true
We’ll need to tweak our factory a little bit more. In short, we have to override the shortcutFieldOrder method, to indicate the order and how many arguments the shortcut property will use:
@Override
public List<String> shortcutFieldOrder() {
return Arrays.asList("baseMessage",
"preLogger",
"postLogger");
}
4.3. Ordering the GatewayFilter
If we want to configure the position of the filter in the filter chain, we can retrieve an OrderedGatewayFilter instance from the AbstractGatewayFilterFactory#apply method instead of a plain lambda expression:
@Override
public GatewayFilter apply(Config config) {
return new OrderedGatewayFilter((exchange, chain) -> {
// ...
}, 1);
}
4.4. Registering the GatewayFilter Programmatically
Furthermore, we can register our filter programmatically, too. Let’s redefine the route we’ve been using, this time by setting up a RouteLocator bean:
@Bean
public RouteLocator routes(
RouteLocatorBuilder builder,
LoggingGatewayFilterFactory loggingFactory) {
return builder.routes()
.route("service_route_java_config", r -> r.path("/service/**")
.filters(f ->
f.rewritePath("/service(?<segment>/?.*)", "$\\{segment}")
.filter(loggingFactory.apply(
new Config("My Custom Message", true, true))))
.uri("http://localhost:8081"))
.build();
}
5. Advanced Scenarios
So far, all we’ve been doing is logging a message at different stages of the gateway process.
Usually, we need our filters to provide more advanced functionality. For instance, we may need to check or manipulate the request we received, modify the response we’re retrieving, or even chain the reactive stream with calls to other different services.
Next, we’ll see examples of these different scenarios.
5.1. Checking and Modifying the Request
Let’s imagine a hypothetical scenario. Our service used to serve its content based on a locale query parameter. Then, we changed the API to use the Accept-Language header instead, but some clients are still using the query parameter.
Thus, we want to configure the gateway to normalize following this logic:
- if we receive the Accept-Language header, we want to keep that
- otherwise, use the locale query parameter value
- if that’s not present either, use a default locale
- finally, we want to remove the locale query param
Note: To keep things simple here, we’ll focus only on the filter logic; to have a look at the whole implementation we’ll find a link to the codebase at the end of the tutorial.
Let’s configure our gateway filter as a “pre” filter then:
(exchange, chain) -> {
if (exchange.getRequest()
.getHeaders()
.getAcceptLanguage()
.isEmpty()) {
// populate the Accept-Language header...
}
// remove the query param...
return chain.filter(exchange);
};
Here we’re taking care of the first aspect of the logic. We can see that inspecting the ServerHttpRequest object is really simple. At this point, we accessed only its headers, but as we’ll see next, we can obtain other attributes just as easily:
String queryParamLocale = exchange.getRequest()
.getQueryParams()
.getFirst("locale");
Locale requestLocale = Optional.ofNullable(queryParamLocale)
.map(l -> Locale.forLanguageTag(l))
.orElse(config.getDefaultLocale());
Now we’ve covered the next two points of the behavior. But we haven’t modified the request, yet. For this, we’ll have to make use of the mutate capability.
With this, the framework will be creating a Decorator of the entity, maintaining the original object unchanged.
Modifying the headers is simple because we can obtain a reference to the HttpHeaders map object:
exchange.getRequest()
.mutate()
.headers(h -> h.setAcceptLanguageAsLocales(
Collections.singletonList(requestLocale)))
But, on the other hand, modifying the URI is not a trivial task.
We’ll have to obtain a new ServerWebExchange instance from the original exchange object, modifying the original ServerHttpRequest instance:
ServerWebExchange modifiedExchange = exchange.mutate()
// Here we'll modify the original request:
.request(originalRequest -> originalRequest)
.build();
return chain.filter(modifiedExchange);
Now it’s time to update the original request URI by removing the query params:
originalRequest -> originalRequest.uri(
UriComponentsBuilder.fromUri(exchange.getRequest()
.getURI())
.replaceQueryParams(new LinkedMultiValueMap<String, String>())
.build()
.toUri())
There we go, we can try it out now. In the codebase, we added log entries before calling the next chain filter to see exactly what is getting sent in the request.
5.2. Modifying the Response
Proceeding with the same case scenario, we’ll define a “post” filter now. Our imaginary service used to retrieve a custom header to indicate the language it finally chose instead of using the conventional Content-Language header.
Hence, we want our new filter to add this response header, but only if the request contains the locale header we introduced in the previous section.
(exchange, chain) -> {
return chain.filter(exchange)
.then(Mono.fromRunnable(() -> {
ServerHttpResponse response = exchange.getResponse();
Optional.ofNullable(exchange.getRequest()
.getQueryParams()
.getFirst("locale"))
.ifPresent(qp -> {
String responseContentLanguage = response.getHeaders()
.getContentLanguage()
.getLanguage();
response.getHeaders()
.add("Bael-Custom-Language-Header", responseContentLanguage);
});
}));
}
We can obtain a reference to the response object easily, and we don’t need to create a copy of it to modify it, as with the request.
This is a good example of the importance of the order of the filters in the chain; if we configure the execution of this filter after the one we created in the previous section, then the exchange object here will contain a reference to a ServerHttpRequest that will never have any query param.
It doesn’t even matter that this is effectively triggered after the execution of all the “pre” filters because we still have a reference to the original request, thanks to the mutate logic.
5.3. Chaining Requests to Other Services
The next step in our hypothetical scenario is relying on a third service to indicate which Accept-Language header we should use.
Thus, we’ll create a new filter which makes a call to this service, and uses its response body as the request header for the proxied service API.
In a reactive environment, this means chaining requests to avoid blocking the async execution.
In our filter, we’ll start by making the request to the language service:
(exchange, chain) -> {
return WebClient.create().get()
.uri(config.getLanguageEndpoint())
.exchange()
// ...
}
Notice we’re returning this fluent operation, because, as we said, we’ll chain the output of the call with our proxied request.
The next step will be to extract the language – either from the response body or from the configuration if the response was not successful – and parse it:
// ...
.flatMap(response -> {
return (response.statusCode()
.is2xxSuccessful()) ? response.bodyToMono(String.class) : Mono.just(config.getDefaultLanguage());
}).map(LanguageRange::parse)
// ...
Finally, we’ll set the LanguageRange value as the request header as we did before, and continue the filter chain:
.map(range -> {
exchange.getRequest()
.mutate()
.headers(h -> h.setAcceptLanguage(range))
.build();
return exchange;
}).flatMap(chain::filter);
That’s it, now the interaction will be carried out in a non-blocking manner.
6. Conclusion
Now that we’ve learned how to write custom Spring Cloud Gateway filters and seen how to manipulate the request and response entities, we’re ready to make the most of this framework.
As always, all the complete examples can be found in over on GitHub. Please remember that in order to test it, we need to run integration and live tests through Maven.
