1. Introduction

This simple tutorial demonstrates the use of several asynchronous and streaming objects in Spring MVC 5.x.x.

Specifically, we’ll review three key classes:

ResponseBodyEmitter
SseEmitter
StreamingResponseBody

Also, we’ll discuss how to interact with them using a JavaScript client.

2. ResponseBodyEmitter

ResponseBodyEmitter handles async responses.

Also, it represents a parent for a number of subclasses – one of which we’ll take a closer look at below.

2.1. Server Side

It’s better to use a ResponseBodyEmitter along with its own dedicated asynchronous thread and wrapped with a ResponseEntity (which we can inject the emitter into directly):

@Controller
public class ResponseBodyEmitterController {

    private ExecutorService executor
      = Executors.newCachedThreadPool();

    @GetMapping("/rbe")
    public ResponseEntity<ResponseBodyEmitter> handleRbe() {
        ResponseBodyEmitter emitter = new ResponseBodyEmitter();
        executor.execute(() -> {
            try {
                emitter.send(
                  "/rbe" + " @ " + new Date(), MediaType.TEXT_PLAIN);
                emitter.complete();
            } catch (Exception ex) {
                emitter.completeWithError(ex);
            }
        });
        return new ResponseEntity(emitter, HttpStatus.OK);
    }
}

So, in the example above, we can sidestep needing to use CompleteableFutures, more complicated asynchronous promises, or use of the @Async annotation.

Instead, we simply declare our asynchronous entity and wrap it in a new Thread provided by the ExecutorService.

2.2. Client Side

For client-side use, we can use a simple XHR method and call our API endpoints just like in a usual AJAX operation:

var xhr = function(url) {
    return new Promise(function(resolve, reject) {
        var xmhr = new XMLHttpRequest();
        //...
        xmhr.open("GET", url, true);
        xmhr.send();
       //...
    });
};

xhr('http://localhost:8080/javamvcasync/rbe')
  .then(function(success){ //... });

3. SseEmitter

SseEmitter is actually a subclass of ResponseBodyEmitter and provides additional Server-Sent Event (SSE) support out-of-the-box.

3.1. Server Side

So, let’s take a quick look at an example controller leveraging this powerful entity:

@Controller
public class SseEmitterController {
    private ExecutorService nonBlockingService = Executors
      .newCachedThreadPool();

    @GetMapping("/sse")
    public SseEmitter handleSse() {
         SseEmitter emitter = new SseEmitter();
         nonBlockingService.execute(() -> {
             try {
                 emitter.send("/sse" + " @ " + new Date());
                 // we could send more events
                 emitter.complete();
             } catch (Exception ex) {
                 emitter.completeWithError(ex);
             }
         });
         return emitter;
    }
}

Pretty standard fare, but we’ll notice a few differences between this and our usual REST controller:

First, we return a SseEmitter
Also, we wrap the core response information in its own Thread
Finally, we send response information using emitter.send()

3.2. Client Side

Our client works a little bit differently this time since we can leverage the continuously connected Server-Sent Event Library:

var sse = new EventSource('http://localhost:8080/javamvcasync/sse');
sse.onmessage = function (evt) {
    var el = document.getElementById('sse');
    el.appendChild(document.createTextNode(evt.data));
    el.appendChild(document.createElement('br'));
};

4. StreamingResponseBody

Lastly, we can use StreamingResponseBody to write directly to an OutputStream before passing that written information back to the client using a ResponseEntity.

4.1. Server Side

@Controller
public class StreamingResponseBodyController {

    @GetMapping("/srb")
    public ResponseEntity<StreamingResponseBody> handleRbe() {
        StreamingResponseBody stream = out -> {
            String msg = "/srb" + " @ " + new Date();
            out.write(msg.getBytes());
        };
        return new ResponseEntity(stream, HttpStatus.OK);
    }
}

4.2. Client Side

Just like before, we’ll use a regular XHR method to access the controller above:

var xhr = function(url) {
    return new Promise(function(resolve, reject) {
        var xmhr = new XMLHttpRequest();
        //...
        xmhr.open("GET", url, true);
        xmhr.send();
        //...
    });
};

xhr('http://localhost:8080/javamvcasync/srb')
  .then(function(success){ //... });

Next, let’s take a look at some successful uses of these examples.

5. Bringing It All Together

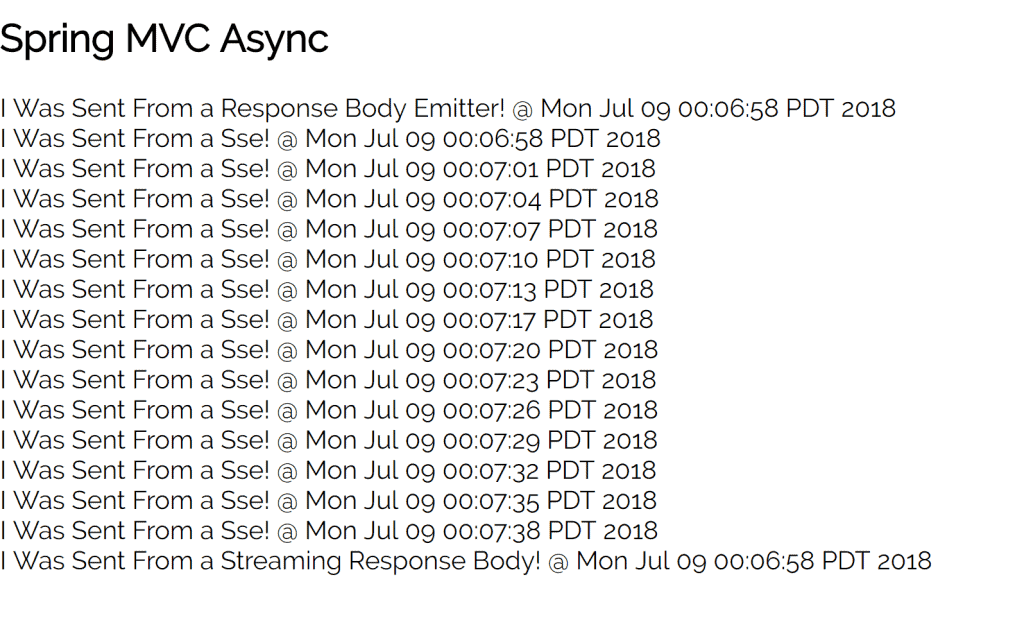

After we’ve successfully compiled our server and run our client above (accessing the supplied index.jsp), we should see the following in our browser:

SpringMVCAsyncResponseReques.v3

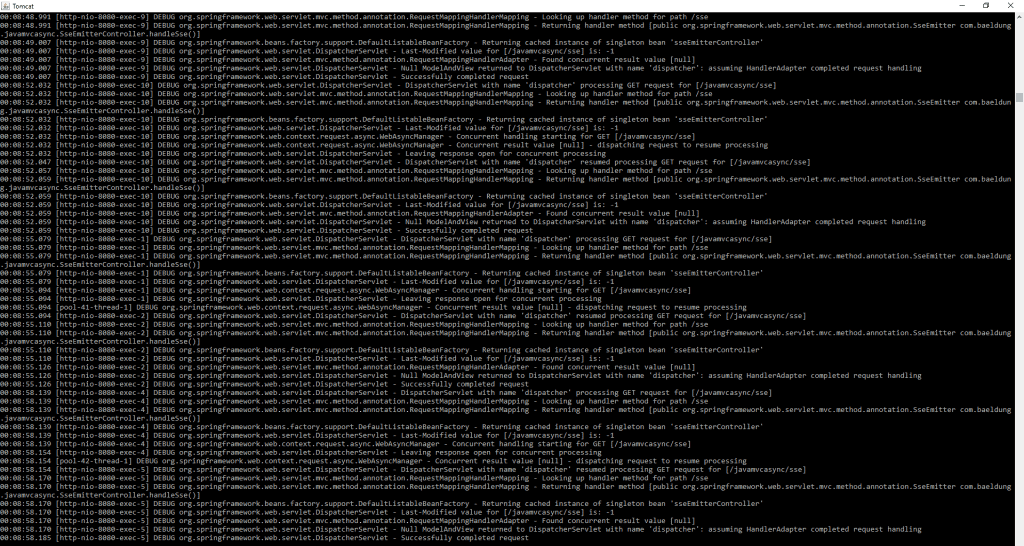

And the following in our terminal:

Terminal

We can also call the endpoints directly and see them streaming responses appear in our browser.

6. Conclusion

While Future and CompleteableFuture have proven robust additions to Java and Spring, we now have several resources at our disposal to more adequately handle asynchronous and streaming data for highly-concurrent web applications.

Finally, check out the complete code examples over on GitHub.
