1. Overview
In this tutorial, we’ll create a simple web application that implements messaging using the new WebSocket capabilities introduced with Spring Framework 4.0.
WebSockets is a bidirectional, full-duplex, persistent connection between a web browser and a server. Once a WebSocket connection is established, the connection stays open until the client or server decides to close this connection.
A typical use case could be when an app involves multiple users communicating with each other, such as in a chat. We will build a simple chat client in our example.
2. Maven Dependencies
Since this is a Maven-based project, we first add the required dependencies to the pom.xml:
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-websocket</artifactId>
<version>5.2.2.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-messaging</artifactId>
<version>5.2.2.RELEASE</version>
</dependency>
In addition, we need to add the Jackson dependencies since we’ll use JSON to build the body of our messages.
This allows Spring to convert our Java object to/from JSON:
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-core</artifactId>
<version>2.10.2</version>
</dependency>
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-databind</artifactId>
<version>2.10.2</version>
</dependency>
Look for the newest version of the libraries above on Maven Central.
3. Enable WebSocket in Spring
First, we enable the WebSocket capabilities. In order to do this, we need to add a configuration to our application and annotate this class with @EnableWebSocketMessageBroker.
As its name suggests, it enables WebSocket message handling, backed by a message broker:
@Configuration
@EnableWebSocketMessageBroker
public class WebSocketConfig extends AbstractWebSocketMessageBrokerConfigurer {
@Override
public void configureMessageBroker(MessageBrokerRegistry config) {
config.enableSimpleBroker("/topic");
config.setApplicationDestinationPrefixes("/app");
}
@Override
public void registerStompEndpoints(StompEndpointRegistry registry) {
registry.addEndpoint("/chat");
registry.addEndpoint("/chat").withSockJS();
}
}
Here we can see that the method configureMessageBroker is used to configure the message broker.
First, we enable an in-memory message broker to carry the messages back to the client on destinations prefixed with “/topic”.
We complete our simple configuration by designating the “/app” prefix to filter destinations targeting application annotated methods (via @MessageMapping).
The registerStompEndpoints method registers the “/chat” endpoint, enabling Spring’s STOMP support. Keep in mind that we are also adding an endpoint here that works without the SockJS for the sake of elasticity.
This endpoint, when prefixed with “/app”, is the endpoint that the ChatController.send() method is mapped to handle.
It also enables the SockJS fallback options so that alternative messaging options may be used if WebSockets are not available. This is useful since WebSocket is not supported in all browsers yet and may be precluded by restrictive network proxies.
The fallbacks let the applications use a WebSocket API but gracefully degrade to non-WebSocket alternatives when necessary at runtime.
4. Create the Message Model
Now that we’ve set up the project and configured the WebSocket capabilities, we need to create a message to send.
The endpoint will accept messages containing the sender name and a text in a STOMP message whose body is a JSON object.
The message might look like this:
{
"from": "John",
"text": "Hello!"
}
To model the message carrying the text, we can create a simple Java object with from and text properties:
public class Message {
private String from;
private String text;
// getters and setters
}
By default, Spring will use the Jackson library to convert our model object to and from JSON.
5. Create a Message-Handling Controller
As we’ve seen, Spring’s approach to working with STOMP messaging is to associate a controller method to the configured endpoint. We can do this through the @MessageMapping annotation.
The association between the endpoint and the controller gives us the ability to handle the message if needed:
@MessageMapping("/chat")
@SendTo("/topic/messages")
public OutputMessage send(Message message) throws Exception {
String time = new SimpleDateFormat("HH:mm").format(new Date());
return new OutputMessage(message.getFrom(), message.getText(), time);
}
In our example, we’ll create another model object named OutputMessage to represent the output message sent to the configured destination. We populate our object with the sender and the message text taken from the incoming message and enrich it with a timestamp.
After handling our message, we send it to the appropriate destination defined with the @SendTo annotation. All subscribers to the “*/topic/messages*” destination will receive the message.
6. Create a Browser Client
After making our configurations in the server-side, we’ll use the sockjs-client library to build a simple HTML page that interacts with our messaging system.
First, we need to import the sockjs and stomp JavaScript client libraries.
Next, we can create a connect() function to open the communication with our endpoint, a sendMessage() function to send our STOMP message and a disconnect() function to close the communication:
<html>
<head>
<title>Chat WebSocket</title>
<script src="resources/js/sockjs-0.3.4.js"></script>
<script src="resources/js/stomp.js"></script>
<script type="text/javascript">
var stompClient = null;
function setConnected(connected) {
document.getElementById('connect').disabled = connected;
document.getElementById('disconnect').disabled = !connected;
document.getElementById('conversationDiv').style.visibility
= connected ? 'visible' : 'hidden';
document.getElementById('response').innerHTML = '';
}
function connect() {
var socket = new SockJS('/chat');
stompClient = Stomp.over(socket);
stompClient.connect({}, function(frame) {
setConnected(true);
console.log('Connected: ' + frame);
stompClient.subscribe('/topic/messages', function(messageOutput) {
showMessageOutput(JSON.parse(messageOutput.body));
});
});
}
function disconnect() {
if(stompClient != null) {
stompClient.disconnect();
}
setConnected(false);
console.log("Disconnected");
}
function sendMessage() {
var from = document.getElementById('from').value;
var text = document.getElementById('text').value;
stompClient.send("/app/chat", {},
JSON.stringify({'from':from, 'text':text}));
}
function showMessageOutput(messageOutput) {
var response = document.getElementById('response');
var p = document.createElement('p');
p.style.wordWrap = 'break-word';
p.appendChild(document.createTextNode(messageOutput.from + ": "
+ messageOutput.text + " (" + messageOutput.time + ")"));
response.appendChild(p);
}
</script>
</head>
<body onload="disconnect()">
<div>
<div>
<input type="text" id="from" placeholder="Choose a nickname"/>
</div>
<br />
<div>
<button id="connect" onclick="connect();">Connect</button>
<button id="disconnect" disabled="disabled" onclick="disconnect();">
Disconnect
</button>
</div>
<br />
<div id="conversationDiv">
<input type="text" id="text" placeholder="Write a message..."/>
<button id="sendMessage" onclick="sendMessage();">Send</button>
<p id="response"></p>
</div>
</div>
</body>
</html>
7. Testing the Example
To test our example, we can open a couple of browser windows and access the chat page:
http://localhost:8080
Once this is done, we can join the chat by entering a nickname and hitting the connect button. If we compose and send a message, we can see it in all browser sessions that have joined the chat.

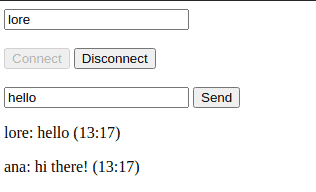

Take a look at the screenshot:
8. Conclusion
In this article, we explored Spring’s WebSocket support. We’ve seen its server-side configuration and built a simple client-side counterpart using sockjs and stomp JavaScript libraries.
The example code can be found in the GitHub project.
