1. Overview

In this tutorial, we’ll talk about the problem of finding the distance between the farthest pair of points from a given set of points.

First, we’ll define the problem and provide an example to explain it. Then, we’ll present two different approaches to solving it and work through their implementations and time complexity.

2. Defining the Problem

Suppose we have a set of N points in a cartesian coordinate on the 2D plane. We were asked to find the maximum distance between all the possible pairs of points. (Recall the distance between two points \boldsymbol{P} and \boldsymbol{Q} equals the Euclidean distance \boldsymbol{\sqrt{(P.x - Q.x)^{2} + (P.y - Q.y)^{2} } }).

Let’s take a look at the following example:

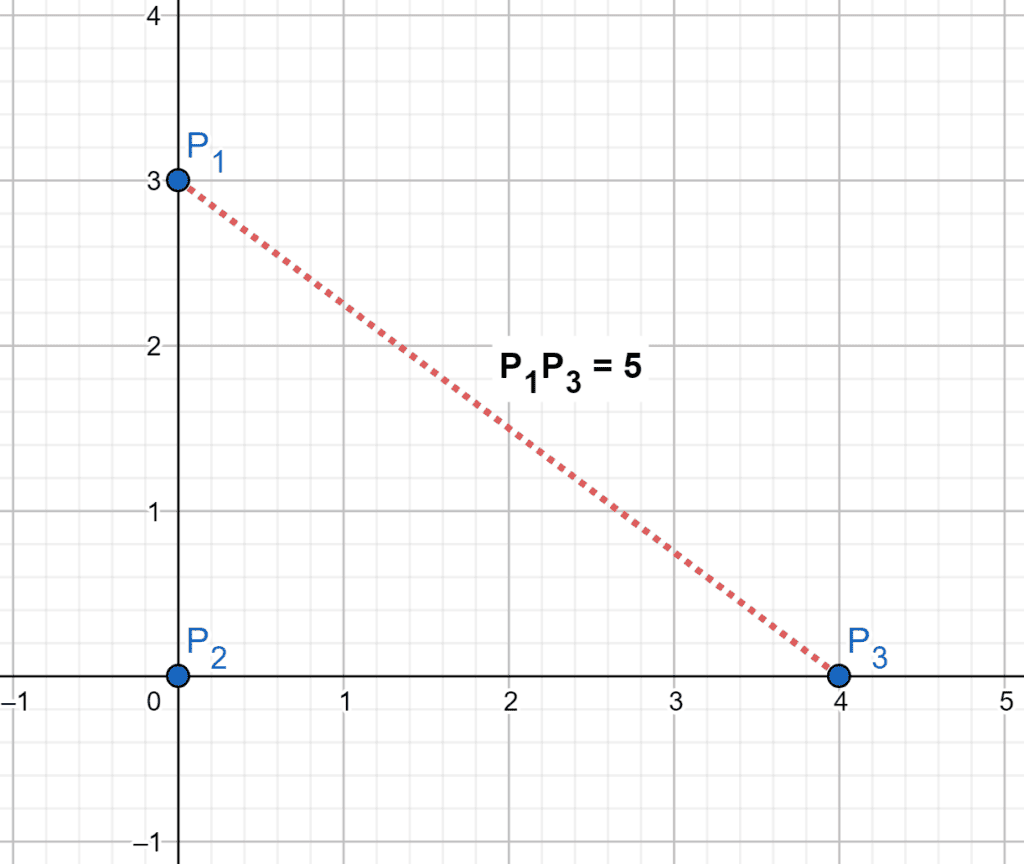

Given an N = 3 and points P_1(0, 3), P_2(0, 0) and P_3(4, 0):

geo1We have three possible pair of points:

  • P_1 - P_2 with distance 3.
  • P_1 - P_3 with distance 5.
  • P_2 - P_3 with distance 4.

As we can see, the maximum distance is between points P_1 and P_3, and it’s equal to 5.

3. Naive Approach

3.1. Main Idea

The main idea of this approach is to brute force all the possible pairs of points and get the pair with maximum distance.

Initially, we’ll go through every point that could potentially be the first point in the desired pair. Then, we try it with all the other points for each point. After that, for each pair, we try to maximize the maximum distance that we have so far with the distance between the points of the current pair.

Finally, the answer will equal the maximum distance between all possible pairs of points.

3.2. Algorithm

Let’s take a look at the implementation of the algorithm:

algorithm NaiveApproach(Points):
    // INPUT
    //    Points = a set of points on a 2D plane
    // OUTPUT
    //    The maximum distance between a pair of points in Points

    answer <- 0

    for i <- 0 to length(Points) - 1:
        for j <- i + 1 to length(Points) - 1:
            if Distance(Points[i], Points[j]) > answer:
                answer <- Distance(Points[i], Points[j])

    return answer

Initially, we declare the MaximumDistance function that will return the maximum distance between all possible pairs of points. The function will have one parameter, Points, representing the given set of points.

Next, we declare answer, which will store the maximum distance, and initially, it equals 0. Then, we’ll brute force all possible pairs of points. For each point, we iterate over all other points and check the distance between the points of the current pair. If the distance is greater than the current answer, we update answer to equal the distance between the points of the current pair.

Finally, the answer will equal the maximum possible distance between any pair of points.

3.3. Complexity

The time complexity of this algorithm is \boldsymbol{O(N^2)} , where N is the number of the given points. This complexity is because, for each point, we are iterating over all other points.

4. Rotate Calipers Approach

4.1. Main Idea

The main idea behind this approach is that the most distance pair of points will be from the vertices of the convex hull of the given set of points, and the maximum distance we could get is equal to the diameter of that convex polygon.

We’ll split this approach into two phases:

  1. Convex Hull: we’ll build the convex hull of the given set of points since the desired pair of points will belong to the vertices of the convex hull. The reason behind that is if we take a line segment defined by a pair of points that lies inside the convex hull, we could extend the ends of that line segment to touch the boundary of the convex hull. Therefore, we’ll get a better solution.
  2. Convex polygon diameter: the farthest pair of points we could get from the vertices of a convex polygon will be the pair of vertices that define the diameter of that polygon.

Therefore, the maximum distance is the length of the convex hull’s diameter formed from the given set of points.

4.2. Convex Hull

Let’s take a look at the implementation of building a convex hull algorithm:

algorithm ConvexHull(Points):
    // INPUT
    //    Points = a set of points in the 2D plane
    // OUTPUT
    //    CH = the convex hull vertices from the given set of points

    start_point <- MinX(Points)
    Points.remove(start_point)
    polarSort(Points, start_point)
    CH <- an empty list

    CH.add(start_point)

    for i <- 0 to length(Points) - 1:
        while CH.size() >= 2:
            size <- CH.size()
            vec1 <- Vector(CH[size - 2], CH[size - 1])
            vec2 <- Vector(CH[size - 2], Points[i])

            if CrossProduct(vec1, vec2) <= 0:
                break

            CH.pop()

        CH.add(Points[i])

    return CH

Initially, we have the ConvexHull function that will return the convex hull vertices defined by the given set of points. The function will have one parameter Points represent the set of the given points.

First, we declare the start\_ point, which will be the first vertex of the convex hull, and it’s equal to the point with the minimum value of x-coordinate since it’s an extreme point and we can guarantee that it’s from the convex hull vertices.

Second, we remove the start\_ point from the Points set, then we’ll sort the rest of the points with respect to the start\_ point according to their slope:

geo2

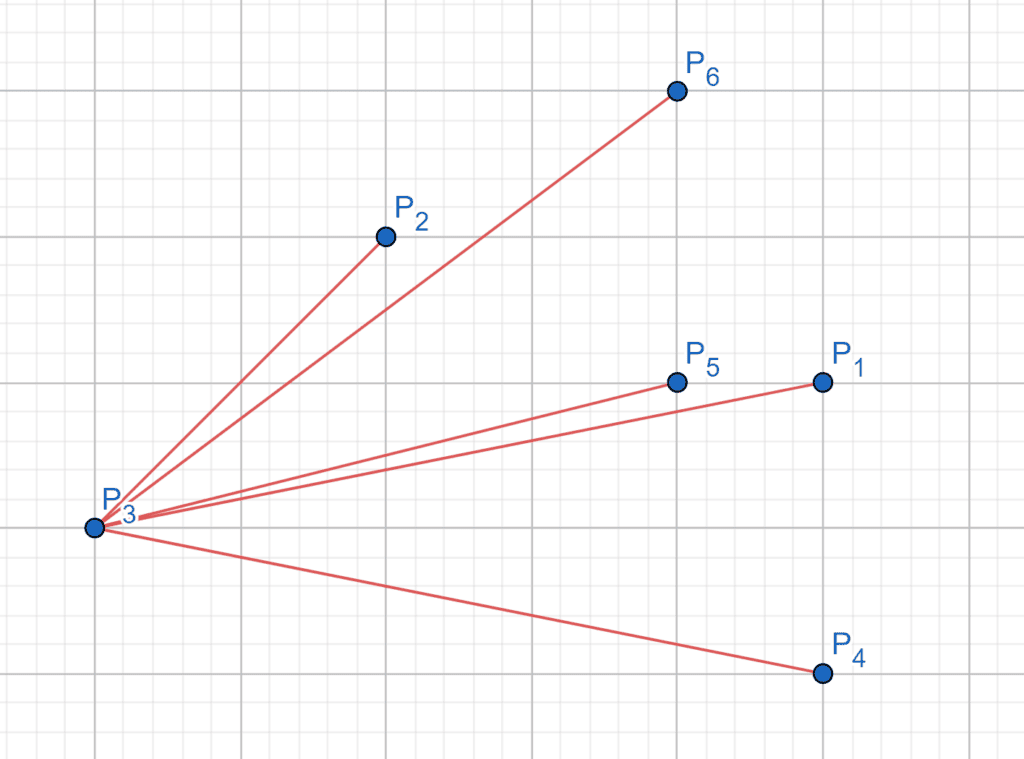

As we can see, the point P_3 is the start\_ point since it’s the point with the minimum x-coordinate value, and the order of the rest of the points with respect to the start\_ point according to their slopes will be P_2 \rightarrow P_6 \rightarrow P_5 \rightarrow P_1 \rightarrow P_4.

Third, declare the CH list, which will store the vertices of the convex hull. We add the start\_ point to CH since it’s from the convex hull vertices. Then, we iterate over the sorted points.

We’ll make two vectors. The first one represents the vector between the last two points in the current convex hull, and the other one will be between the point before the last and existing points. For each point, while we have at least two points in the convex hull, we want to check if the last point is one of the vertices of the convex hull or not.

If the cross-product of these two vectors is less than or equal to zero, we’ll make a right turn by adding the current point. So, the last point is valid, and we break out of the loop. Otherwise, we make a left turn, which means the current point is better than the last one. So, we pop the last point out of the CH. In the end, we append the current point to the convex hull:

geo3

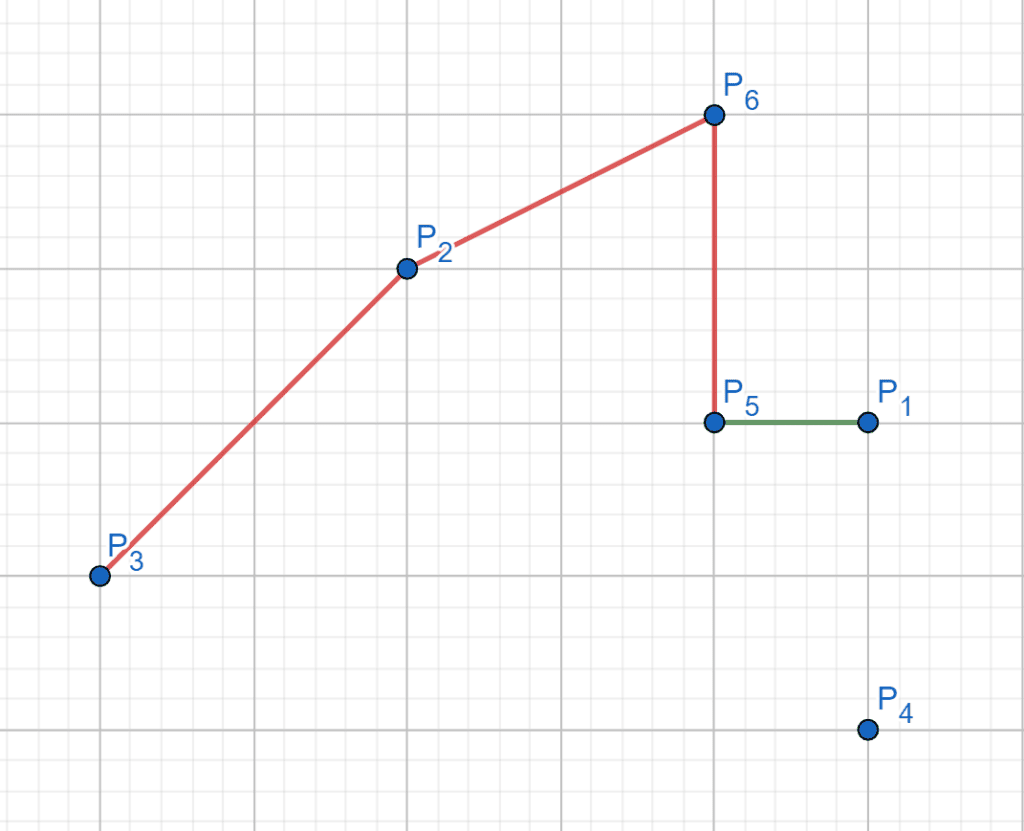

As we can see, the current CH have points P_3, P_2, P_6 and P_5. When we want to add P_1 to the convex hull, it will make a left turn with the last two points. Therefore, we pop the last point P_5 from the CH.

Finally, the CH will have the vertices of the convex hull sorted in clockwise order.

4.3. Convex Polygon Diameter

Let’s take a look at the implementation of the algorithm:

algorithm RotateCalipersApproach(Points):
    // INPUT
    //    Points = a list of points on the 2D plane
    // OUTPUT
    //    The maximum distance between any pair of points

    CH <- ConvexHull(Points)
    N <- CH.size()
    K <- 1

    while K < N:
        curArea <- Area(CH[0], CH[N - 1], CH[K])
        nxtArea <- Area(CH[0], CH[N - 1], CH[K + 1])

        if curArea > nxtArea:
            break

        K <- K + 1

    P <- 0
    Q <- K
    answer <- Distance(CH[P], CH[Q])

    while P <= K and Q < N:
        while Q < N:
            curArea <- Area(CH[P], CH[P + 1], CH[Q])
            nxtArea <- Area(CH[P], CH[P + 1], CH[(Q + 1) mod N])

            if curArea > nxtArea:
                break

            Q <- Q + 1

            if Distance(CH[P], CH[Q mod N]) > answer:
                answer <- Distance(CH[P], CH[Q mod N])

        P <- P + 1

    return answer

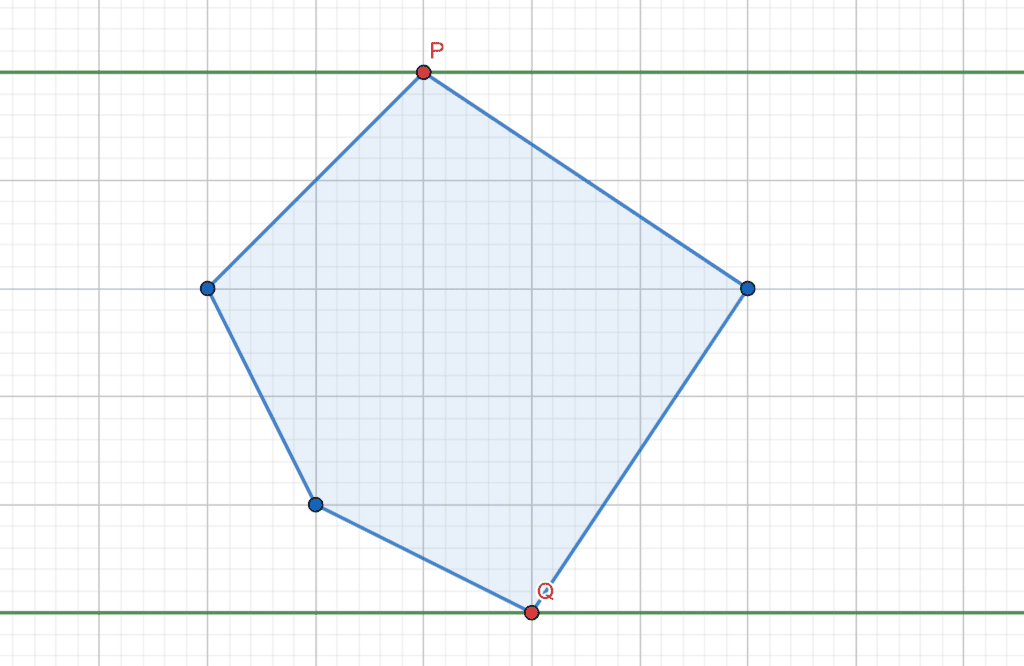

Initially, we have the MaximumDistance function as the previous approach. The maximum distance will equal the diameter’s length of the convex hull. In addition, the length of the diameter is equal to the maximum value among all the antipodal pairs’ distances. (Recall a pair of polygon’s vertices \boldsymbol{P} and \boldsymbol{Q} called an antipodal pair if \boldsymbol{P} and \boldsymbol{Q} lie on parallel tangent lines of support).

First, we have CH equal to the convex hull of the given points. Also, we declare N, which is equal to the size of the convex polygon. Then, have a pointer K, representing the position of the farthest point to the line segment defined by the first point and the last point of the convex polygon, which will be an antipodal point with the first point.

After that, we keep moving the K pointer while the area of the Triangle(CP[0], CP[N - 1], CP[K]) is less than the area of Triangle(CP[0], CP[N - 1], CP[K + 1]):

geo4

Second, we have an antipodal pair P = 0 and Q = K, now we’ll use the rotate calipers technique to get all the antipodal pairs, while we’re moving the first pointer P, we’ll keep moving Q to be as far as possible from segment CH[P], CH[P + 1]. If the distance between the current antipodal pair is greater than the current answer, then we update the answer to be equal to that value.

Finally, the answer will equal the maximum possible distance between any pair of points.

4.4. Complexity

The time complexity of this algorithm is \boldsymbol{O(N \times Log_2(N))} , where N is the number of the given points. The reason behind this complexity is that the complexity of building the convex hull is O(N \times Log_2(N)) because we sort the points before building the convex hull.

Also, the time complexity of the rotate caliper technique is O(N) because each of the two pointers will pass on the polygon vertices at most once. Thus, the total complexity of this approach is O(N \times Log_2(N)).

5. Conclusion

In this article, we discussed the problem of finding the distance between the farthest pair of points from a given set of points. We provided an example to explain the problem and explored two different approaches to solve it, where the second one had a better time complexity.

Finally, we walked through their implementations and explained the idea behind each of them.
