1. Introduction
In software testing, we explore various techniques to ensure the quality of our applications. In this tutorial, we’ll explore the concept of state transition testing.
2. Overview of State Transition
State transition testing examines how a software system changes from one state to another in response to events. States are various conditions or modes that a system can be in. Specific events trigger transitions and depict the movements between these states.
In this approach, we analyze how software behaves under different scenarios, considering the events that cause transitions and the actions that follow. State transition testing is beneficial for systems with a clear sequence of states and events. This is because it systematically examines how the software responds to different scenarios, ensuring proper behavior during transitions between states triggered by specific events.
Moreover, this approach enhances test coverage and aids in identifying potential defects in systems where state changes follow a well-defined sequence. For example, let’s say we have a traffic light system that changes signals based on time of day, traffic volume, and pedestrian presence. State transition testing would help ensure the system responds correctly to different combinations of these factors.
3. State Transition Diagrams: A Visual Representation
We visualize the state transition testing using state transition diagrams. These diagrams provide a graphical representation of a system’s states, transitions, events, and actions.

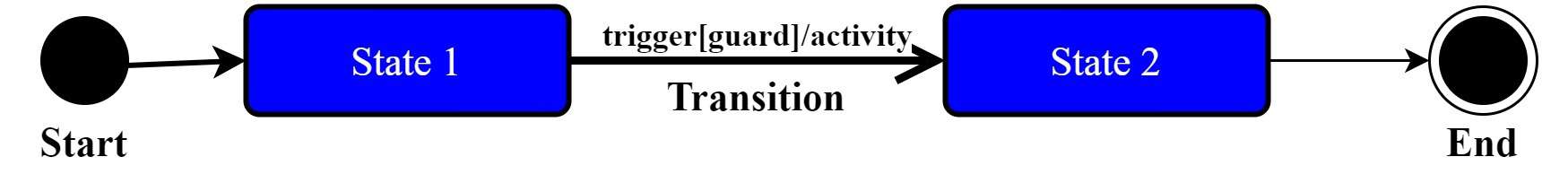

State transition diagrams consist of states represented by rectangles, transitions shown as arrows between states, events triggering transitions, and actions associated with transitions:
Circles denote the start and end states.
Such diagrams give us a clear and structured view of how our software behaves in response to different inputs. So, they help us identify potential defects, verify correct state transitions, and ensure that the software performs as intended.
The state transition diagrams provide the basis for developing test cases and examining the behavior of our software.
4. Applying State Transition Testing
To apply state transition testing effectively, we follow these steps:
- Identifying states and events: We begin by understanding the different states of the system and the events that trigger state transitions. This involves analyzing system requirements and specifications
- Creating state transition diagrams: We develop state transition diagrams to visualize the states, transitions, events, and actions. These diagrams provide a clear overview of the software’s behavior
- Deriving test cases: We derive test cases from the state transition diagrams that cover all possible state transitions and event combinations. For each test case, we specify the initial state, event trigger, and expected outcome
- Executing tests: We execute the derived test cases on the software and observe how the system transitions between states. This step determines whether the expected actions are performed accurately
- Analyzing results: In the final step, we evaluate the test results to ensure the software behaves as intended. Finally, we document and address any discrepancies or deviations from expected behavior
4.1. Example
Let’s explore a real-world example to understand state transition testing better. We’ll explore how state transition testing can be applied to an Automated Teller Machine (ATM) system.

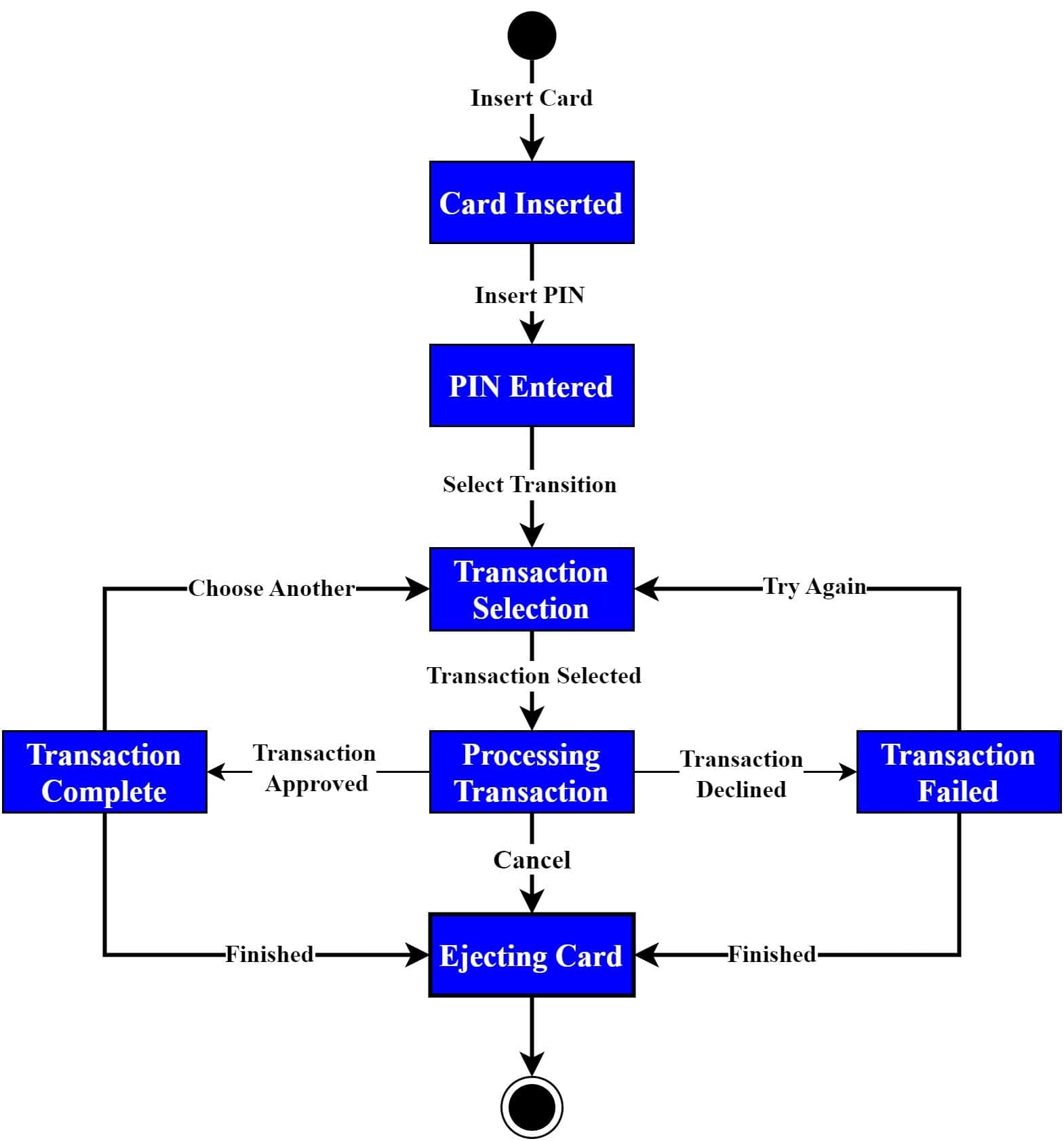

The ATM system undergoes various states and transitions based on user interactions:
We first identify states within the ATM system, such as “Card Inserted,” “PIN Entered,” and”Transaction Selection. After the identification of states, we’ll define events that trigger transitions between these states.
We depict transitions through a diagram, illustrating the progression from one state to another when an event occurs. For example, we move from “Card Inserted” to “PIN Entered” upon encountering the “Insert PIN” event.
In all these transactions, we incorporate conditions that influence these transitions, such as the condition “If the PIN is valid” for the shift from “PIN Entered” to “Transaction Selection.”
4.2. Test Cases
We formulate test cases based on the state transition diagram, covering scenarios like card insertion without subsequent PIN entry, entry of an incorrect PIN, selection of distinct transaction types, rejection of a transaction, and successful transaction completion.
Moreover, we test the ATM system using pre-planned scenarios to make sure that the user interactions lead to seamless state transitions. After the tests are done, we analyze the results to confirm that the actual state transitions match the expected ones, as shown in the state transition diagram. Finally, we document and report any identified disparities and potential defects in the system.
5. Advantages and Limitations of State Transition Testing
State transition testing has advantages and limitations that influence its application and efficacy in software testing.
5.1. Advantages
We use state transition testing to explore software behavior across diverse scenarios. That way, we ensure systematic coverage of various conditions by mapping out states, transitions, and events. Therefore, this approach allows us to identify critical pathways involving state transitions and events.
State transition diagrams offer a clear and easy-to-understand depiction of complex software actions. This clarity enhances understanding and fosters effective communication among our testing team and stakeholders.
Additionally, our test case development process benefits from state transition diagrams, guiding us to identify relevant test scenarios and ensuring systematic coverage of these scenarios. This leads to the creation of comprehensive and well-structured test cases.
5.2. Limitations
State transition testing has certain limitations. Managing complexity can be time-consuming for complex systems with numerous states, transitions, and events.
The thoroughness of our state transition testing relies on a complete model. Therefore, missing states or transitions could result in inadequate test coverage, leaving defects undetected.
Furthermore, state transition diagrams primarily capture static software behavior. Dynamic elements like timing or concurrent events might be inadequately represented, limiting our test coverage.
During state transition testing, we focus only on explicit transitions that occur due to specific events. However, this approach may result in overlooking implicit transitions and unforeseen interactions between states, creating blind spots in the testing process.
6. Conclusion
In this article, we learned the concepts of state transition testing, which offers a systematic approach to validating software behavior. This technique helps us uncover defects, verify correct transitions, and enhance the overall reliability of the software.
We can create effective state transition diagrams and derive meaningful test cases by understanding a system’s states, events, and actions. Incorporating state transition testing into our testing process contributes to delivering high-quality software that meets user expectations.
However, we should also be aware of its limitations and supplement it with other testing methods, such as boundary value analysis and equivalence partitioning, to ensure a comprehensive and effective testing strategy.
