1. Introduction
In this tutorial, we’ll explore the intricate world of tiered architectures, dissecting the evolution from the simplicity of one-tier systems to the complexity of N-tier and microservice architectures. Understanding these architectures is crucial for designing scalable, maintainable, robust software systems.
2. What Is a Tier in Software Architecture?
In software architecture, tiers represent the logical or functional distribution of components in a system. They define the organization and separation of responsibilities within an application. These tiers or layers contribute to the modularity, scalability, and maintainability of the overall system. Layers are conceptual divisions that allow developers to manage and organize the codebase effectively.
3. Different Types of Layers in Software Architecture
In this section, we explore the diverse layers in software architecture, each serving a unique purpose. From overseeing hardware in the Physical Layer to organizing components conceptually in the Logical Layer and managing data and user interfaces, these layers form the backbone of system functionality.
3.1. Physical Layer
The Physical Layer is dedicated to overseeing the system’s hardware components, encompassing servers, databases, and other tangible infrastructure elements. It ensures the seamless integration and functionality of the system’s hardware components, laying the foundation for robust and efficient operations.
3.2. Logical Layer
At the heart of the architecture, the Logical Layer concentrates on the systematic organization of software components. Providing a high-level abstraction, this layer offers a comprehensive overview of the system’s functionalities. It serves as the conceptual framework that guides the development and execution of software elements, ensuring a cohesive and purposeful structure.
3.3. Data Layer
The Data Layer takes charge of the intricate data management, storage, retrieval, and processing processes. This involves the orchestration of databases, data warehouses, and data management systems. By efficiently managing data resources, this layer plays a pivotal role in optimizing the overall performance and responsiveness of the system.
3.4. UI Layer (User Interface)
The User Interface (UI) Layer assumes control over the presentation and user interaction facets of the application. Components within this layer include user interfaces, dashboards, and various user experience elements. It strives to create an intuitive and engaging interface, enhancing the overall user experience and satisfaction.
3.5. Other Layers
In addition to the core layers, specific architectures may incorporate supplementary layers such as the business, application, service, and more. Each of these layers is meticulously designed to fulfill a distinct purpose, contributing synergistically to the architecture’s efficacy. These additional layers enrich the system’s overall functionality, addressing specific requirements and ensuring a comprehensive and adaptable architectural framework.
4. Commonly Found Tier Systems
In this section, we explore commonly found tier systems, ranging from the monolithic one-tier architecture, suitable for simpler applications, to the two-tier client-server architecture, ideal for medium-sized projects. The three-tier data-server-like architecture enhances scalability, while the N-tier information-server architecture allows for an arbitrary number of specialized tiers, promoting modularity and distributed functionality.
4.1. One-Tier (Monolithic) Architecture

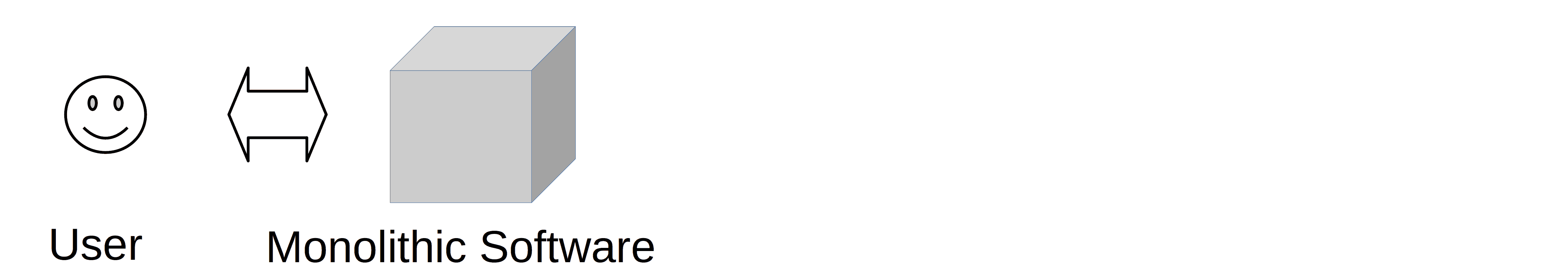

Referred to as monolithic architecture, the One-Tier system consolidates all components, spanning the user interface to data storage, within a single executable or process. Predominantly employed for simpler applications, this architecture streamlines development and deployment processes:
4.2. Two-Tier (Client-Server) Architecture

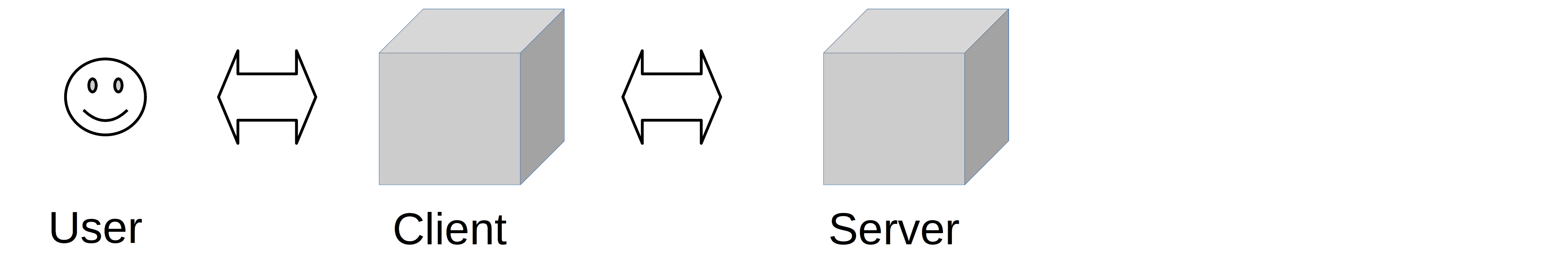

The Two-Tier architecture bifurcates the application into two fundamental components: the client and the server. The client assumes responsibility for managing the user interface, while the server handles crucial functions such as data storage and business logic. Ideal for medium-sized applications, this architecture optimizes performance and resource allocation:
4.3. Three-Tier (Data-Server) Architecture

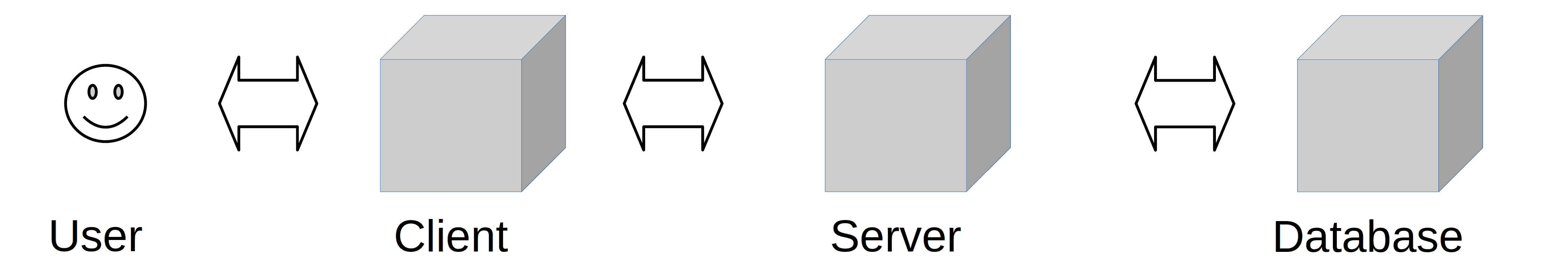

Extending the structural hierarchy, the Three-Tier architecture segments the application into presentation, application, and data tiers. This segregation enhances scalability and maintainability by effectively separating concerns. Well-suited for complex systems, this architecture ensures a more organized and adaptable development environment:
4.4. N-Tier (Information-Server) Architecture

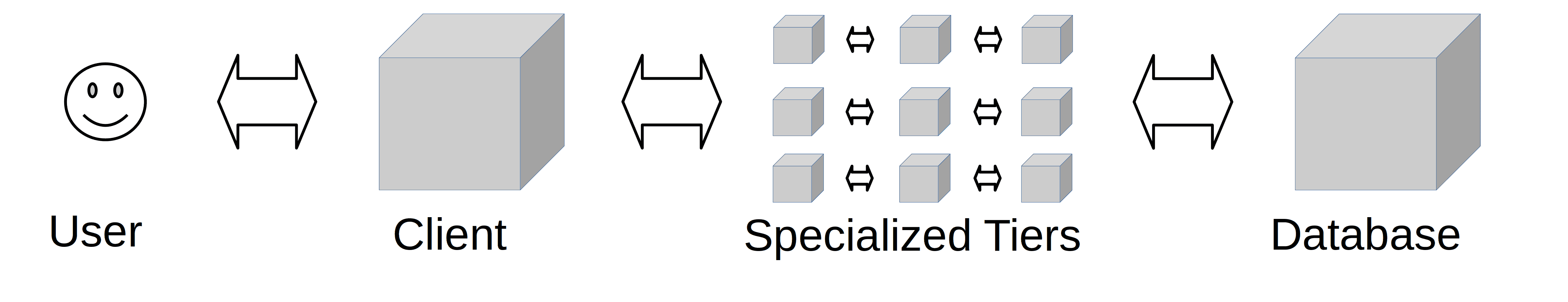

The N-Tier architecture builds upon the principles of the Three-Tier model, allowing for an arbitrary number of specialized tiers. Each tier focuses on specific functionalities, fostering a modular and distributed approach to system development. This architecture facilitates the creation of intricate and scalable applications with a cohesive yet flexible structure:
5. Typical Variations in N-Tier Architectures
In this section, we explore diverse variations within N-tier architectures, shedding light on the dynamic landscape of software design. We delve into microservices, service-oriented architecture (SOA), and serverless architectures, showcasing how these approaches redefine the traditional N-tier structure to meet evolving demands.
5.1. Multi-N-Tier (Microservices) Architecture
The microservices architecture breaks down an application into small, independent services, each focusing on a specific business capability. Promotes scalability, flexibility, and independent development and deployment.
5.2. Service-Oriented Architecture (SOA)
SOA introduces a service layer where services are designed to provide specific business functions. SOA emphasizes interoperability and reusability of services across different applications.
Service-oriented architecture (SOA) emphasizes reusable, coarse-grained services, often sharing a centralized communication protocol. In contrast, microservices architecture focuses on small, independent services with decentralized data management, enabling agility and scalability through individual service deployment and maintenance.
5.3. Serverless Architecture
A serverless architecture allows developers to build and run applications without managing servers. It automatically scales based on demand, reducing infrastructure management. Developers focus on code, and services are charged based on actual usage, enhancing efficiency and cost-effectiveness.
6. The Significance of Tiers in the Role of a Software Architect
The role of a software architect is greatly influenced by the concept of tiers. These tiers, representing the logical or functional divisions within a system, play a pivotal role in shaping the architect’s responsibilities and decision-making processes.
Tiers offer a structured approach to handling the complexity of software systems. By categorizing components into distinct tiers, architects can better manage and organize the intricate web of functionalities within an application. Architects can scale individual tiers independently, addressing performance bottlenecks and accommodating the evolving needs of the application.
Each tier focuses on specific functionalities, allowing architects to define clear interfaces and interactions between them. As software requirements evolve, architects can modify or extend specific tiers without disrupting the entire system. Whether implementing a one-tier monolithic architecture or a distributed N-tier architecture, architects can choose patterns that align with the specific needs of the application.
By understanding the functional requirements of each tier, architects can ensure that the system architecture aligns with the overarching goals of the business. This alignment is essential for delivering software solutions that not only meet technical standards but also fulfill the strategic needs of the organization.
7. Conclusion
In this article, we learned about the evolution of tiered architectures, from the simplicity of one-tier systems to the complexity of N-tier and microservices architectures. Understanding these architectures is crucial for designing scalable, maintainable, and robust software systems.
