1. Introduction

Virtual memory is a crucial component of modern computer systems that allows them to efficiently manage and use memory resources. One of the most important aspects of virtual memory is its ability to use secondary storage devices, for example, hard disks, as extensions of primary memory.

However, using secondary storage devices can slow down the system’s performance as it takes longer to read and write data to and from them.

To address the issue of slow performance when using secondary storage devices, computer systems employ a technique called “second chance replacement” to manage virtual memory.

In this tutorial, we’ll delve into the second chance replacement algorithm, how it works, its advantages and drawbacks, and some use cases for it.

2. Second Chance Replacement

The second change replacement is also known as clock replacement. The virtual memory systems use it as a page replacement algorithm to determine which pages to replace in primary memory when new pages need to be brought in.

This algorithm is based on the first-in-first-out (FIFO) concept, where the oldest page in primary memory is the first to be replaced. However, it also uses the “second chance” approach to give pages that are still in use a chance to remain in primary memory.

3. How Does Second Chance Replacement Work?

Second-chance replacement is a technique in computer memory management where a reference bit is assigned to each page in memory. When a page is accessed or modified, the reference bit is set to 1. When a page needs to be replaced, the algorithm scans through all pages in memory in a circular manner until it finds a page with a reference bit set to 0.

If all pages in memory have their reference bit set to 1, the algorithm will scan through the list again, but this time it will set the reference bit of each page it encounters to 0 until it finds a page with a reference bit of 0.

When the algorithm finds a page with a reference bit of 0, it gives the page another chance by setting its reference bit to 1 and moving to the next page.

If a page has been previously given a second chance (i.e., its reference bit was set to 1 in the previous scan), it is marked for replacement and gets replaced with a new page that needs to be brought in.

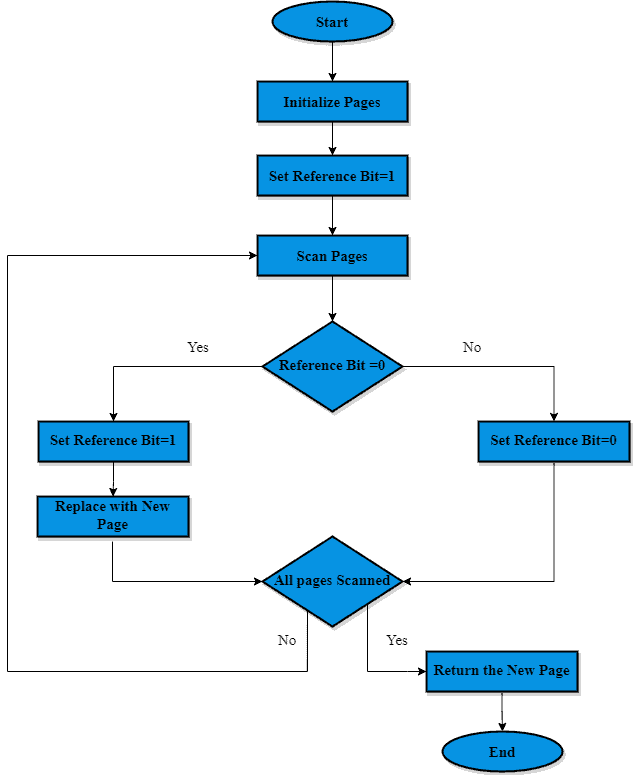

The following flowchart shows how the second chance replacement works:

second chance replacement

4. Advantages and Disadvantages of Second Chance Replacement

Like any other page replacement algorithm, the second chance replacement algorithm has its own set of advantages and disadvantages.

In this section, we’ll explore the pros and cons of it as a page replacement algorithm.

Advantages

Disadvantages

Reduces the number of unnecessary page replacements by giving pages a second chance before replacement.

May cause thrashing in certain situations where the working set of a process is larger than the available primary memory.

Simple and easy to implement with only one reference bit required for each page.

May lead to low memory utilization by keeping infrequently accessed pages in primary memory.

Requires minimal computational resources due to its simplicity.

Not optimal for certain workload patterns, such as those involving a large number of pages accessed in a short amount of time.

5. Use Cases for Second Chance Replacement

In this section, we’ll explore some of the use cases where second-chance replacement may be most effective.

5.1. Low-End Systems

The second chance replacement algorithm may be ideal for low-end systems, such as embedded systems or older computers with limited memory and processing power. This algorithm allows these systems to efficiently manage their memory resources without compromising performance.

5.2. Workloads with Frequent Access Patterns

Workloads with frequent access patterns, for example, interactive applications or web servers, may benefit from this algorithm. By giving frequently accessed pages a second chance before replacement, the algorithm reduces the number of unnecessary page replacements and improves system performance.

5.3. Memory-Constrained Environments

In memory-constrained environments, such as virtualized systems or cloud computing platforms, this algorithm can help improve memory utilization. The algorithm ensures that available memory resources are used effectively by keeping infrequently accessed pages in primary memory.

5.4. Real-Time Systems

Real-time systems require predictable and reliable performance. This algorithm can help improve system performance in real-time systems by reducing the number of page faults and ensuring that frequently accessed pages remain in primary memory.

Overall, the second chance replacement is a versatile page replacement algorithm that can be effective in various scenarios. By understanding its strengths and limitations, system administrators and developers can determine whether it is the optimal choice for their particular use case.

6. Conclusion

In this article, we discussed a second chance replacement as an efficient and versatile page replacement algorithm that effectively manages memory resources in various scenarios.

It’s a valuable tool for system administrators and developers alike since it reduces the number of unnecessary page replacements, improves system performance, and ensures memory resources are used effectively.
