1. Overview

OpenFeign is a declarative REST client that we can use in Spring Boot applications. Let’s assume that we have a REST API secured using OAuth2, and we want to invoke it using OpenFeign. In this situation, we’ll need to provide an access token with OpenFeign.

In this tutorial, we’ll describe how to add OAuth2 support to the OpenFeign client.

2. Service to Service Authentication

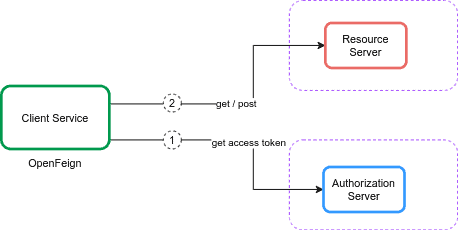

The service to service authentication is a popular topic in API security. We can use mTLS or JWT to provide an authentication mechanism for a REST API. However, the OAuth2 protocol is the defacto solution to protect the APIs. Let’s say we want to call a secure service (server role) using another service (client role). In this scenario, we use the client credential grant type. We usually use client credentials for authentication between two APIs or systems with no end-user. The below figure shows the main actors in this grant type:

openfeign client credential1

In client credentials, the client service obtains an access token from the authorization server using the token endpoint. It then uses the access token to access resources protected by a resource server. The resource server validates the access token, and if valid, serves the request.

2.1. Authorization Server

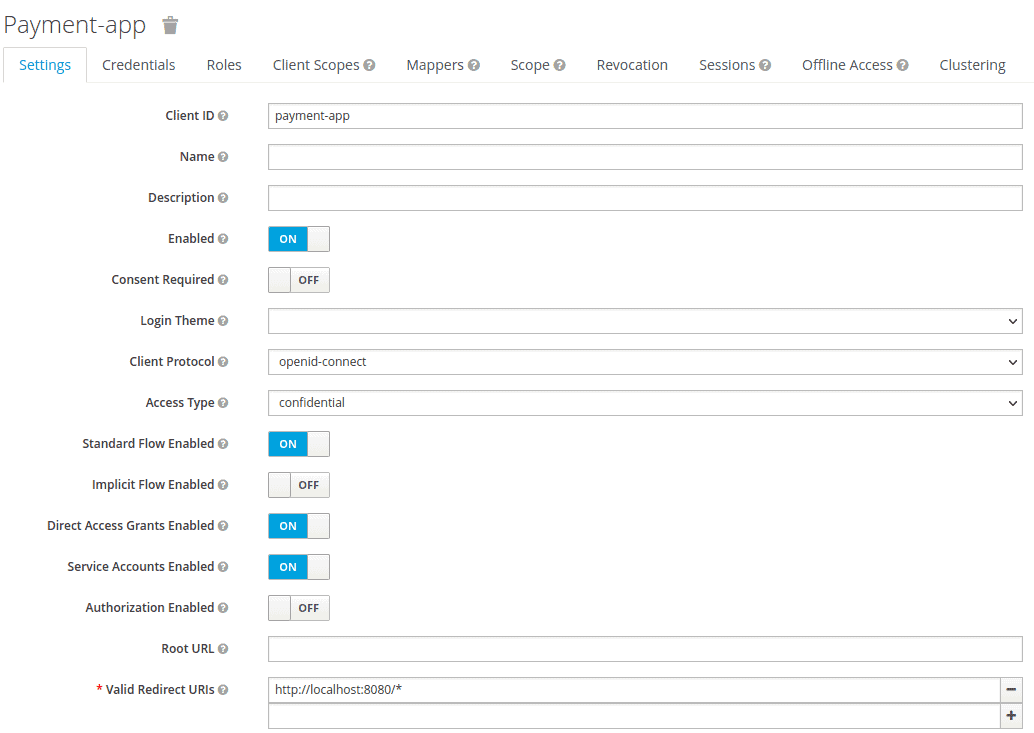

Let’s set up an authorization server for issuing access tokens. To keep things simple for now, we’ll be using Keycloak embedded in a Spring Boot application. Let’s assume that we use the authorization server project available on GitHub. First, we define the payment-app client in realm master in our embedded Keycloak server:

openfeign payment client1

We set the Access Type to credential and enable the Service Accounts Enabled option. Then, we export the realm details as feign-realm.json and set the realm file in our application-feign.yml:

keycloak:
  server:
    contextPath: /auth
    adminUser:
      username: bael-admin
      password: pass
    realmImportFile: feign-realm.json

Now, the authorization server is ready. Finally, we can run the application using the –spring.profiles.active=feign option. Since we’re focusing on the OpenFeign OAuth2 support in this tutorial, we don’t need to dive any deeper into it.

2.2. Resource Server

Now that we’ve configured the authorization server, let’s set up the resource server.** For that, we’ll use the resource server project available on GitHub. First, we add the Payment class as a resource:

public class Payment {

    private String id;
    private double amount;

   // standard getters and setters
}

Then, we declare an API in PaymentController class:

@RestController
public class PaymentController {

    @GetMapping("/payments")
    public List<Payment> getPayments() {
        List<Payment> payments = new ArrayList<>();
        for(int i = 1; i < 6; i++){
            Payment payment = new Payment();
            payment.setId(String.valueOf(i));
            payment.setAmount(2);
            payments.add(payment);
        }
        return payments;
    }

}

The getPayments() API returns a list of payments. Also, we configure the resource server in our application-feign.yml file:

spring:
  security:
    oauth2:
      resourceserver:
        jwt:
          issuer-uri: http://localhost:8083/auth/realms/master

Now, the getPayments() API is secure using the OAuth2 authorization server, and we must provide a valid access token for invoking this API:

curl --location --request POST 'http://localhost:8083/auth/realms/master/protocol/openid-connect/token' \
  --header 'Content-Type: application/x-www-form-urlencoded' \
  --data-urlencode 'client_id=payment-app' \
  --data-urlencode 'client_secret=863e9de4-33d4-4471-b35e-f8d2434385bb' \
  --data-urlencode 'grant_type=client_credentials'

After getting the access token, we set it in the Authorization header of the request:

curl --location --request GET 'http://localhost:8081/resource-server-jwt/payments' \
  --header 'Authorization: Bearer Access_Token'

Now, we want to call the secure API using OpenFeign instead of cURL or Postman.

3. OpenFeign Client

3.1. Dependencies

To use the Spring Cloud OpenFeign for invoking the secure API, we’ll need to add the spring-cloud-starter-openfeign to our pom.xml file:

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-openfeign</artifactId>
    <version>3.1.0</version>
</dependency>

Additionally, we need to add the spring-cloud-dependencies to the pom.xml:

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-dependencies</artifactId>
    <version>2021.0.0</version>
    <type>pom</type>
</dependency>

3.2. Configuration

First, we need to add @EnableFeignClients to our main class:

@SpringBootApplication
@EnableFeignClients
public class ExampleApplication {
    public static void main(String[] args) {
        SpringApplication.run(ExampleApplication.class, args);
    }
}

Then, we define the PaymentClient interface for invoking the getPayments() API. Also, we need to add @FeignClient to our PaymentClient interface:

@FeignClient(
  name = "payment-client",
  url = "http://localhost:8081/resource-server-jwt",
  configuration = OAuthFeignConfig.class)
public interface PaymentClient {

    @RequestMapping(value = "/payments", method = RequestMethod.GET)
    List<Payment> getPayments();
}

We set the url according to the address of the resource server. In this case, the main parameter of the @FeignClient is the configuration attribute that supports OAuth2 for OpenFeign. After that, we define a PaymentController class and inject PaymentClient into it:

@RestController
public class PaymentController {

    private final PaymentClient paymentClient;

    public PaymentController(PaymentClient paymentClient) {
        this.paymentClient = paymentClient;
    }

    @GetMapping("/payments")
    public List<Payment> getPayments() {
        List<Payment> payments = paymentClient.getPayments();
        return payments;
    }
}

4. OAuth2 Support

4.1. Dependencies

To add the OAuth2 support to Spring Cloud OpenFeign, we’ll need to add the spring-security-oauth2-client and spring-boot-starter-security to our pom.xml file:

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-security</artifactId>
    <version>2.6.1</version>
</dependency>
<dependency>
    <groupId>org.springframework.security</groupId>
    <artifactId>spring-security-oauth2-client</artifactId>
    <version>5.6.0</version>
</dependency>

4.2. Configuration

Now, we want to create a configuration. The idea is to get and add an access token to the OpenFeign request. The interceptors can perform this task for every HTTP request/response. Adding interceptors is a useful feature provided by Feign. We’ll use a RequestInterceptor, which injects the OAuth2 access token into the request of the OpenFeign client by adding an Authorization Bearer header. Let’s define the OAuthFeignConfig configuration class and define the requestInterceptor() bean:

@Configuration
public class OAuthFeignConfig {

    public static final String CLIENT_REGISTRATION_ID = "keycloak";

    private final OAuth2AuthorizedClientService oAuth2AuthorizedClientService;
    private final ClientRegistrationRepository clientRegistrationRepository;

    public OAuthFeignConfig(OAuth2AuthorizedClientService oAuth2AuthorizedClientService,
      ClientRegistrationRepository clientRegistrationRepository) {
        this.oAuth2AuthorizedClientService = oAuth2AuthorizedClientService;
        this.clientRegistrationRepository = clientRegistrationRepository;
    }

    @Bean
    public RequestInterceptor requestInterceptor() {
        ClientRegistration clientRegistration = clientRegistrationRepository.findByRegistrationId(CLIENT_REGISTRATION_ID);
        OAuthClientCredentialsFeignManager clientCredentialsFeignManager =
          new OAuthClientCredentialsFeignManager(authorizedClientManager(), clientRegistration);
        return requestTemplate -> {
            requestTemplate.header("Authorization", "Bearer " + clientCredentialsFeignManager.getAccessToken());
        };
    }
}

In the requestInterceptor() bean, we use the ClientRegistration and OAuthClientCredentialsFeignManager classes to register the oauth2 client and get an access token from the authorization server. To do this, we need to define the oauth2 client properties in our application.properties file:

spring.security.oauth2.client.registration.keycloak.authorization-grant-type=client_credentials
spring.security.oauth2.client.registration.keycloak.client-id=payment-app
spring.security.oauth2.client.registration.keycloak.client-secret=863e9de4-33d4-4471-b35e-f8d2434385bb
spring.security.oauth2.client.provider.keycloak.token-uri=http://localhost:8083/auth/realms/master/protocol/openid-connect/token

Let’s create the OAuthClientCredentialsFeignManager class and define the getAccessToken() method:

public String getAccessToken() {
    try {
        OAuth2AuthorizeRequest oAuth2AuthorizeRequest = OAuth2AuthorizeRequest
          .withClientRegistrationId(clientRegistration.getRegistrationId())
          .principal(principal)
          .build();
        OAuth2AuthorizedClient client = manager.authorize(oAuth2AuthorizeRequest);
        if (isNull(client)) {
            throw new IllegalStateException("client credentials flow on " + clientRegistration.getRegistrationId() + " failed, client is null");
        }
        return client.getAccessToken().getTokenValue();
    } catch (Exception exp) {
        logger.error("client credentials error " + exp.getMessage());
    }
    return null;
}

We use OAuth2AuthorizeRequest and OAuth2AuthorizedClient classes for getting the access token from the authorization server. Now for every request, the OpenFeign interceptor manages the oauth2 client and adds the access token to the request.

5. Test

To test the OpenFeign client, let’s create the PaymentClientUnitTest class:

@RunWith(SpringRunner.class)
@SpringBootTest
public class PaymentClientUnitTest {

    @Autowired
    private PaymentClient paymentClient;

    @Test
    public void whenGetPayment_thenListPayments() {
        List<Payment> payments = paymentClient.getPayments();
        assertFalse(payments.isEmpty());
    }
}

In this test, we call the getPayments() API. The PaymentClient under the hood connects to the OAuth2 client and gets an access token using the interceptor.

6. Conclusion

In this article, we set up the required environment for invoking a secure API. Then, we configure the OpenFeign to call the secure API through a practical example. For this, we add and configure the interceptor to OpenFeign. The interceptor manages the OAuth2 client and adds the access token to the request.

As always, the full source code of this tutorial is available over on GitHub. Additionally, the resource and authorization server source code is available over on GitHub.
