1. Overview

Spring Cloud Gateway is an intelligent proxy service often used in microservices. It transparently centralizes requests in a single entry point and routes them to the proper service. One of its most interesting features is the concept of filters (WebFilter or GatewayFilter).

WebFilter, together with Predicate factories, incorporate the complete routing mechanism. Spring Cloud Gateway provides many built-in WebFilter factories that allow interacting with the HTTP requests before reaching the proxied service and the HTTP responses before delivering the result to the client. It is also possible to implement custom filters.

In this tutorial, we’ll focus on the built-in WebFilter factories included in the project and how to use them in advanced use cases.

2. WebFilter Factories

WebFilter (or GatewayFilter) factories allow modifying the inbound HTTP requests and outbound HTTP responses. In this sense, it offers a set of interesting functionalities to apply before and after interacting with the downstream services.

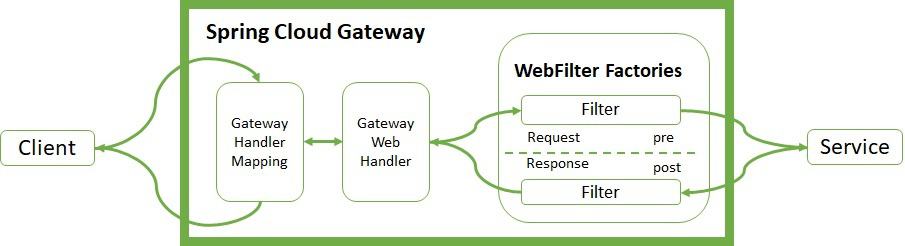

Spring Cloud Gateway WebFilter Factories Architecture

The Handler Mapping manages the client’s request. It checks whether it matches some configured route. Then, it sends the request to the Web Handler to execute the specific filter chain for this route.

The dotted line splits the logic between pre- and post-filter logic. The incoming filters run before the proxy request. The output filters enter into action when they receive the proxy response. Filters provide mechanisms to modify the process in between.

3. Implementing WebFilter Factories

Let’s review the most important WebFilter factories incorporated in the Spring Cloud Gateway project. There are two ways to implement them, using YAML or Java DSL.

Let’s look at examples of both.

3.1. HTTP Request

The built-in WebFilter factories allow interacting with the headers and parameters of the HTTP request. We can add (AddRequestHeader), patch(AddRequestHeadersIfNotPresent from version 4.0*)*, map (MapRequestHeader), set or replace (SetRequestHeader), and remove (RemoveRequestHeader) header values and send them to the proxied service.

The original host header can also be kept (PreserveHostHeader).

In the same way, we can add (AddRequestParameter) and remove (RemoveRequestParameter) parameters to be processed by the downstream service:

- id: add_request_header_route
  uri: https://httpbin.org
  predicates:
  - Path=/get/**
  filters:
  - AddRequestHeader=My-Header-Good,Good
  - AddRequestHeader=My-Header-Remove,Remove
  - AddRequestHeadersIfNotPresent=My-Header-Absent:Absent
  - AddRequestParameter=var, good
  - AddRequestParameter=var2, remove
  - MapRequestHeader=My-Header-Good, My-Header-Bad
  - MapRequestHeader=My-Header-Set, My-Header-Bad
  - SetRequestHeader=My-Header-Set, Set
  - RemoveRequestHeader=My-Header-Remove
  - RemoveRequestParameter=var2

Let’s check if everything works as expected. For that, we’ll use curl and the publicly available httpbin.org:

$ curl http://localhost:8080/get
{
  "args": {
    "var": "good"
  },
  "headers": {
    "Host": "localhost",
    "My-Header-Bad": "Good",
    "My-Header-Good": "Good",
    "My-Header-Set": "Set",
  },
  "origin": "127.0.0.1, 90.171.125.86",
  "url": "https://localhost:8080/get?var=good"
}

We can see the curl response as a consequence of the request filters configured. They add My-Header-Good with value Good and map its content to My-Header-Bad. They remove My-Header-Remove and set a new value to My-Header-Set. In the args and url sections, we can see a new parameter var added. Furthermore, the last filter removes the var2 parameter.

In addition, we can modify the request body before reaching the proxied service. This filter can only be configured using the Java DSL notation. The snippet below just uppercases the content of the response body:

@Bean
public RouteLocator routes(RouteLocatorBuilder builder) {
     return builder.routes()
       .route("modify_request_body", r -> r.path("/post/**")
         .filters(f -> f.modifyRequestBody(
           String.class, Hello.class, MediaType.APPLICATION_JSON_VALUE,
           (exchange, s) -> Mono.just(new Hello(s.toUpperCase()))))
         .uri("https://httpbin.org"))
       .build();
}

To test the snippet, let’s execute curl with the -d option to include the body “Content”:

$ curl -X POST "http://localhost:8080/post" -i -d "Content"
"data": "{\"message\":\"CONTENT\"}",
"json": {
    "message": "CONTENT"
}

We can see that the content of the body is now converted to uppercase – CONTENT – as a result of the filter.

3.2. HTTP Response

Likewise, we can modify response headers by using add (AddResponseHeader), set or replace (SetResponseHeader), remove (RemoveResponseHeader) and rewrite (RewriteResponseHeader).

Another functionality over the response is to dedupe (DedupeResponseHeader) to overwrite strategies and avoid duplication on them. We can get rid of backend-specific details regarding version, location, and host by using another built-in factory (RemoveLocationResponseHeader).

After version 4.0, we can remove (RemoveJsonAttributesResponseBody) multiple attributes from the JSON body content.  By default, it just removes the attributes at the root level. Adding a true attribute at the end will remove attributes at any level of the JSON structure.

Let’s see a complete example:

- id: response_header_route
  uri: https://httpbin.org
  predicates:
  - Path=/header/post/**
  filters:
  - DedupeResponseHeader=Access-Control-Allow-Credentials Access-Control-Allow-Origin
  - SetResponseHeader=My-Header-Set, Set
  - RemoveResponseHeader=My-Header-Remove
  - RewriteResponseHeader=My-Header-Rewrite, password=[^&]+, password=***
  - RewriteLocationResponseHeader=AS_IN_REQUEST, Location, ,
  - RemoveJsonAttributesResponseBody=form,Accept,true
  - AddResponseHeader=My-Header-Good,Good
  - AddResponseHeader=My-Header-Set,Good
  - AddResponseHeader=My-Header-Remove,Remove
  - AddResponseHeader=My-Header-Rewrite,password=12345678
  - StripPrefix=1

Let’s use curl to display the response headers:

$ curl -X POST "http://localhost:8080/header/post" -s -o /dev/null -D -
HTTP/1.1 200 OK
My-Header-Good: Good
Access-Control-Allow-Origin: *
Access-Control-Allow-Credentials: true
My-Header-Rewrite: password=***
My-Header-Set: Set

Similarly to the HTTP request, we can modify the response body. For this example, we overwrite the body of the PUT response:

@Bean
public RouteLocator responseRoutes(RouteLocatorBuilder builder) {
    return builder.routes()
      .route("modify_response_body", r -> r.path("/put/**")
        .filters(f -> f.modifyResponseBody(
          String.class, Hello.class, MediaType.APPLICATION_JSON_VALUE,
          (exchange, s) -> Mono.just(new Hello("New Body"))))
        .uri("https://httpbin.org"))
      .build();
}

Let’s use the PUT endpoint to test the functionality:

$ curl -X PUT "http://localhost:8080/put" -i -d "CONTENT"
{"message":"New Body"}

3.3. Path

One of the features provided with the built-in WebFilter factories is the interaction with the paths configured by the client. It is possible to set a different path (SetPath), rewrite (RewritePath), add a prefix (PrefixPath), and strip (StripPrefix) to extract only parts of it.

We should note that the filters are executed in order based on their positions in the YAML file:

- id: path_route
  uri: https://httpbin.org
  predicates:
  - Path=/new/post/**
  filters:
  - RewritePath=/new(?<segment>/?.*), $\{segment}
  - SetPath=/post

Both filters remove the subpath /new before reaching the proxied service.

Let’s test this with curl:

$ curl -X POST "http://localhost:8080/new/post" -i
"X-Forwarded-Prefix": "/new"
"url": "https://localhost:8080/post"

We could also use the StripPrefix factory. With StripPrefix=1, we can get rid of the first subpath when contacting the downstream service.

RedirectTo takes two parameters: status and URL. The status must be a series of 300 redirection HTTP code and the URL a valid one. SetStatus takes one parameter status that can be an HTTP code or its string representation:

- id: redirect_route
  uri: https://httpbin.org
  predicates:
  - Path=/fake/post/**
  filters:
  - RedirectTo=302, https://httpbin.org
- id: status_route
  uri: https://httpbin.org
  predicates:
  - Path=/delete/**
  filters:
  - SetStatus=401

The first filter acts over the /fake/post path, and the client is redirected to https://httpbin.org with an HTTP status 302:

$ curl -X POST "http://localhost:8080/fake/post" -i
HTTP/1.1 302 Found
Location: https://httpbin.org

The second filter detects the /delete path, and an HTTP status 401 is set:

$ curl -X DELETE "http://localhost:8080/delete" -i
HTTP/1.1 401 Unauthorized

3.5. Request Size Limit

Finally, we can restrict the size limit of the request (RequestSize).

If the request size is beyond the limit, the gateway rejects access to the service:

- id: size_route
  uri: https://httpbin.org
  predicates:
  - Path=/anything
  filters:
  - name: RequestSize
    args:
       maxSize: 5000000

4. Advanced Use Cases

Spring Cloud Gateway offers other advanced WebFilter factories to support baseline functionalities for the microservices pattern.

4.1. Circuit Breaker

Spring Cloud Gateway has a built-in WebFilter factory for Circuit Breaker capability. The factory permits different fallback strategies and Java DSL route configuration:

- id: circuitbreaker_route
  uri: https://httpbin.org
  predicates:
  - Path=/status/504
  filters:
  - name: CircuitBreaker
    args:
      name: myCircuitBreaker
      fallbackUri: forward:/anything
  - RewritePath=/status/504, /anything

For the configuration of the Circuit Breaker, we used Resilience4J by adding the spring-cloud-starter-circuitbreaker-reactor-resilience4j dependency:

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-circuitbreaker-reactor-resilience4j</artifactId>
</dependency>

Again, we can test the functionality using curl:

$ curl http://localhost:8080/status/504
"url": "https://localhost:8080/anything"

4.2. Retry

Another advanced feature allows the client to retry access when something happens with proxied services. It takes several parameters, such as the number of retries, the HTTP status codes (statuses) and methods that should be retried, series, exceptions, and backoff intervals to wait after each retry:

- id: retry_test
  uri: https://httpbin.org
  predicates:
  - Path=/status/502
  filters:
  - name: Retry
    args:
       retries: 3
       statuses: BAD_GATEWAY
       methods: GET,POST
       backoff:
          firstBackoff: 10ms
          maxBackoff: 50ms
          factor: 2
          basedOnPreviousValue: false

When the client reaches /status/502 (Bad Gateway), the filter retries three times, waiting for the backoff intervals configured after each execution.

Let’s see how it works:

$ curl http://localhost:8080/status/502

At the same time, we need to check the Gateway logs in the server:

Mapping [Exchange: GET http://localhost:8080/status/502] to Route{id='retry_test', ...}
Handler is being applied: {uri=https://httpbin.org/status/502, method=GET}
Received last HTTP packet
Handler is being applied: {uri=https://httpbin.org/status/502, method=GET}
Received last HTTP packet
Handler is being applied: {uri=https://httpbin.org/status/502, method=GET}
Received last HTTP packet

The filter retries three times with this backoff for methods GET and POST when the gateway receives status 502.

4.3. Save Session and Secure Headers

The SecureHeader factory adds HTTP security headers to the response. Similarly, SaveSession is of particular importance when used with Spring Session and Spring Security:

filters:
- SaveSession

This filter stores the session state before making the forwarded call.

4.4. Request Rate Limiter

The RequestRateLimiter factory determines if the request can proceed.  If not, it returns an HTTP code status 429 – Too Many Requests. It uses different parameters and resolvers to specify the rate limiter.

The RedisRateLimiter uses the well-known Redis database to check the number of tokens the bucket can keep.

It requires the following dependency:

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-data-redis-reactive</artifactId>
 </dependency>

Consequently, it also needs the configuration of Spring Redis:

spring:
  redis:
    host: localhost
    port: 6379

The filter has several properties. The first argument, replenishRate, is the number of requests per second allowed. The second argument, burstCapacity, is the maximum number of requests in a single second. The third parameter, requestedTokens, is how many tokens the request costs. Let’s see an example implementation:

- id: request_rate_limiter
  uri: https://httpbin.org
  predicates:
  - Path=/redis/get/**
  filters:
  - StripPrefix=1
  - name: RequestRateLimiter
    args:
      redis-rate-limiter.replenishRate: 10
      redis-rate-limiter.burstCapacity: 5
      redis-rate-limiter.requestedTokens: 1

Let’s use curl to test the filter. Beforehand, we should remember to start a Redis instance, for example using Docker:

$ curl "http://localhost:8080/redis/get" -i
HTTP/1.1 200 OK
X-RateLimit-Remaining: 4
X-RateLimit-Requested-Tokens: 1
X-RateLimit-Burst-Capacity: 5
X-RateLimit-Replenish-Rate: 10

Once the remaining rate limit reaches zero, the gateway raises HTTP code 429. For testing the behavior, we can use the unit tests.

We start an Embedded Redis Server and run RepeatedTests in parallel. Once the bucket reaches the limit, the error begins to display:

00:57:48.263 [main] INFO  c.b.s.w.RedisWebFilterFactoriesLiveTest - Received: status->200, reason->OK, remaining->[4]
00:57:48.394 [main] INFO  c.b.s.w.RedisWebFilterFactoriesLiveTest - Received: status->200, reason->OK, remaining->[3]
00:57:48.530 [main] INFO  c.b.s.w.RedisWebFilterFactoriesLiveTest - Received: status->200, reason->OK, remaining->[2]
00:57:48.667 [main] INFO  c.b.s.w.RedisWebFilterFactoriesLiveTest - Received: status->200, reason->OK, remaining->[1]
00:57:48.826 [main] INFO  c.b.s.w.RedisWebFilterFactoriesLiveTest - Received: status->200, reason->OK, remaining->[0]
00:57:48.851 [main] INFO  c.b.s.w.RedisWebFilterFactoriesLiveTest - Received: status->429, reason->Too Many Requests, remaining->[0]
00:57:48.894 [main] INFO  c.b.s.w.RedisWebFilterFactoriesLiveTest - Received: status->429, reason->Too Many Requests, remaining->[0]
00:57:49.135 [main] INFO  c.b.s.w.RedisWebFilterFactoriesLiveTest - Received: status->200, reason->OK, remaining->[4]

4.5. Cache Support

From version 4.0, Spring Cloud Gateway provides cache filters for both request (CacheRequestBody) and response (LocalCacheResponseBody).

To configure the CacheRequestBody filter, we just need to set the type of body class to convert it to:

- id: cache_request_body_route
  uri: https://httpbin.org
  predicates:
  - Path=/cache/post/**
  filters:
  - StripPrefix=1
  - name: CacheRequestBody
    args:
      bodyClass: java.lang.String

The cached content will be available in the ServerWebExchange.getAttributes() under a key defined in ServerWebExchangeUtils.CACHED_REQUEST_BODY_ATTR to use it in a later filter.

Before configuring the LocalCacheResponseBody filter, we need to add the spring-boot-starter-cache and caffeine dependencies or other Spring Cache implementations:

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-cache</artifactId>
</dependency>
<dependency>
    <groupId>com.github.ben-manes.caffeine</groupId>
    <artifactId>caffeine</artifactId>
</dependency>

We can activate this cache filter globally by setting the following property spring.cloud.gateway.filter.local-response-cache.enabled to true. It provides two more properties timeToLive and size. The property timeToLive sets the time to expire a cache entry. The property size sets the maximum size of the cache to evict entries.

spring:
  cloud:
    gateway:
      filter:
        local-response-cache:
          enabled: true
          timeToLive: 20m
          size: 6MB

We can also override the global configuration by configuring the filter per route. The route configuration accepts two parameters. The first parameter will override the time to expire a cache entry. The second parameter will override the maximum size of the cache to evict entries for this route.

- id: cache_response_body_route
  uri: https://httpbin.org
  predicates:
    - Path=/cache/get/**
  filters:
    - StripPrefix=1
    - LocalResponseCache=10s,20MB

After we visit this path, we will find a response header Cache-Control with the value max-age=10.

5. Conclusion

In this tutorial, we covered Spring Cloud Gateway’s WebFilter factories. We saw how to interact with the requests and responses from the client before and after executing the proxied service.
