二叉树中第 N 层的节点数

1. Introduction

A binary tree is a hierarchical data structure in which each node has at most two children. This tutorial will show how to calculate the binary tree level and the number of nodes. We’ll also examine the relationship between the tree level and the number of nodes.

2. Binary Tree Level

In a binary tree, each node has 3 elements: a data element to hold a data value, and two children pointers to point its left and right children:

TreeNode:
    int data // The data stored in the node
    TreeNode left // Pointer to the left child
    TreeNode right // Pointer to the right child

The topmost node of a binary tree is the root node. The level of a node is the number of edges along the unique path between it and the root node. Therefore, the root node has a level of 0. If it has children, both of them have a level of 1.

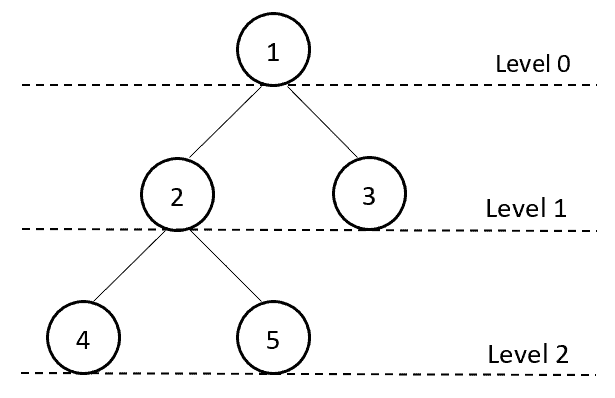

The level of a binary tree is the highest level number among all nodes. For example, we can use 5 nodes to construct a binary tree with a level number of 2:

tree 5nodes big

3. Tree Level and Number of Nodes Calculation

To calculate the level of a binary tree, we can traverse the tree level-by-level. We start with the root node as level 0. Then we visit every node on a level before going to another level. For example, the level-by-level traversal sequence of the above example tree is 1, 2, 3, 4, 5.

The level-by-level binary tree traversal is also a breadth-first search (BFS) approach. To achieve this traversal, we can use a queue data structure to ensure the order of traversal.

Each element of the queue contains two values, the current tree node and the level number of the current tree node:

LevelNode:
    TreeNode node // The tree node
    int level // The level of this node in the tree

After the traversal, the maximum level number will be the tree’s level number. We can also use a counter to count number of nodes during the traversal:

algorithm countTreeLevelAndNodes(root):
    // INPUT
    //    root = the root node of the binary tree
    // OUTPUT
    //    The level of the binary tree and the total number of nodes

    level <- 0
    total <- 0

    create an empty queue Q
    add (root, 0) to Q // Adding root node with level 0

    while Q is not empty:
        remove an element e from Q
        level <- max(level, e.level)
        total <- total + 1

        if e.node.left is not null:
            add (e.node.left, e.level + 1) to Q
        if e.node.right is not null:
            add (e.node.right, e.level + 1) to Q

    return (level, total)

In this algorithm, we start with the root node. First, we put the root node and its level number into the queue . Then we use a loop to traverse all the tree nodes by their levels.

In each iteration, we increase the current tree node’s level by 1 and associate it with the node’s left and right children. During the traversal, we record the maximum level number. After we visit all the tree nodes, the maximum value is then the binary tree’s level.

If the binary tree contains nodes, the overall run time of this algorithm is O(n) since we visit each node only once.

4. Minimum and Maximum Number of Nodes

We can use the algorithm above to calculate the exact number of nodes of a binary tree and its level number. Furthermore, we can determine the minimum and a maximum number of nodes for a binary tree with level with theoretical analysis.

4.1. Minimum Number of Nodes

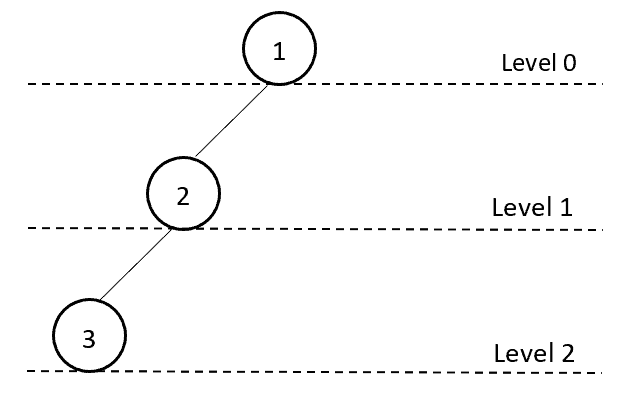

It’s easy to see that we need at least one node for each level to construct a binary tree with level . Therefore, the minimum number of nodes of a binary tree with level $\textbf{\textit{n}}$ is $\textbf{\textit{n}+1}$ . This binary tree behaves like a linked list data structure:

tree min big

We can conclude the minimum number of nodes with the following theorem:

Theorem 1. Let be a binary tree with level $(n \ge 0)$ . Then, contains at least nodes.

4.2. Maximum Number of Nodes

To construct a binary tree of level with the maximum number of nodes, we need to make sure all the internal nodes have two children. In addition, all the leaf nodes must be at the level .

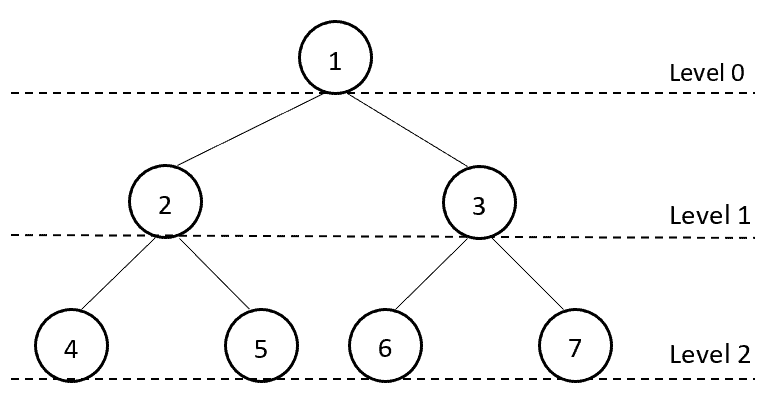

For example, at level 0, we only have the root node. At level 1, we have 2 nodes that are the children of the root. Similarly, we have 4 nodes at level 2 who are the children of the nodes in level 1:

tree max big

Based on this observation, we can see that each level doubles the number of nodes from its previous level. This is because every internal node has two children. Therefore, the maximum number of nodes of a level $\textbf{\textit{n}}$ binary tree is $\bf{1 + 2 + 4 + ... + 2^\textbf{\textit{n}} = 2^{\textbf{\textit{n}}+1} - 1}$ . We also call this type of binary tree a full binary tree.

We can conclude the maximum number of nodes with the following theorem:

Theorem 2. Let be a binary tree with level $(n \ge 0)$ . Then contains at most $2^{n+1} - 1$ nodes.

5. Proof by Induction

We can also use induction to prove Theorem 2. For the base case, where n=0 , a binary tree of level 0 is just a single root node without any children. Also, when n=0 , we have $2^{0+1} - 1 = 1$ . Therefore, the base case satisfies the induction hypothesis:

Let be a binary tree with level $(k \ge 0)$ . Then contains at most $2^{k+1} - 1$ nodes.

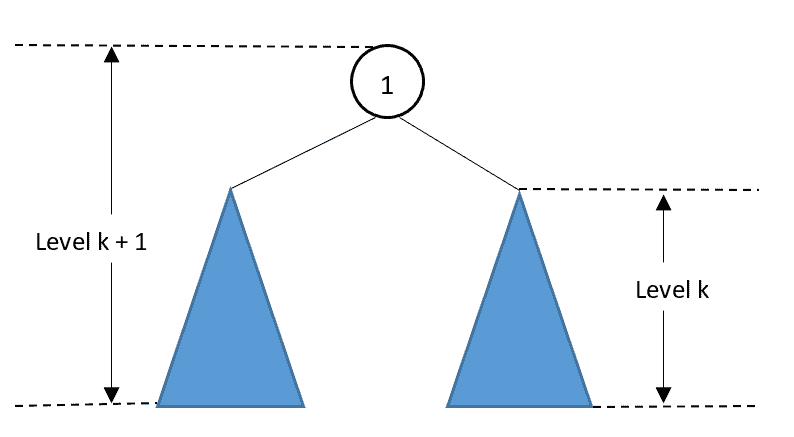

In the induction step, let be a binary tree of level k+1 . For the root node of , its right subtree and left subtree both have level :

tree induction big

The total number of nodes of is the sum of its two subtrees and the root node. Therefore, contains at most $(2^{k+1} - 1) + (2^{k+1} - 1) + 1 = 2^{k+2} - 1$ nodes. The hypothesis holds for k+1 , and so the theorem is proved.

6. Conclusion

This article showed how to calculate the level and number of nodes for a binary tree. We also provided theoretical results on the minimum and the maximum number of nodes for a binary tree of level . In the end, we used induction to prove that the maximum number of nodes for a level binary tree is $2^{n+1} - 1}$ .
