1. Overview

In this tutorial, we’ll discuss two popular concepts in radio frequency technology: baseband and broadband.

Furthermore, we’ll explore the key differences between them.

2. Introduction to Baseband

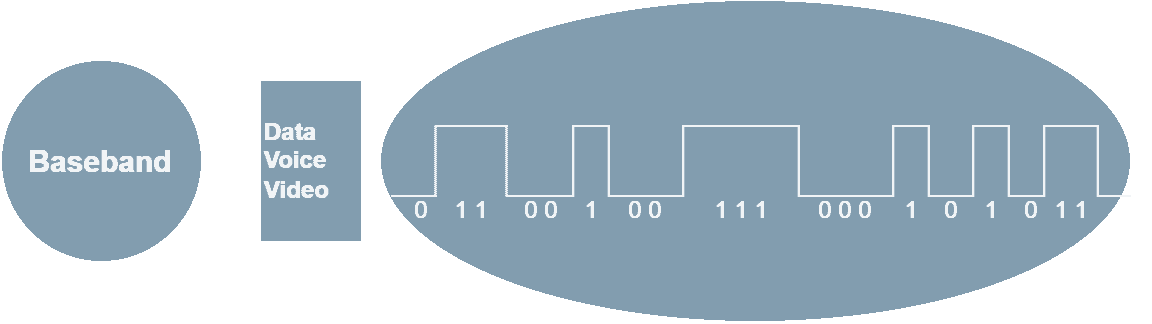

A baseband is a radio frequency (RF) signal converted to a digital form. Additionally, sometimes, we use the term baseband to describe a group of frequencies used for data transmission:

Baseband-1

Baseband signals often travel over copper wires or fiber-optic cables. This is why fiber-optic cables are sometimes called baseband wires.

We first convert data sent over an RF to a baseband signal. Furthermore, we modulate or convert the baseband signal to a different frequency. In this stage, we need a modulator to transform the baseband signal into very high frequency (VHF) or ultra-high frequency (UHF) signals. Next, television channels receive VHF or UHF in order to show the baseband signal on a standard television set.

Furthermore, a wireless network sends the baseband signal through the air. At the other end of the network, we again convert the baseband signal back to digital data. Additionally, a baseband channel is a single communication channel that carries data from one device to another. Likewise, a baseband digital signal is a single stream of binary data.

It allows several devices connected to a network to interact by sending and receiving data on a single communication channel shared by all the devices. Hence, it helps in utilizing the channel’s full bandwidth. Furthermore, we can transmit or receive data at any given time. Therefore, all the devices in the network must be able to understand the signal correctly.

Time-division multiplexing enables the sharing of the same medium. However, we can’t use frequency division multiplexing for the baseband. Ethernet utilizes baseband for LAN. Additionally, we utilize baseband channels in PBX systems.

3. Introduction to Broadband

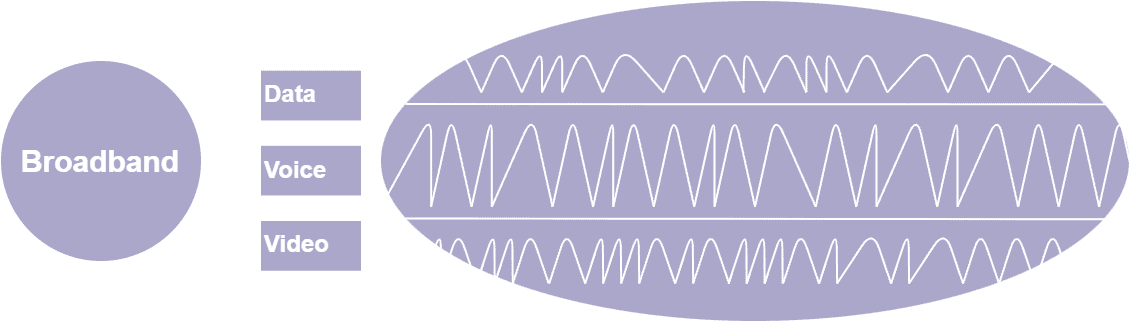

A broadband RF signal has a wider bandwidth than a baseband signal. Furthermore, we often use broadband RF signals for carrying analog voice and video signals. Additionally, it’s any type of radio frequency (RF) signal with a wider bandwidth than a baseband signal:

Broadband

As a broadband signal has a wider bandwidth, it can carry more information than a comparable baseband signal. Furthermore, we convert broadband RF signals to baseband signals when transmitting to a traditional telephone line. Additionally, the exact process applies when we convert a baseband signal to a broadband signal that can be transmitted through an RF network.

To minimize the impact of outside noise, broadband systems employ modulation methods. Furthermore, broadband transmission involves multiple-channel unidirectional transmission utilizing a mix of phase and amplitude modulation.

Using broadband technology, we can send data across vast distances using overhead and underground power lines. Additionally, it’s necessary to build a satellite dish on which we can transmit data from space through a satellite circling the Earth. Even in the most isolated regions, it offers broad reachability.

Furthermore, we can avail Internet connectivity using telephone cables. Additionally, we need a DSL modem to establish an Internet connection. Additionally, the DSL modem receives the signal from an Internet service provider (ISP) over the telephone line. Furthermore, the modem receives the signal, which transforms it into the signal required for Internet access.

In order to transport data at a remarkable speed, we need a fiber-optic cable. Additionally, fiber-optic cables are weather-resistant and less expensive to maintain.

This form of connectivity to the Internet makes use of the cable television infrastructure. Furthermore, it comprises a modem installed within the user’s home and a coaxial cable that connects the modem to the cable modem termination system (CMTS) housed inside the ISP’s premises. Additionally, it operates using a coaxial wire to link the modem to the CMTS.

The main purpose of broadband is to provide high-speed internet access. Therefore, the utilization of bandwidth is higher than the baseband. Additionally, it gives an accurate measurement of the data rate.

4. Differences

At this point, we know the basics of baseband and broadband technologies. Let’s look at the core differences between them:

Baseband

Broadband

Communication is bidirectional

Communication is unidirectional

Uses digital signals

Uses analog signals

Signals can be sent for short distances

Signals can be sent for long distances

Works with bus topology

Works with tree and bus topology

In order to improve the strength of signals, repeaters are utilized

In order to improve the strength of signals, amplifiers are utilized

Capacity of frequency is less than 100 kHz

Bandwidth capacity is higher than 100 kHz

Signals are sent and received on the same channel

Two distinct channels are required to deliver and receive signals

Signals are sent over copper wires or fiber-optic cables

Signals are sent over the air through an RF network

Best suited for wired networks

Best suited for wireless networks

Supports time division multiplexing

Supports frequency division multiplexing

The impedance of baseband transmission is 50 ohms

A 70-ohm impedance is used for broadband transmission

Installation and maintenance are both simple

Installation and maintenance are challenging

Use in Ethernet

Use in telephone networks

5. Conclusion

In this tutorial, we discussed two popular concepts in radio frequency technology: baseband and broadband.

Furthermore, we presented the key differences between them.
