1. Introduction
Virtualization and containerization are the two most frequently used mechanisms to host applications in a computer system. Virtualization uses the notion of a virtual machine as the fundamental unit. Containerization, on the other hand, uses the concept of a container. Both of these technologies play a crucial role and have their merits and demerits.
In this article, we’ll introduce both these technologies and compare some of the characteristics.
2. Virtualization
Virtualization helps us to create software-based or virtual versions of a computer resource. These computer resources can include computing devices, storage, networks, servers, or even applications.
It allows organizations to partition a single physical computer or server into several virtual machines (VM). Each VM can then interact independently and run different operating systems or applications while sharing the resources of a single computer.
2.1. How Does Virtualization Work?

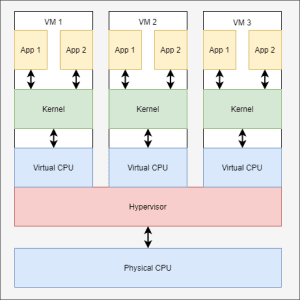

Hypervisor software facilitates virtualization. A hypervisor sits on top of an operating system. But, we can also have hypervisors that are installed directly onto the hardware. Hypervisors take physical resources and divide them up so that virtual environments can use them.
When a user or program issues an instruction to the VM that requires additional resources from the physical environment, the hypervisor relays the request to the physical system and caches the changes. There are two types of hypervisors, Type 1 (Bare Metal) and Type 2 (Hosted).
The main feature of virtualization is that it lets you run different operating systems on the same hardware. Each virtual machine’s operating system (guest OS) does all the necessary start-up activities such as bootstrapping, loading the kernel, and so on. However, each guest OS is controlled through elevated security measures so that they don’t acquire full access to the underlying OS.
3. Containerization
Containerization is a lightweight alternative to virtualization. This involves encapsulating an application in a container with its own operating environment. Thus, instead of installing an OS for each virtual machine, containers use the host OS.
3.1. How Does Containerization Work?
Each container is an executable package of software that runs on top of a host OS. A host can support many containers concurrently. For example, in a microservice architecture environment, this set up works as all containers run on the minimal, resource-isolated process that others can’t access.

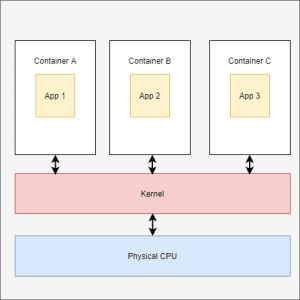

The preceding diagram demonstrates the layout of containerized architecture. We can consider a container as the top layer of multilayered cake:
- At the bottom of the layer, there are physical infrastructures such as CPU, disk storage, and network interfaces
- Above that, there is the host OS and its kernel. The kernel acts the bridge between the software of the OS and the hardware resources
- The container engine and its minimal guest OS sits on top of the host OS
- At the very top, there are binaries, libraries for each application and the apps that run on their isolated user spaces
Containerization evolved from a Linux feature known as cgroups. It’s a feature for isolating and controlling resource usage for an operating system process.
For example, it defines the amount of CPU and RAM or the number of threads that a process can entitle to access within the Linux kernel. cgroups later became Linux Containers (LXC) with more advanced features for namespace isolation of components, such as routing tables and file systems.
4. Comparison
Let’s summarise the comparison between virtualization and containerization on various aspects:
Area
Virtualization
Containerization
Isolation
Provides complete isolation from the host operating system and the other VMs
Typically provides lightweight isolation from the host and other containers, but doesn’t provide as strong a security boundary as a VM
Operating System
Runs a complete operating system including the kernel, thus requiring more system resources such as CPU, memory, and storage
Runs the user-mode portion of an operating system, and can be tailored to contain just the needed services for your app using fewer system resources
Guest compatibility
Runs just about any operating system inside the virtual machine
Runs on the same operating system version as the host
Deployment
Deploy individual VMs by using Hypervisor software
Deploy individual containers by using Docker or deploy multiple containers by using an orchestrator such as Kubernetes
Persistent storage
Use a Virtual Hard Disk (VHD) for local storage for a single VM or a Server Message Block (SMB) file share for storage shared by multiple servers
Use local disks for local storage for a single node or SMB for storage shared by multiple nodes or servers
Load balancing
Virtual machine load balancing is done by running VMs in other servers in a failover cluster
An orchestrator can automatically start or stop containers on cluster nodes to manage changes in load and availability.
Networking
Uses virtual network adapters
Uses an isolated view of a virtual network adapter. Thus, provides a little less virtualization
5. Conclusion
In this tutorial, we talked about virtualization and containerization.
At first, we introduced virtualization and discussed how it works. We then moved to the concepts of containerization and provided an overview of how it works.
We concluded the article by comparing several aspects of virtualization and containerization.
